Left Front of Engine Harness Routing




Harness Routing Views

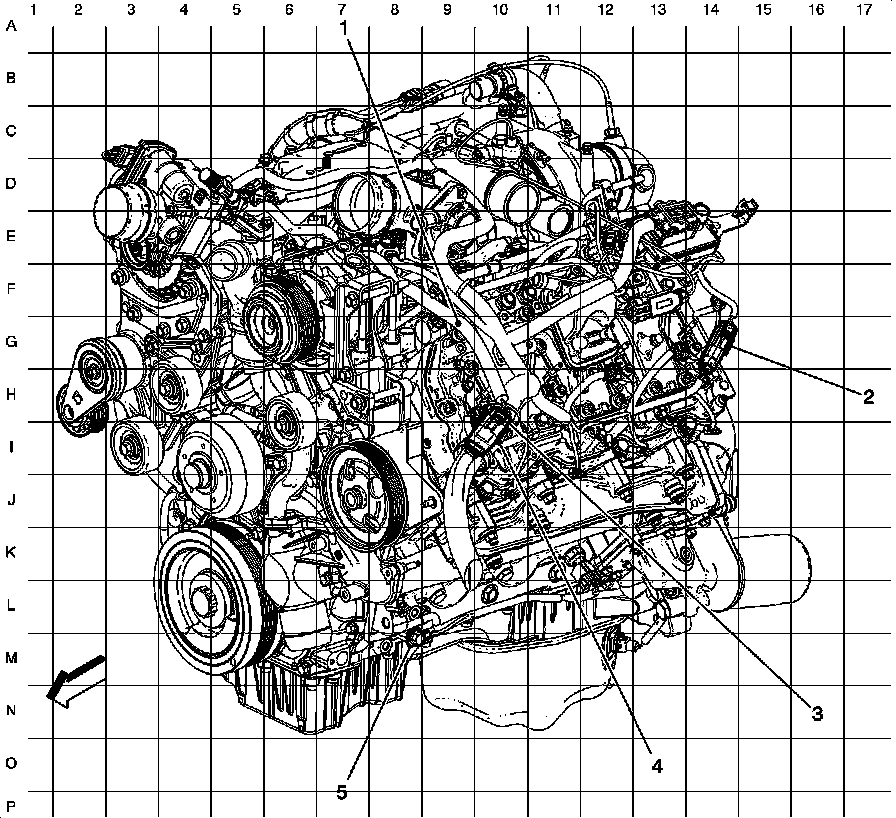

Left Front of Engine Harness Routing (LGH)





1 - J164

2 - X112

3 - X110

4 - J160

5 - G110
