Glow Plug Control Module (GPCM) X2

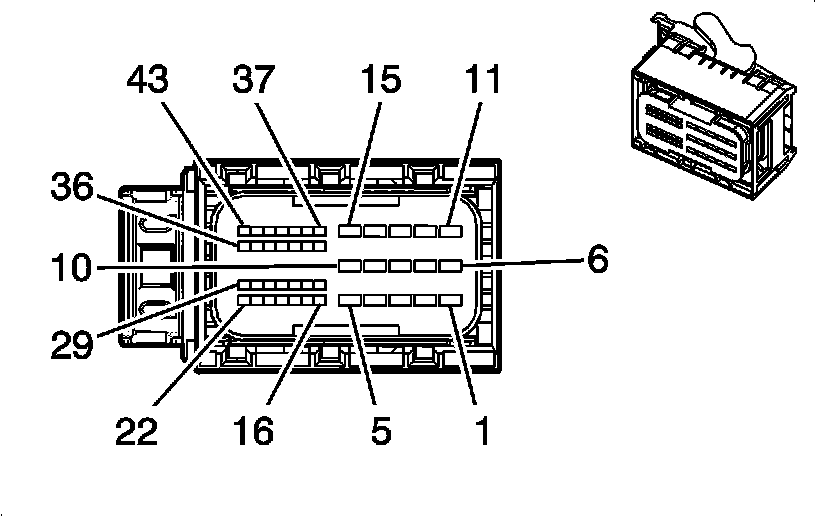

Component Connector End Views

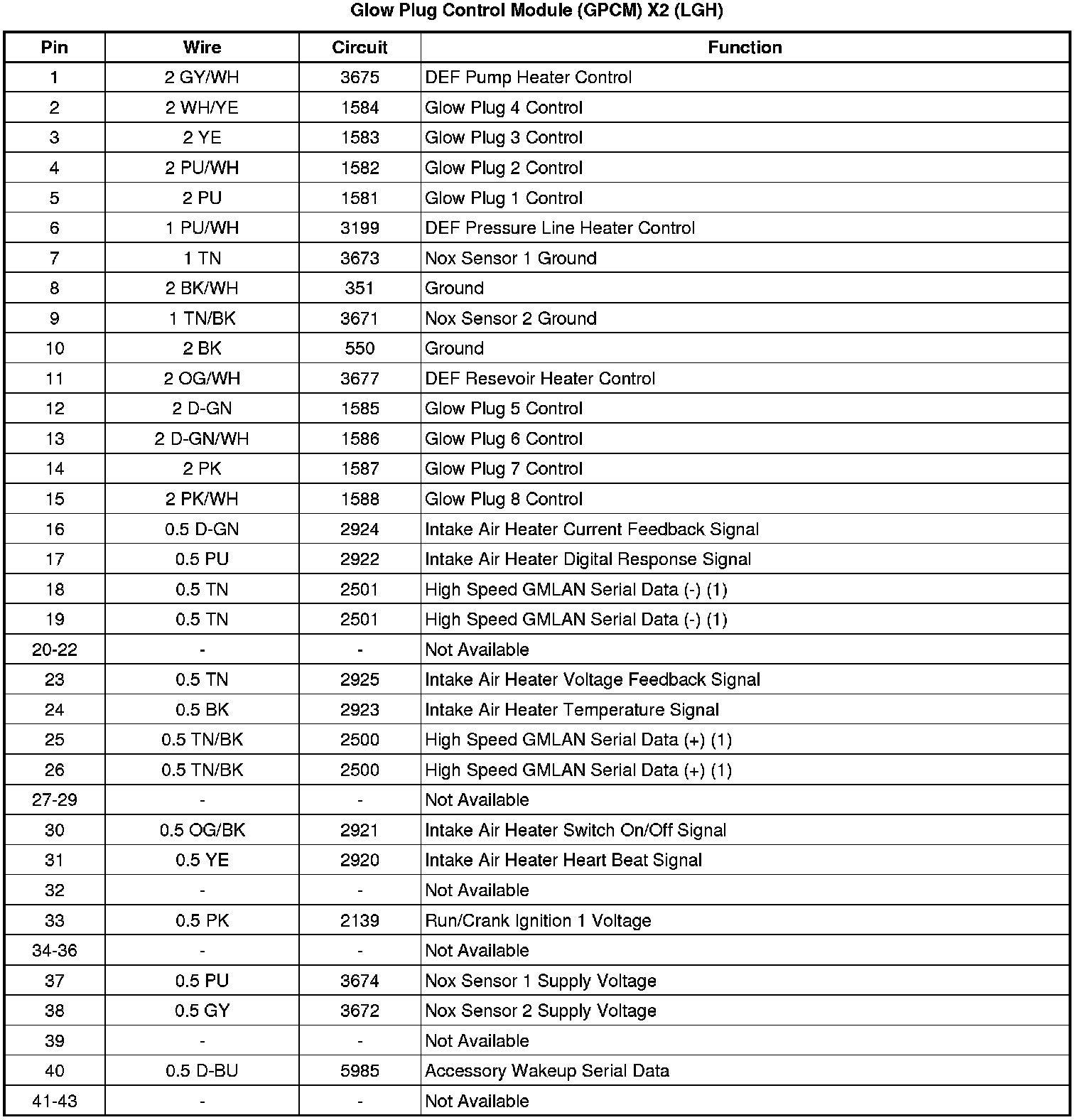

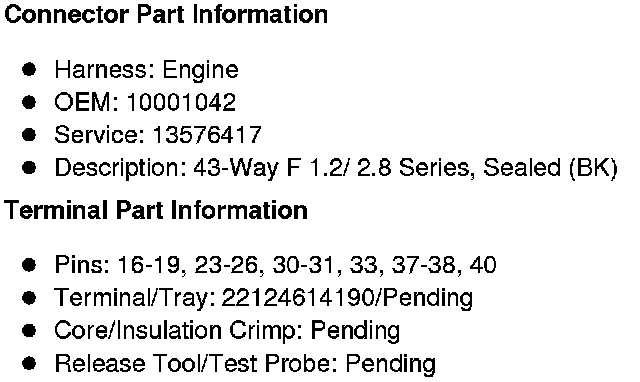

Glow Plug Control Module (GPCM) X2 (LGH)
