Wheelhouse Extension Replacement

Wheelhouse Extension Replacement


Removal Procedure

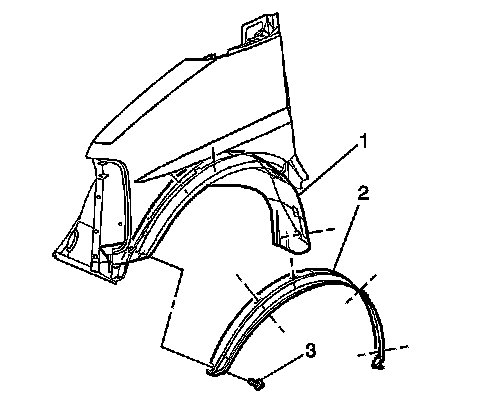

1.Remove the push pin retainers (3) retaining the wheelhouse extension (2) to the wheelhouse (1).

2.Remove the wheelhouse extension (2) from the wheelhouse (1).

Installation Procedure





1.Install the wheelhouse extension (2) to the wheelhouse (1).

2.Install the push pin retainers (3) in order to retain the wheelhouse extension (2) to the wheelhouse.
