P20E2
DTC P113A or P20E2
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC P113A
- Exhaust Gas Temperature Sensors 3-4 Not Plausible
DTC P20E2
- Exhaust Gas Temperature Sensors 1-2 Not Plausible
Diagnostic Fault Information

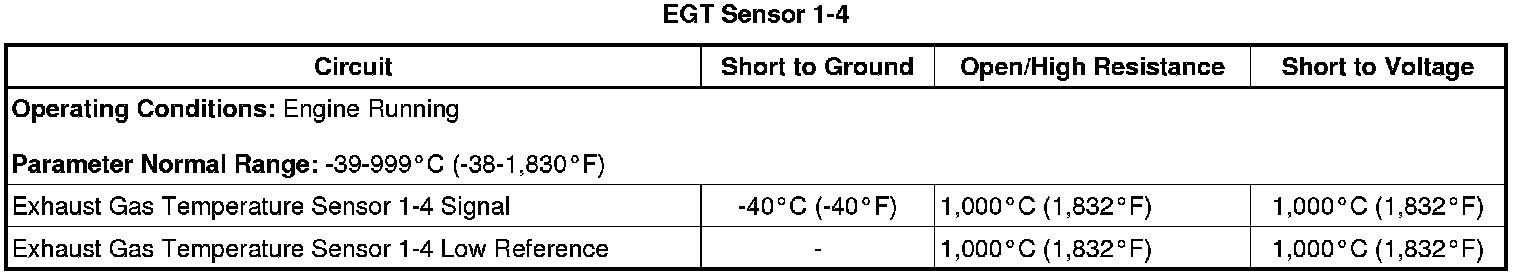

Typical Scan Tool Data
Circuit/System Description
The exhaust gas temperature sensors are variable resistors that measure the temperature of the exhaust gas at the inlet and outlet of the diesel oxidation catalyst as well as the inlet and outlet of the Diesel Particulate Filter (DPF). The Engine Control Module (ECM) supplies a bias 5-volt signal to the exhaust gas temperature sensor signal circuit, and supplies a ground to the low reference circuit. The exhaust gas temperature information is used by the ECM during the particulate filter cleaning process.

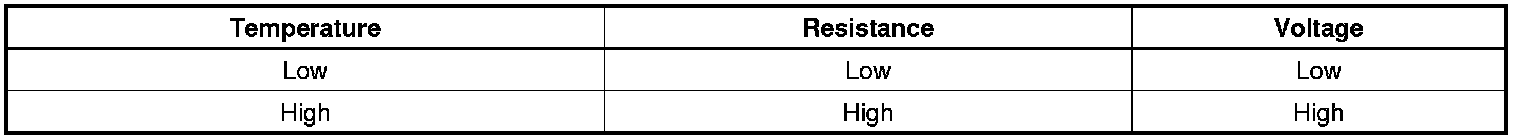

The following table illustrates the relationship between the temperature of the exhaust gas, and the resistance and voltage of the exhaust gas temperature sensor.
Conditions for Running the DTC
P113A
* DTC P0112, P0113, P242C, P242D, P2470, or P2471 is not set.
* The ignition has been OFF for greater than 8 hours.
* The engine is running.
* The ambient air temperature is greater than -60°C (-76°F).
* DTC P113A runs once per key cycle when the above conditions are met.
P20E2
Condition 1
* DTC P0016, P0112, P0113, P0335, P0336, P0340, P0341, P0545, P0546, P2032, or P2033 is not set.
* The ignition has been OFF for greater than 8 hours.
* The engine is running.
* The ambient air temperature is greater than -60°C (-76°F).
OR
Condition 2
* DTC P0016, P0112, P0113, P0335, P0336, P0340, P0341, P0545, P0546, P2032, or P2033 is not set.
* The ignition has been OFF for greater than 8 hours.
* The engine is running.
* The ambient air temperature is greater than -60°C (-76°F).
* In the first 60 s of engine run time, the ECM determines that the engine block heater is OFF.
DTC P02E0 runs once per key cycle when condition 1 or condition 2 above is met.
Conditions for Setting the DTC
P113A
The ECM detects, at engine start, that a temperature difference of greater than 30°C (54°F), exists between exhaust gas temperature sensor 3 and exhaust gas temperature sensor 4.
P20E2
Condition 1
The ECM detects, at engine start, that a temperature difference of greater than 100°C (180°F), exists between exhaust gas temperature sensor 1 and exhaust gas temperature sensor 2.
OR
Condition 2
The ECM determines the temperature difference between the exhaust gas temperature sensor 1 and exhaust gas temperature sensor 2 is greater than 30°C (54°F), but less than or equal to 100°C (180°F), after 60 s of engine run time.
Action Taken When the DTC Sets
DTCs P113A and P20E2 are Type B DTCs.
Conditions for Clearing the DTC
DTCs P113A and P20E2 are Type B DTCs.
Diagnostic Aids
A slight to moderate resistance in either the signal or low reference circuits, can widen the spread between the exhaust gas temperature sensors, and cause the DTCs to set.
Reference Information
Schematic Reference
Engine Controls Schematics [1][2]Electrical Diagrams
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Description and Operation
Exhaust Aftertreatment System Description Exhaust Aftertreatment System Description
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Special Tools
J 25070 - Heat Gun 500-750°F
Circuit/System Verification
Note: Determine the ambient temperature by using an accurate thermometer.
1. Ignition OFF for greater than 8 hours.
2. Observe the scan tool EGT Sensor 1-4 parameters and compare it to the ambient temperature. The reading for EGT 1-4 should be within 30°C (54°F) of the ambient temperature.
• If not within the specified range
Refer to Circuit/System Testing.
• If within the specified range
3. Ignition ON
4. Observe the scan tool EGT Sensor 1-4 parameters. The reading should be between -40-999°C (-40-1,830°F) depending on the current ambient temperature and the vehicle operating conditions
• If not within the specified range
Refer to Circuit/System Testing.
• If within the specified range
5. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
6. Verify a DTC does not set
• If any DTCs set
Refer to Diagnostic Trouble Code (DTC) List - Vehicle Diagnostic Trouble Code (DTC) List - Vehicle for further diagnosis.
• If no DTCs set
7. All OK
Circuit/System Testing
Note: Perform the Repair Verification after completing the Circuit/System Testing.
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the appropriate B131 EGT sensor. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 5 ohms between the low reference circuit terminal B and ground.
• If 5 ohms or greater
1. Ignition OFF, disconnect the harness connector at the K20 engine control module.
2. Test for less than 2 ohms in the low reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 engine control module.
• If less than 5 ohms
3. Ignition ON.
4. Verify the scan tool B131 EGT sensor parameter is greater than 998°C (1828°F).
• If 998°C (1828°F) or less
1. Ignition OFF, disconnect the harness connector at the K20 engine control module.
2. Test for infinite resistance between the signal circuit terminal A and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K20 engine control module.
• If greater than 998°C (1828°F)
5. Install a 3 A fused jumper wire between the signal circuit terminal A and the low reference circuit terminal B.
6. Verify the scan tool B131 EGT parameter is less than -35°C (-31°F).
• If -35°C (-31°F) or greater
1. Ignition OFF, disconnect the harness connector at the K20 engine control module, ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Ignition OFF
4. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 engine control module.
• If less than -35°C (-31°F)
7. Test or replace the B131 Exhaust Gas Temperature sensor.
Component Testing
Note: The J 25070 Heat Gun 500-750°F may be used to evaluate the sensor under high temperature conditions.
1. Ignition OFF, remove the affected B131 EGT sensor while leaving the harness connector connected.
2. Measure and record the resistance of the B131 EGT sensor and compare the measurements to the Temperature Versus Resistance (Fuel Temperature Sensor) Temperature Versus Resistance (Fuel Temperature Sensor)Temperature Versus Resistance (ECT Sensors) Temperature Versus Resistance (ECT Sensors)Temperature Versus Resistance (IAT Sensor 1) Temperature Versus Resistance (IAT Sensor 1)Temperature Versus Resistance (IAT Sensor 2) Temperature Versus Resistance (IAT Sensor 2)Temperature Versus Resistance (EGT Sensors) Temperature Versus Resistance (EGT Sensors)Temperature Versus Resistance (EGR Temperature Sensors) Temperature Versus Resistance (EGR Temperature Sensors)Temperature Versus Resistance (Emission Reduction Fluid Injector) [1][2]Diesel Emissions Fluid (DEF) System chart.
• If not within the specified range
Replace the B131 EGT sensor.
• If within the specified range
3. All OK
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Exhaust Temperature Sensor Replacement - Position 1 Exhaust Temperature Sensor Replacement - Position 1
* Exhaust Temperature Sensor Replacement - Position 2 Exhaust Temperature Sensor Replacement - Position 2
* Exhaust Temperature Sensor Replacement - Position 3 Exhaust Temperature Sensor Replacement - Position 3
* Exhaust Temperature Sensor Replacement - Position 4 Exhaust Temperature Sensor Replacement - Position 4
* Control Module References Control Module References for ECM replacement, setup and programming
