Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Removal and Replacement >> Rear Drive Axle >> Rear Axle Shaft and/or Gasket Replacement

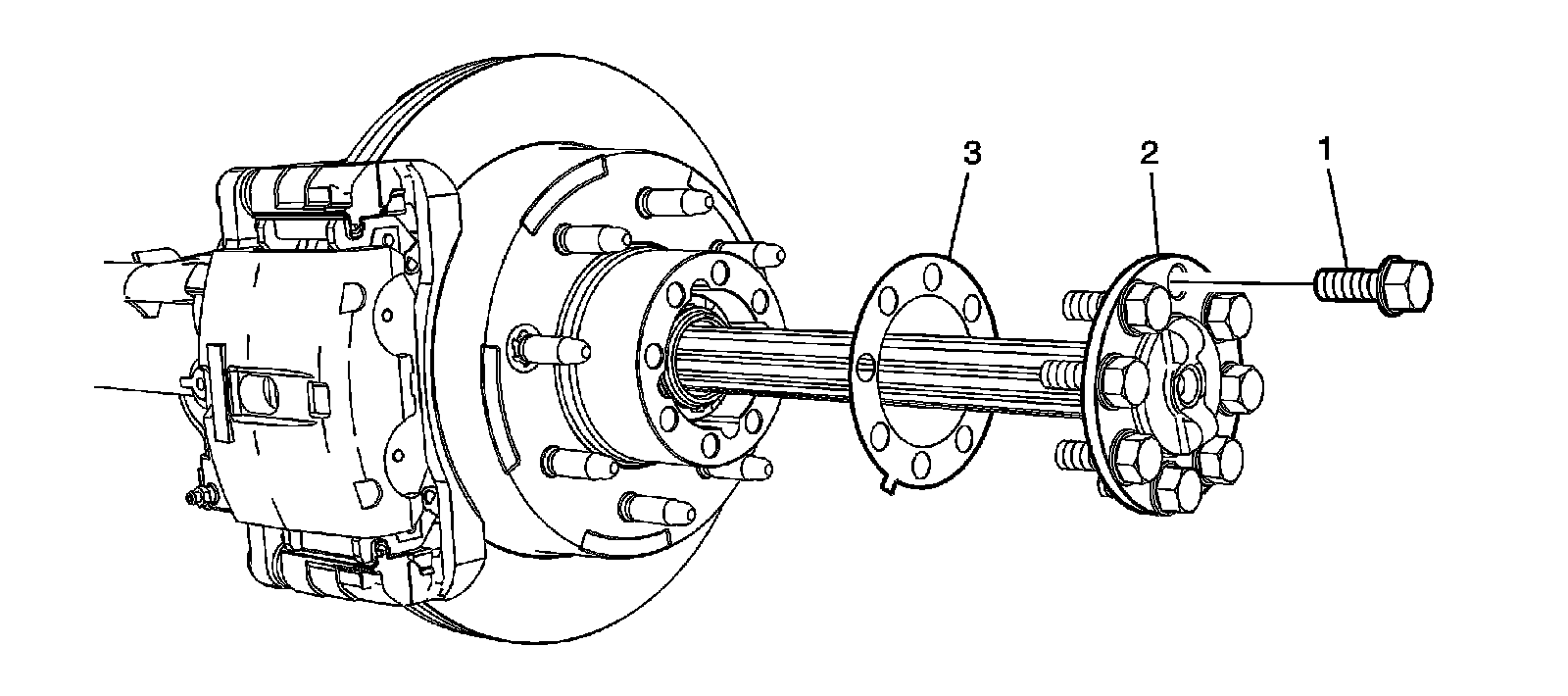

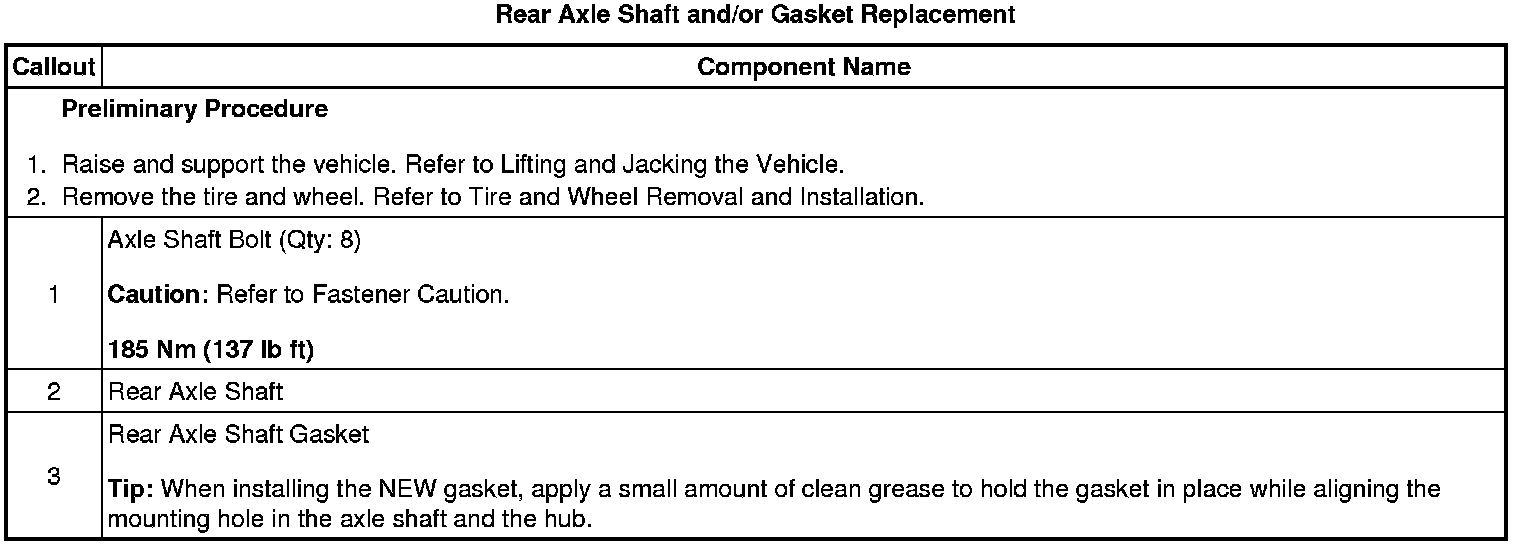

Rear Axle Shaft and/or Gasket Replacement




Rear Axle Shaft and/or Gasket Replacement
