6L45/6L50/6L80/6L90 - Automatic Transmission
>>
Repair Instructions
>>

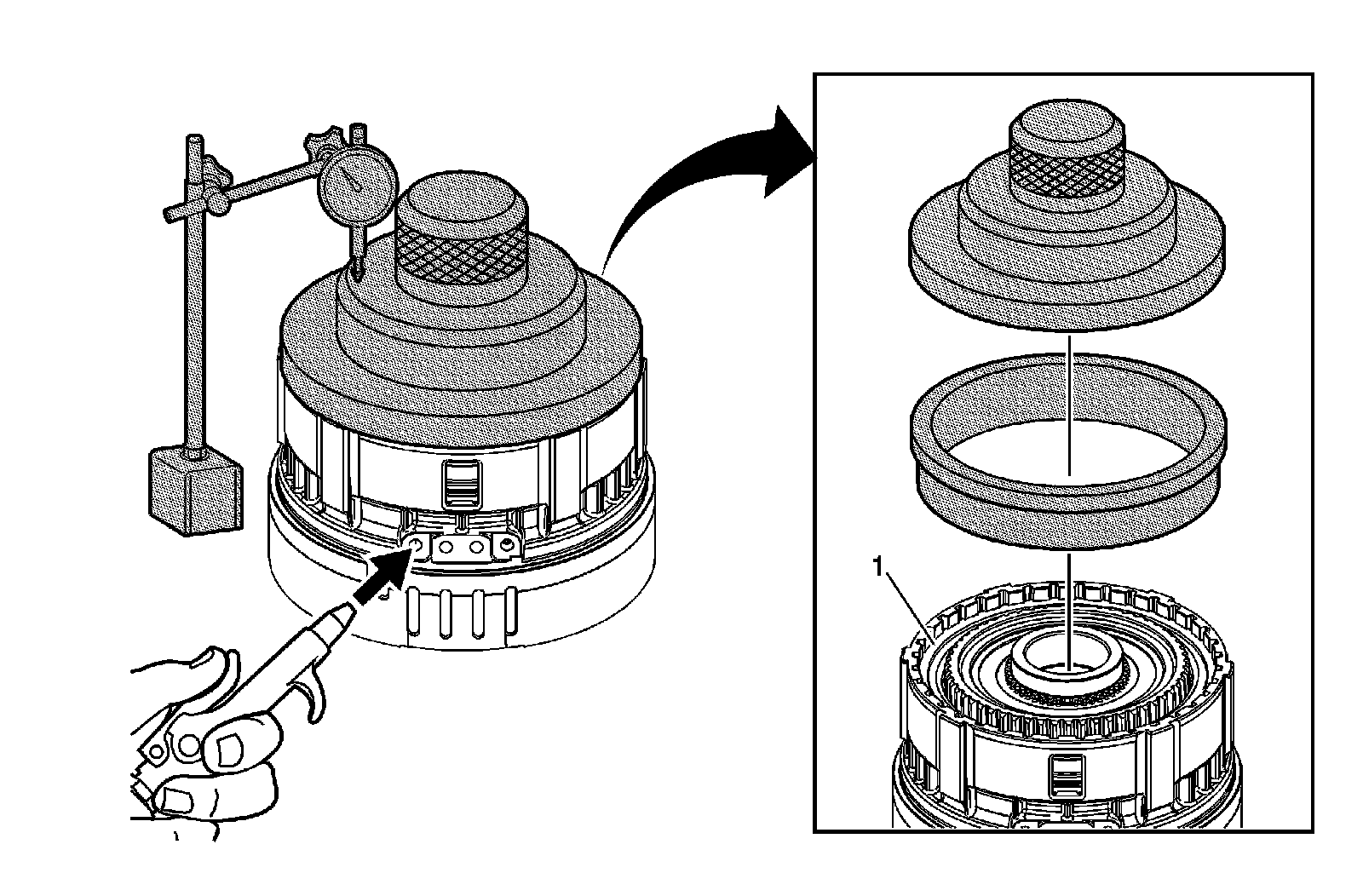

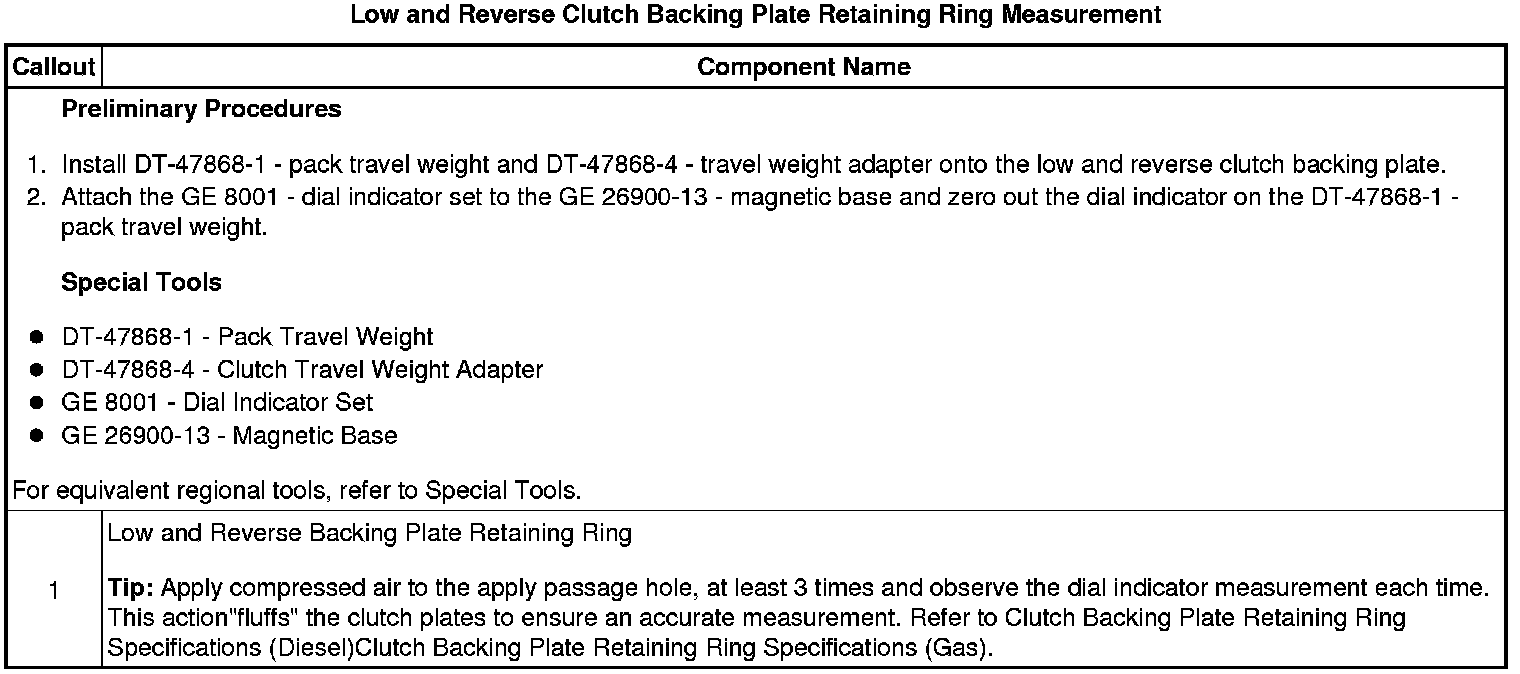

Low and Reverse Clutch Backing Plate Retaining Ring Measurement
Low and Reverse Clutch Backing Plate Retaining Ring Measurement
Low and Reverse Clutch Backing Plate Retaining Ring Measurement
