6L45/6L50/6L80/6L90 - Automatic Transmission
>>
Repair Instructions
>>

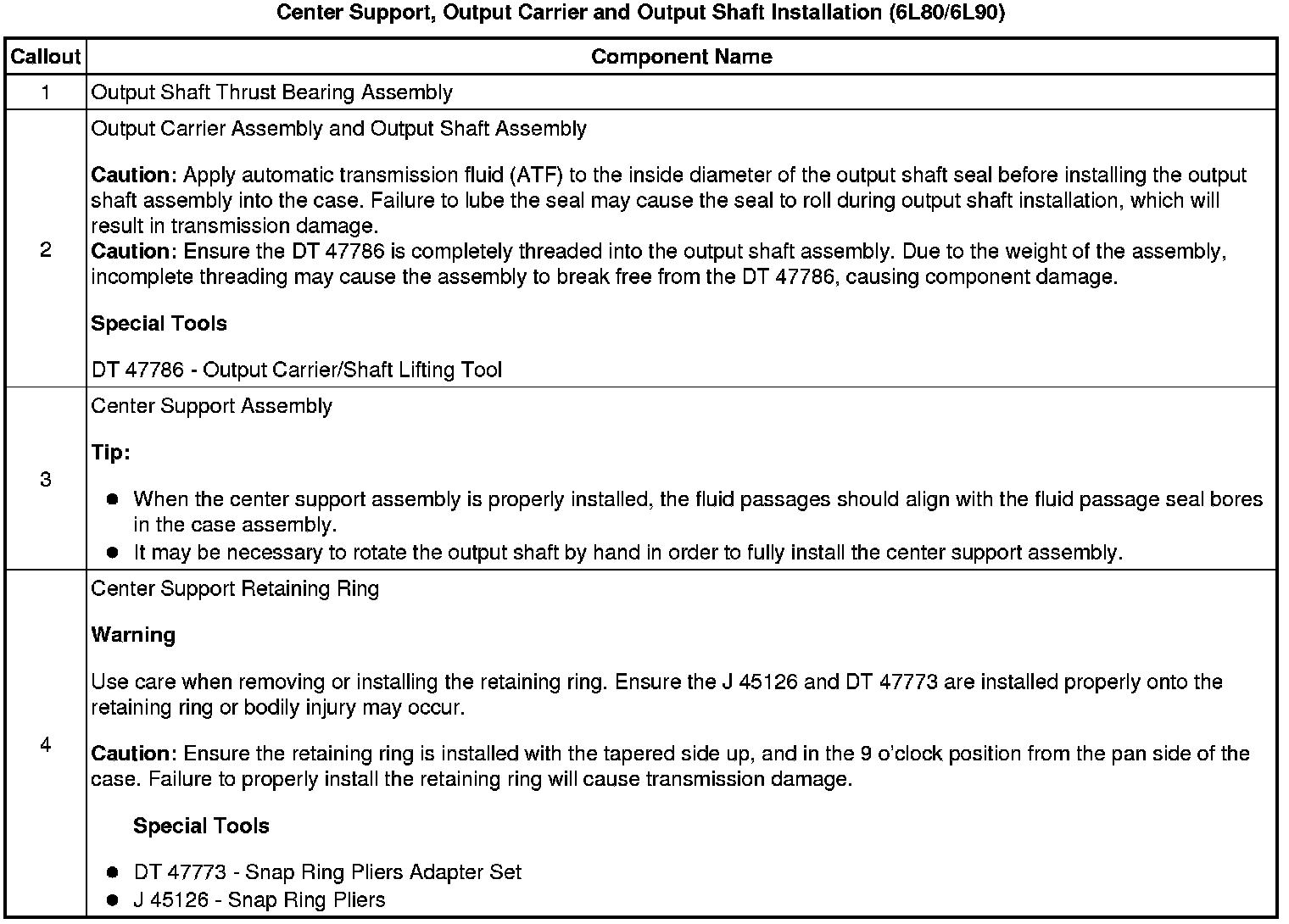

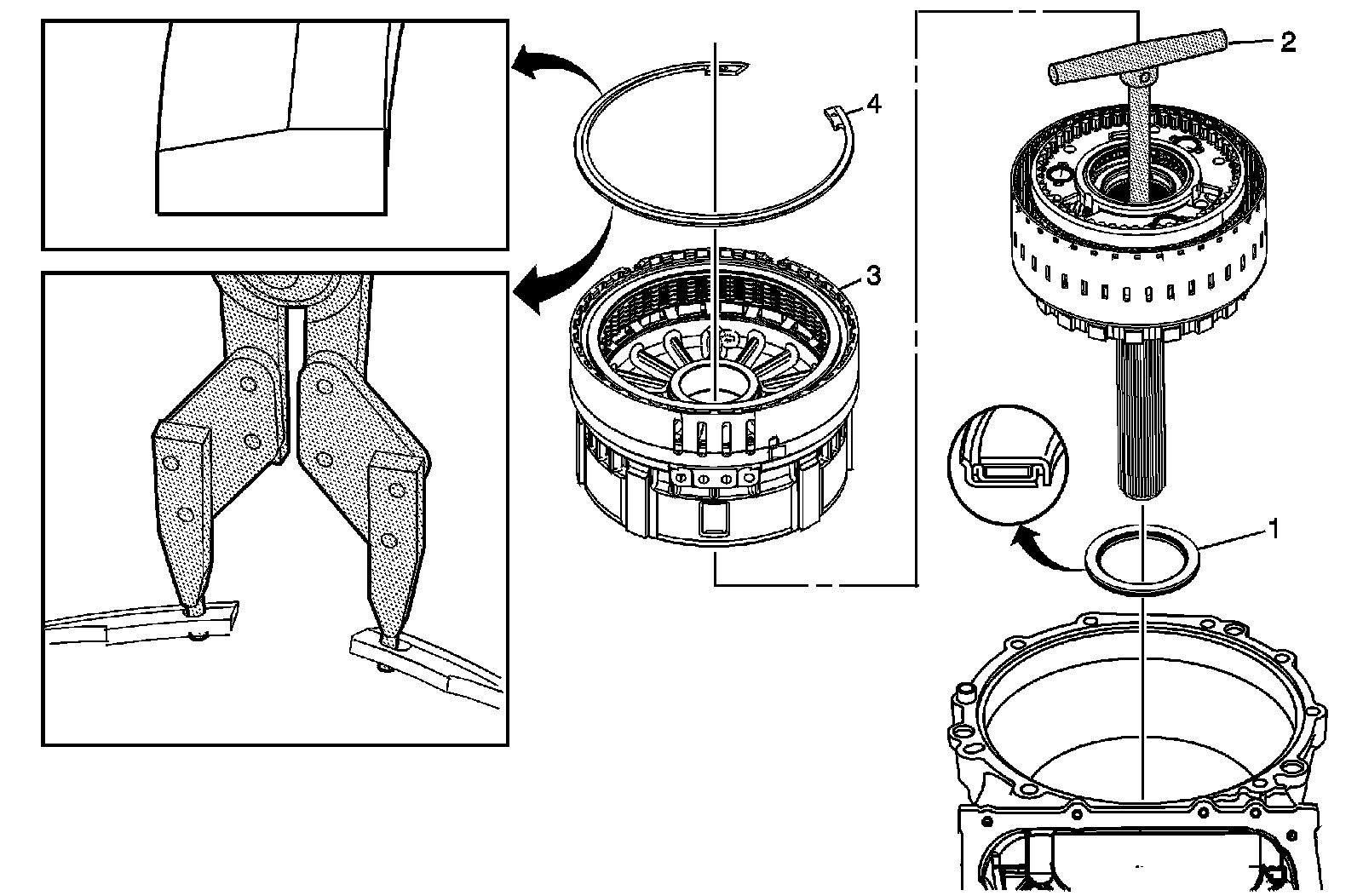

Center Support, Output Carrier and Output Shaft Installation (6L80/6L90)
Center Support, Output Carrier and Output Shaft Installation (6L80/6L90)
Center Support
, Output Carrier and Output Shaft Installation (6L80/6L90)
