2-6 Clutch Overhaul (Diesel)

2-6 Clutch Overhaul (Diesel)

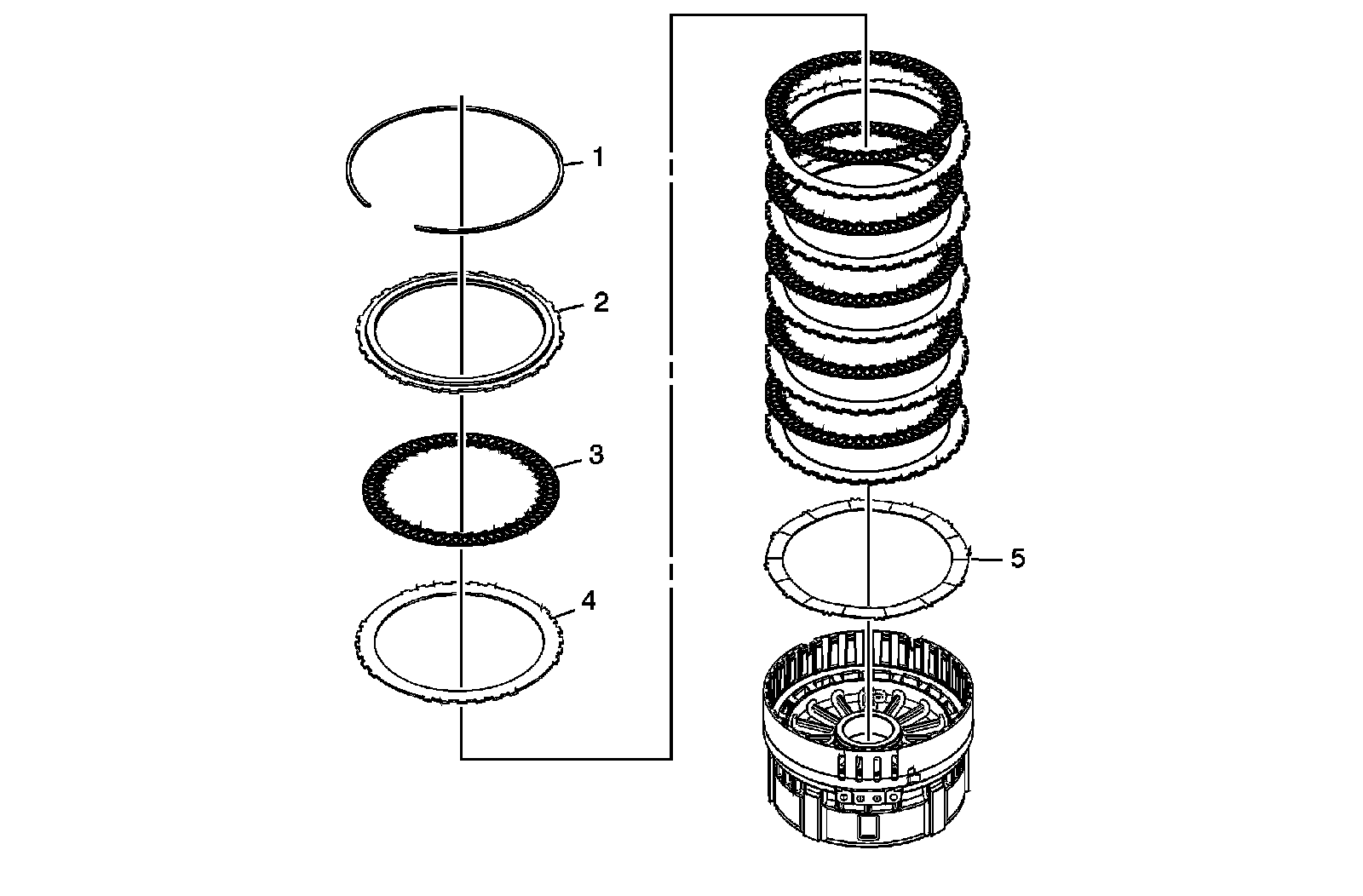

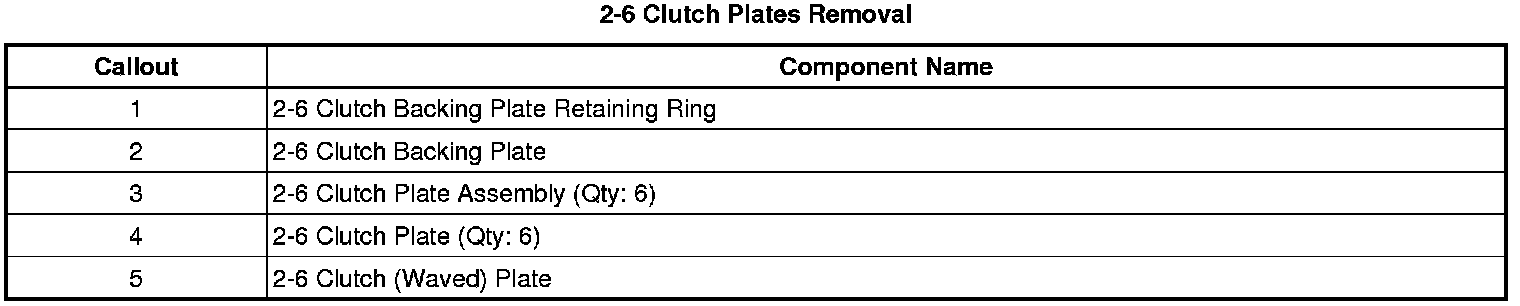

2-6 Clutch Plates Removal

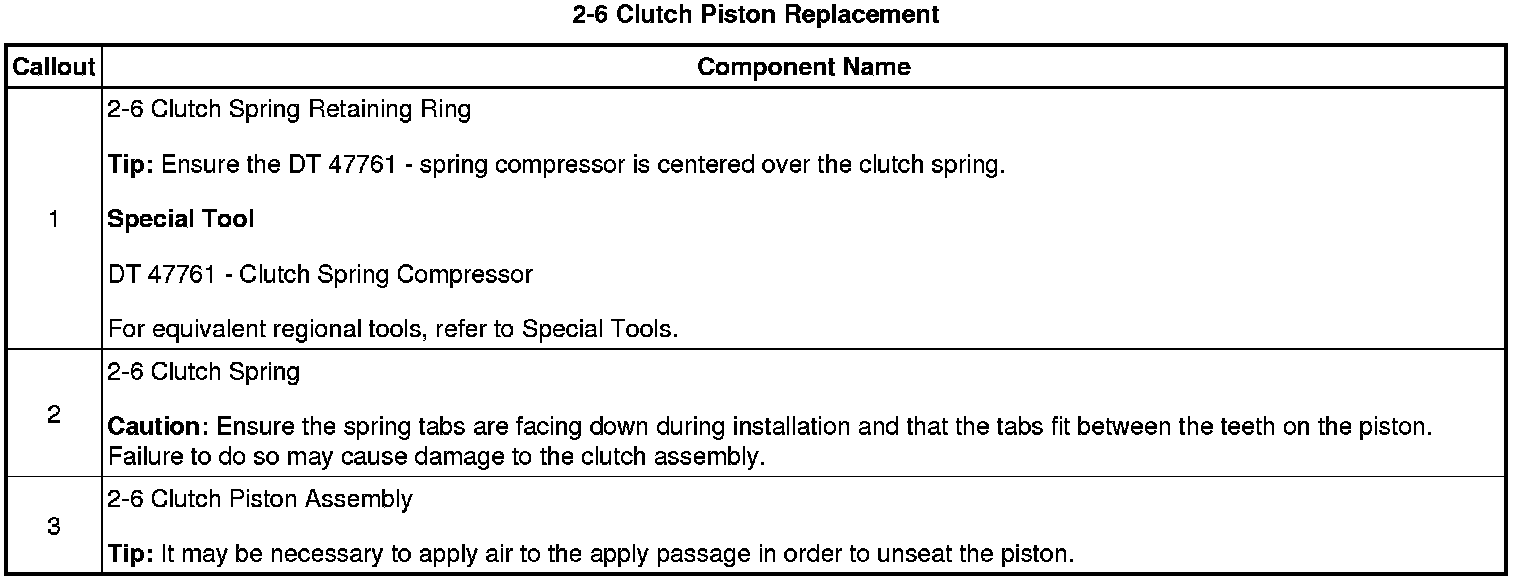

2-6 Clutch Piston Replacement

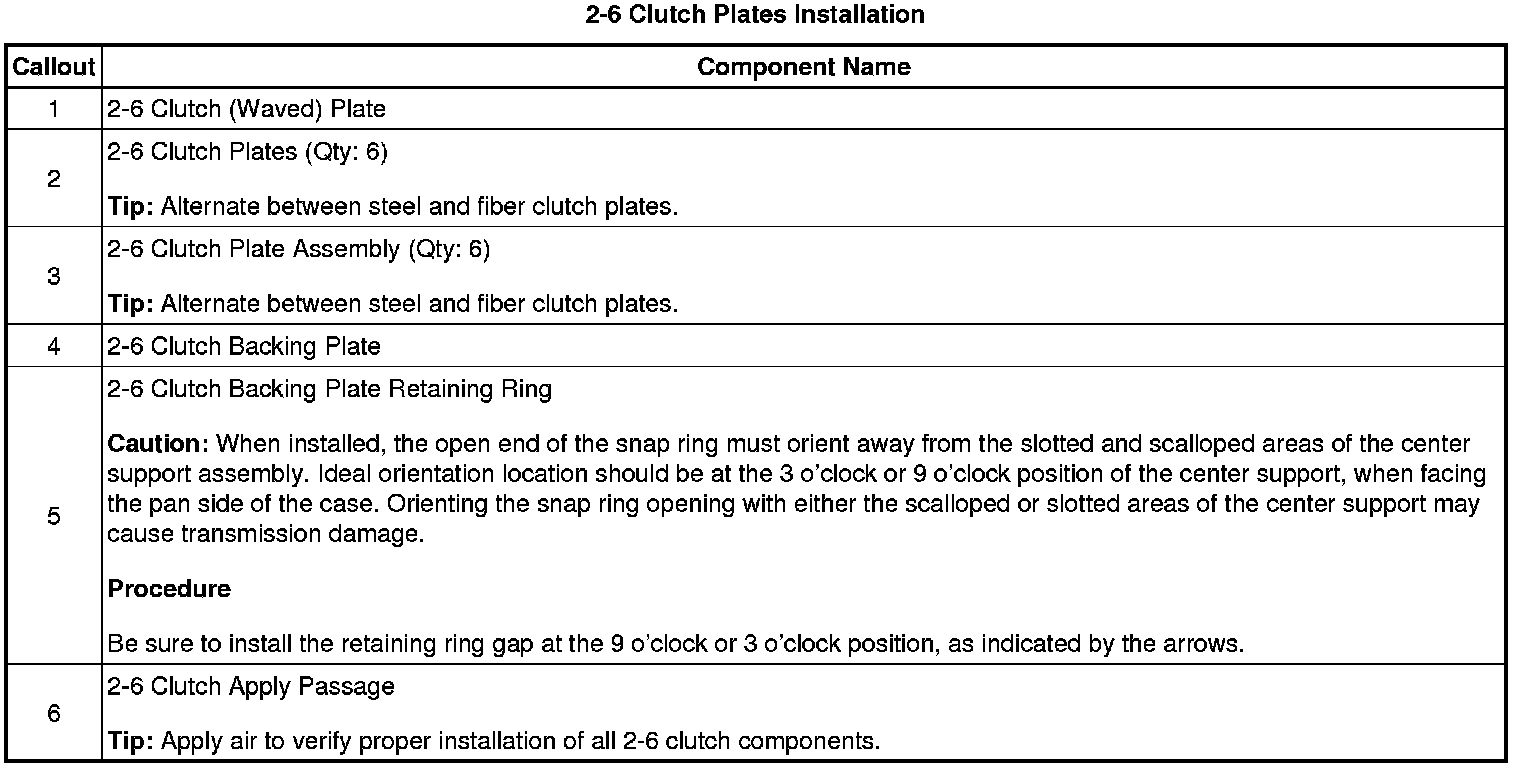

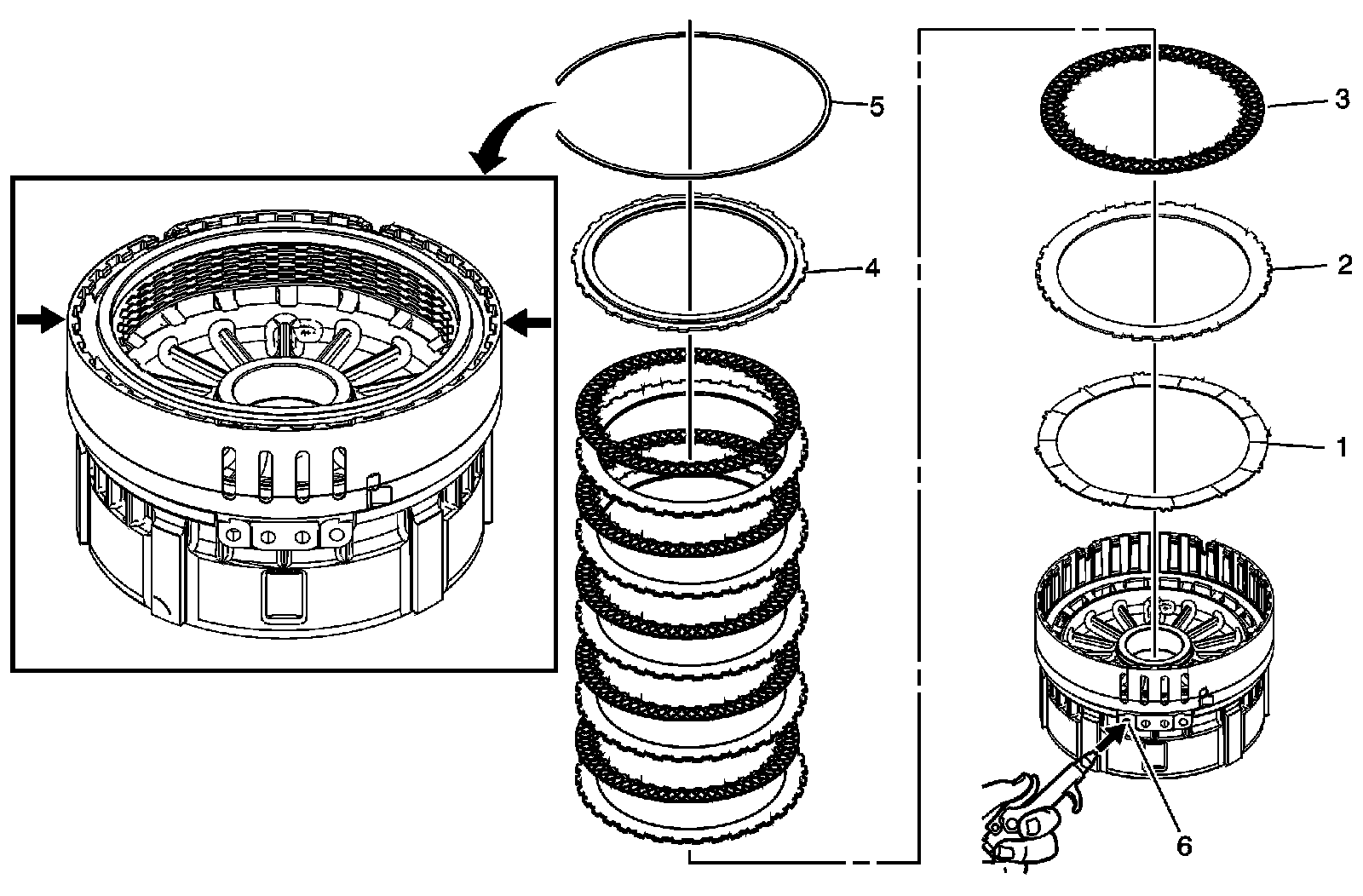

2-6 Clutch Plates Installation
