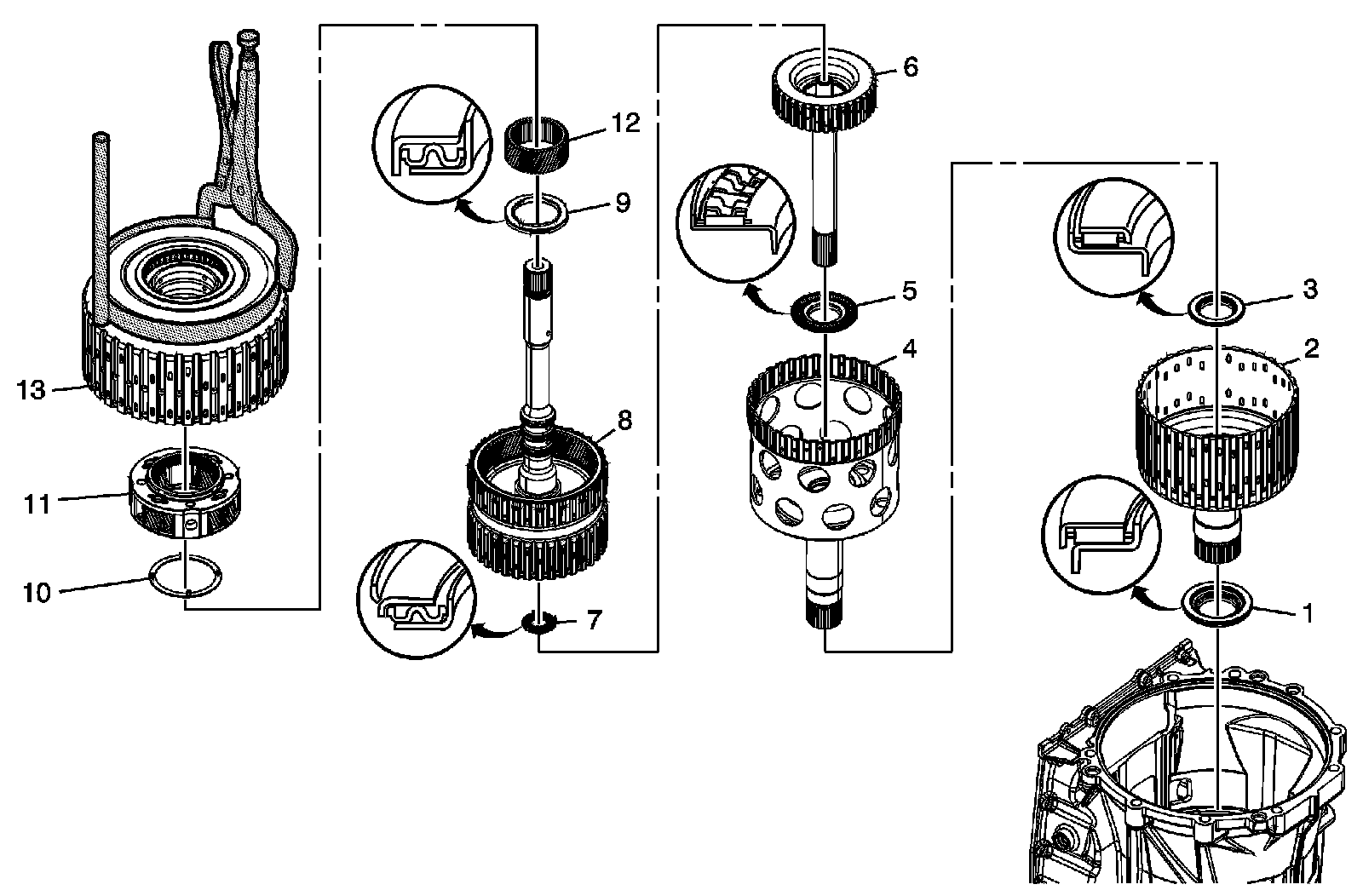

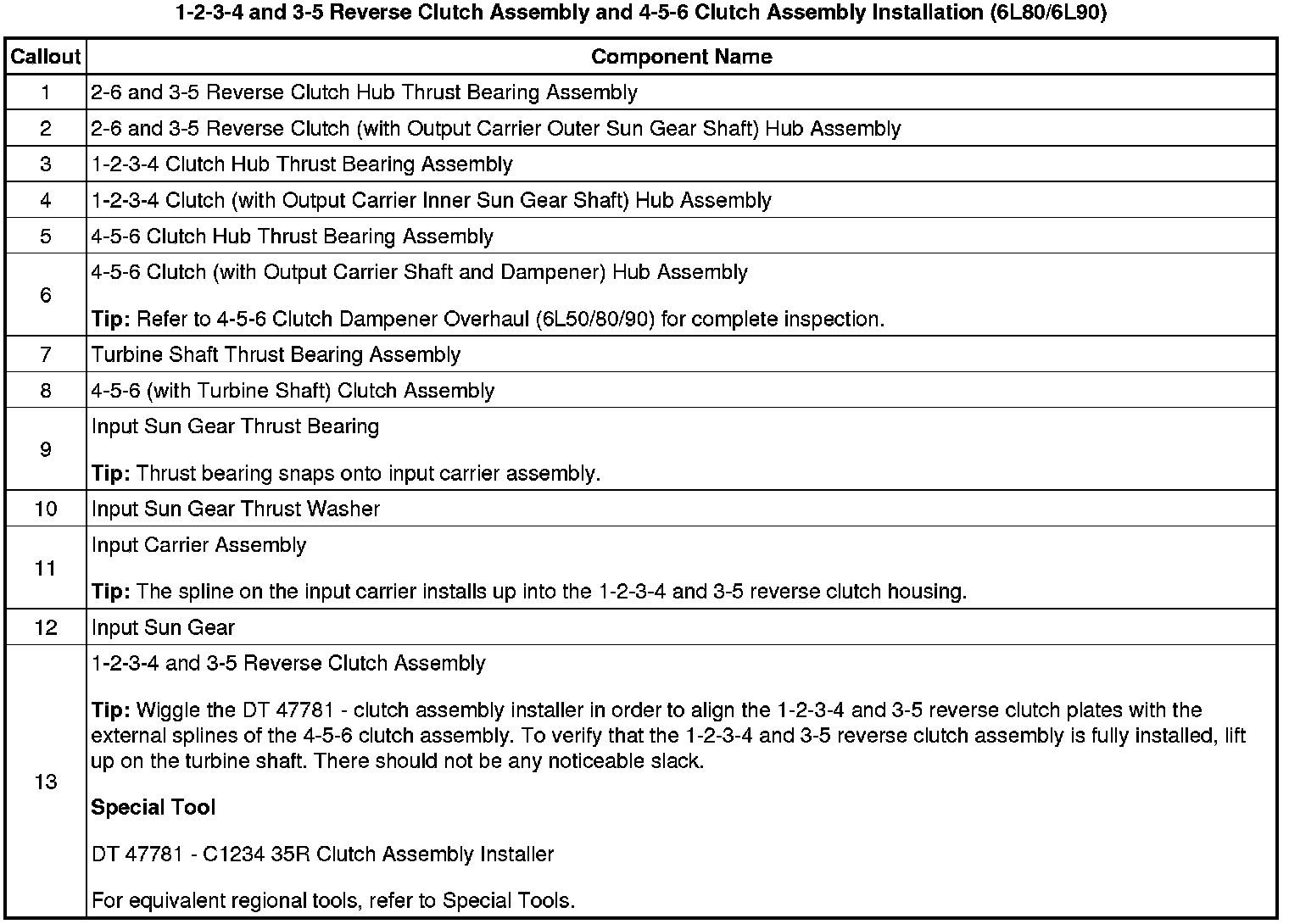

1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation (6L80/6L90)




1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation (6L80/6L90)
