Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Splices By Number >> JX300 - JX399 >> JX348

JX348




Harness Routing Views

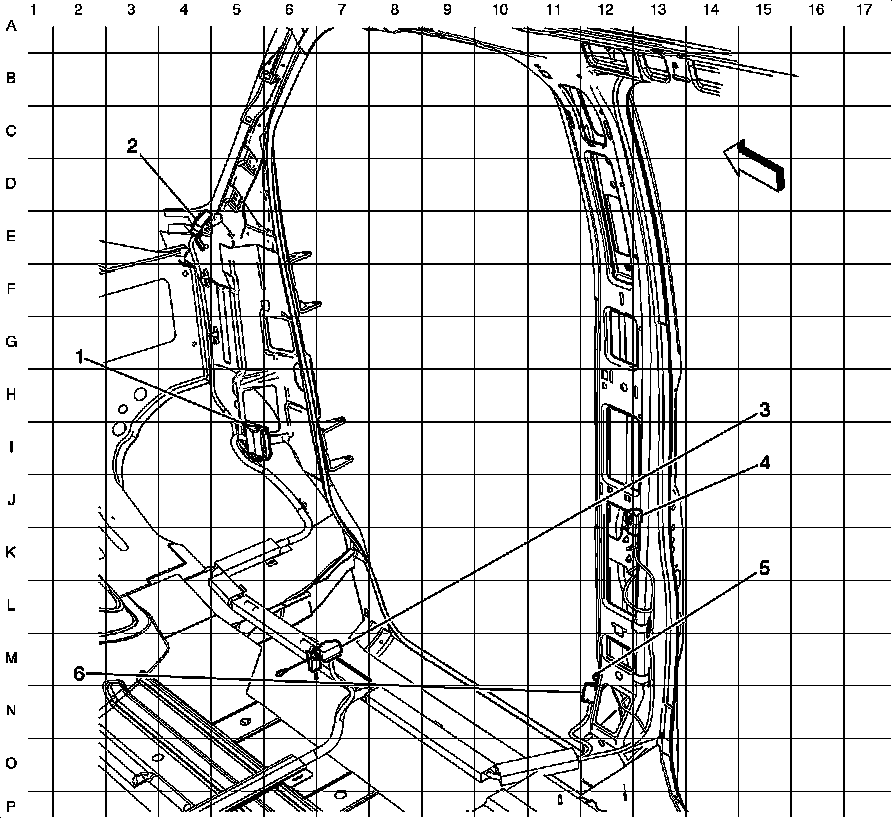

Body Harness Routing- Right Front Passenger Compartment





1 - X600

2 - X205

3 - X306

4 - X324 (ASF)

5 - G348

6 - JX348
