X501

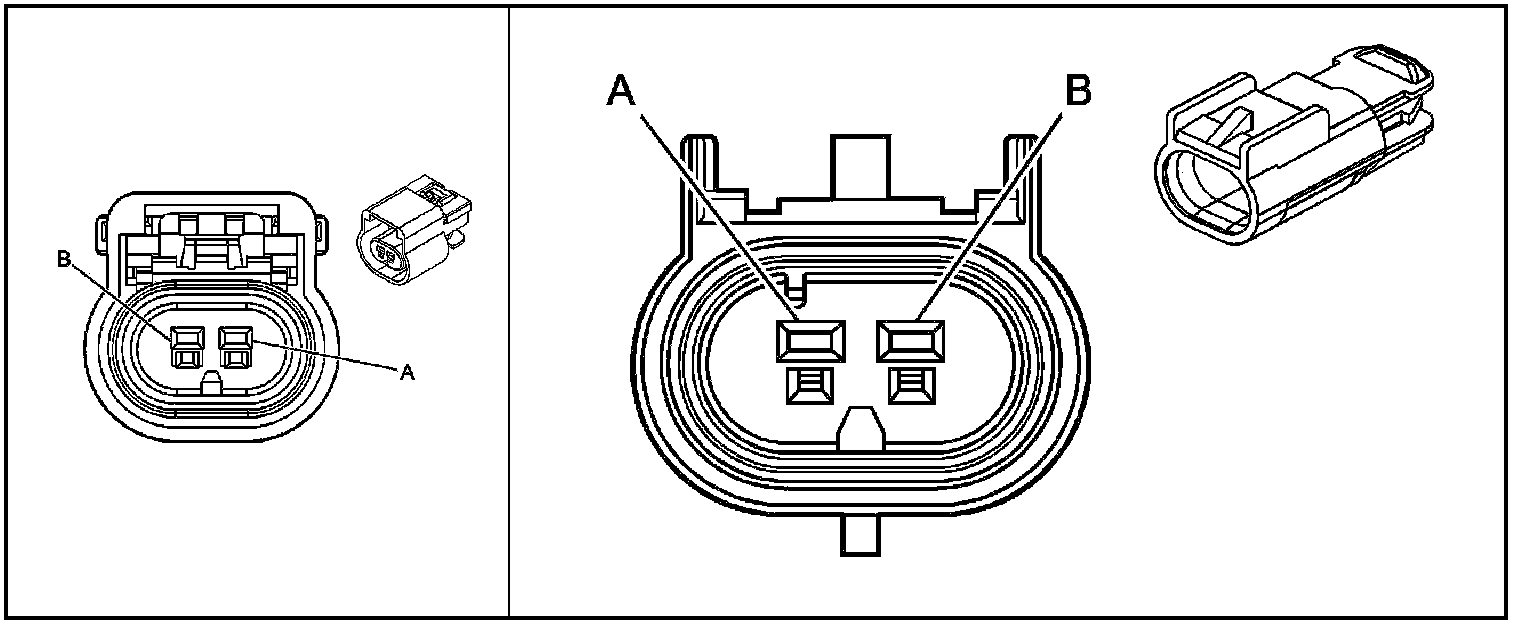

Inline Harness Connector End Views

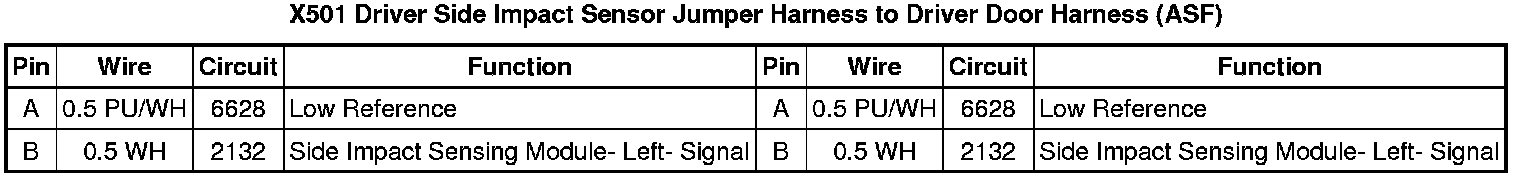

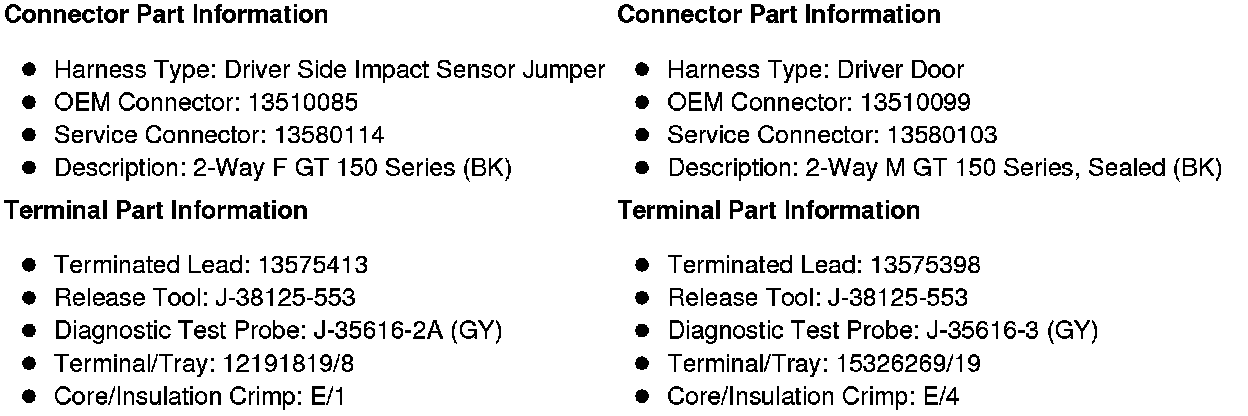

X501 Driver Side Impact Sensor Jumper Harness to Driver Door Harness (ASF)
