X415
X415

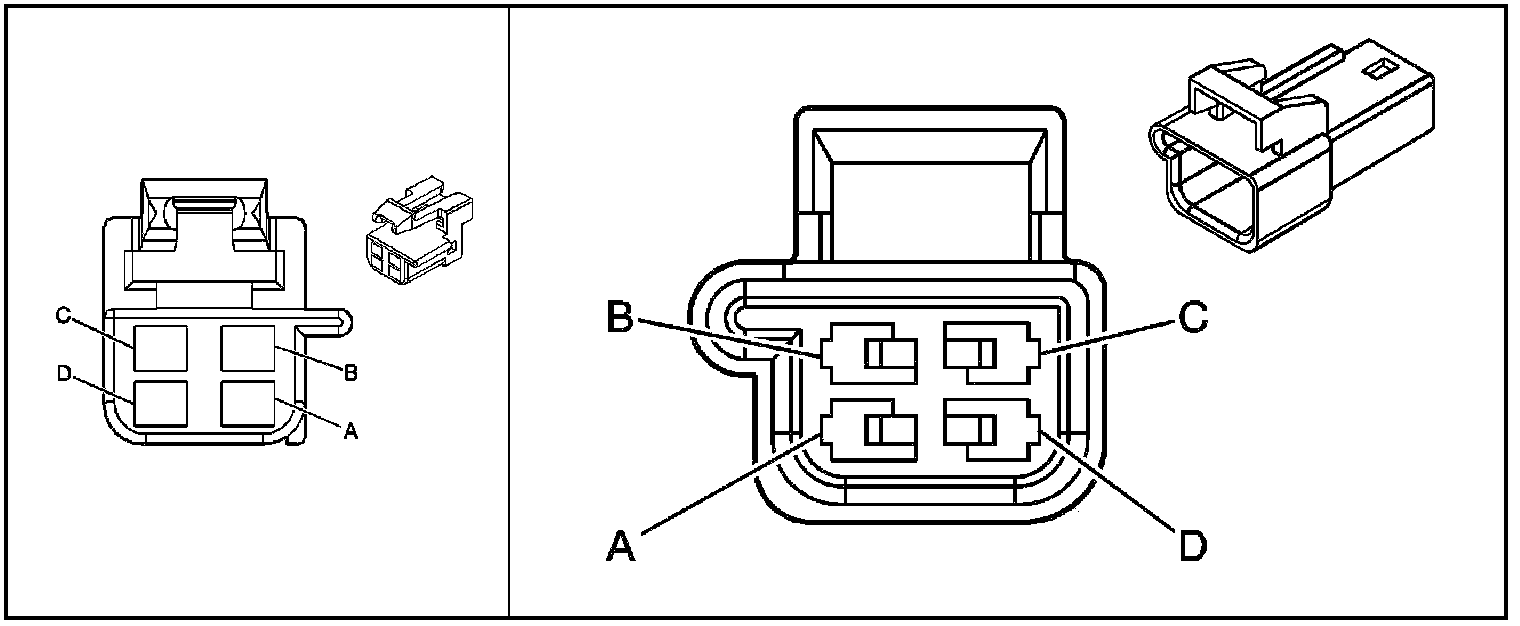

Inline Harness Connector End Views

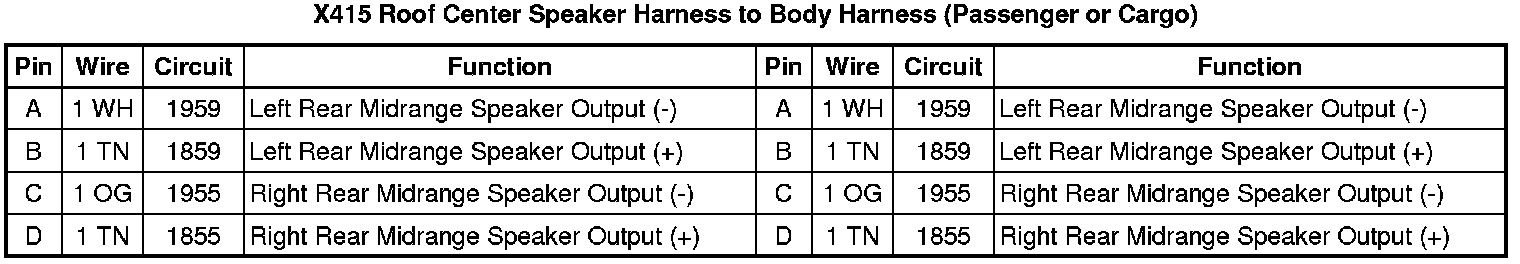

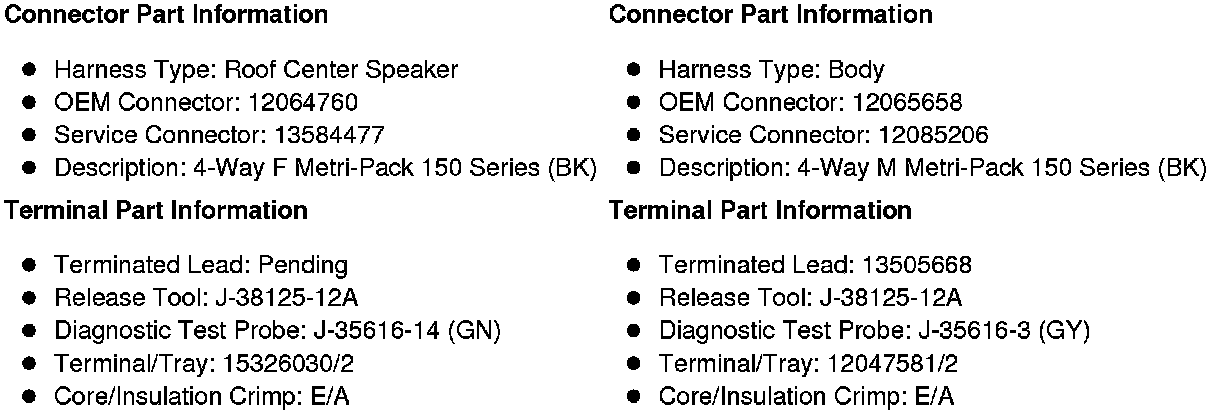

X415 Roof Center Speaker Harness to Body Harness (Passenger or Cargo)
