X414
X414

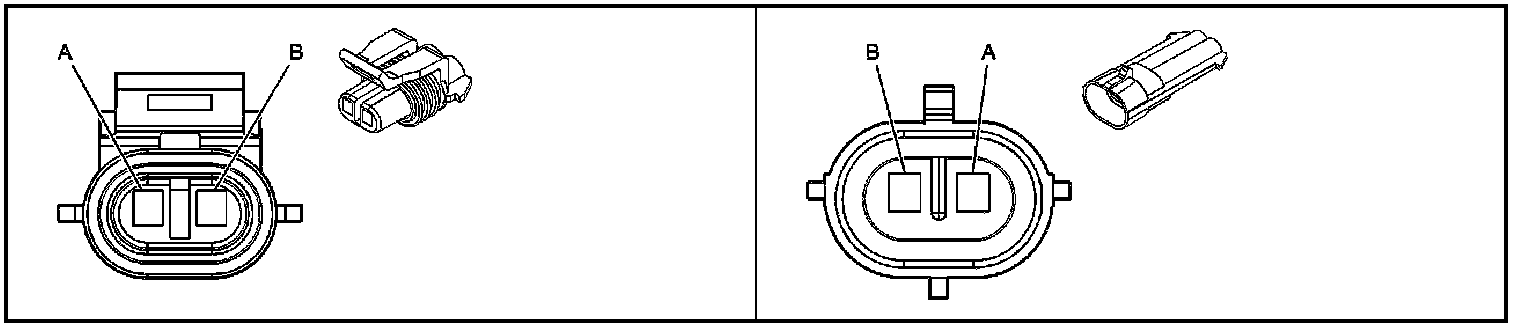

Inline Harness Connector End Views

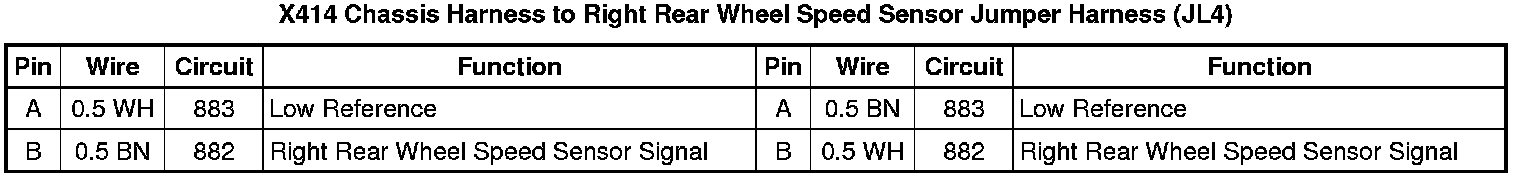

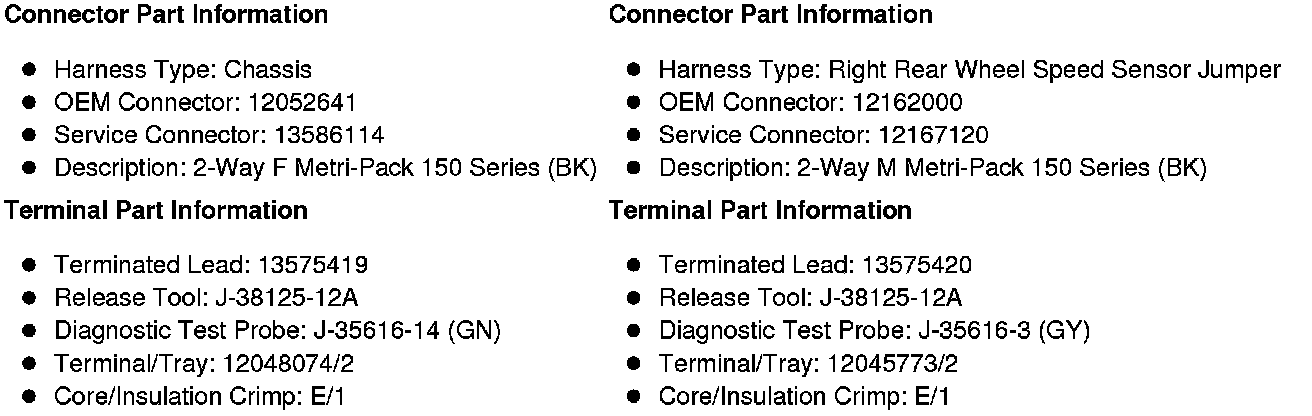

X414 Chassis Harness to Right Rear Wheel Speed Sensor Jumper Harness (JL4)
