X412
X412

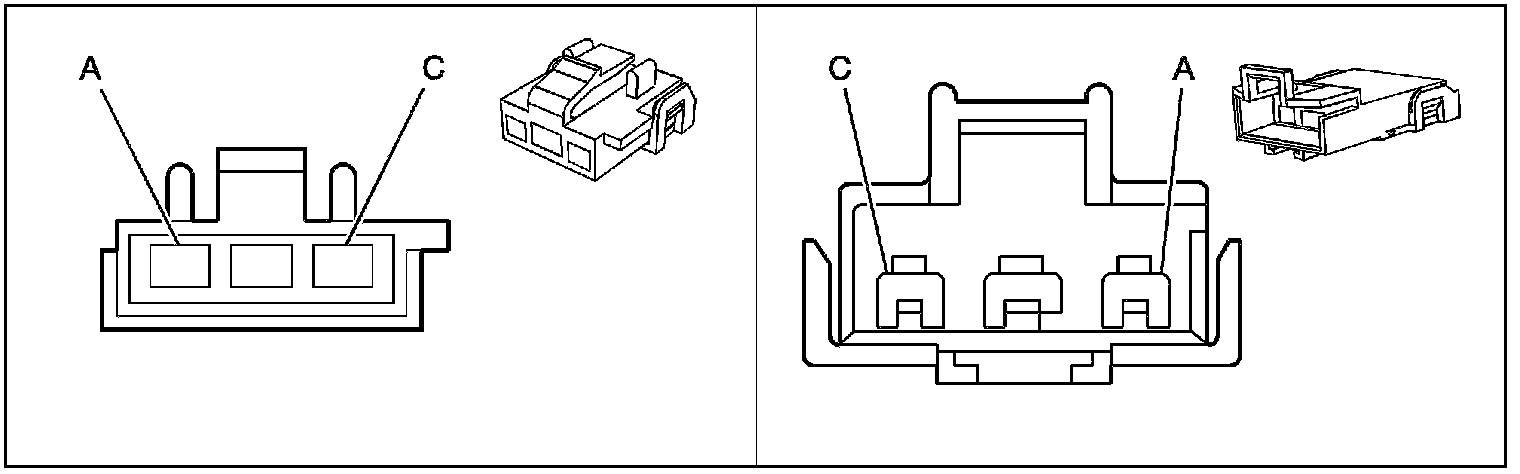

Inline Harness Connector End Views

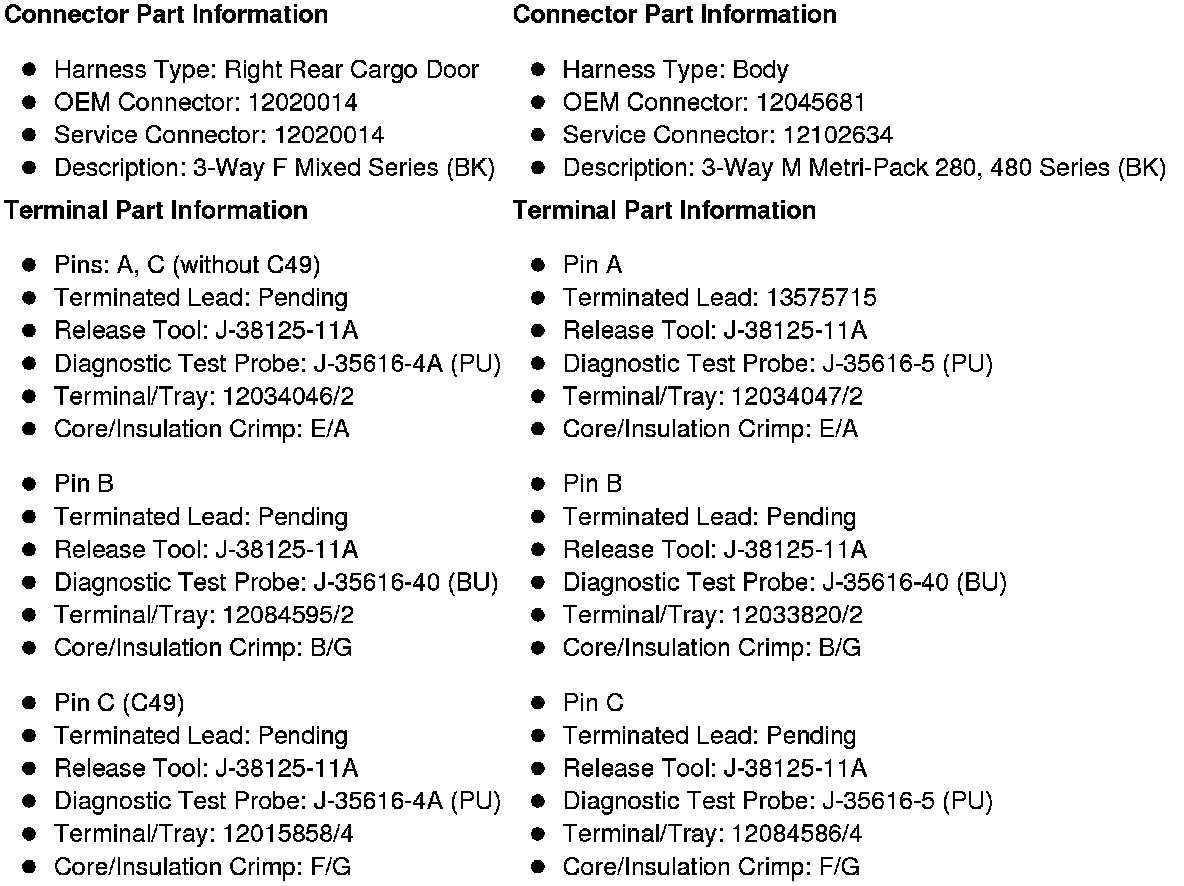

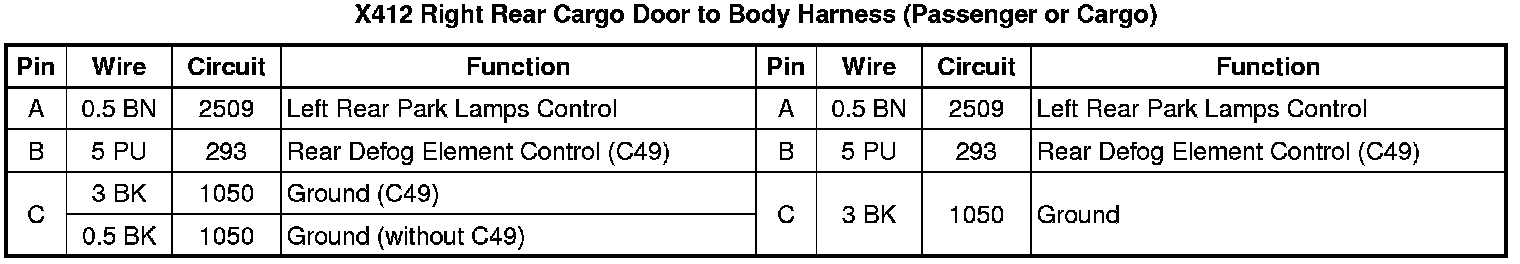

X412 Right Rear Cargo Door to Body Harness (Passenger or Cargo)
