X321

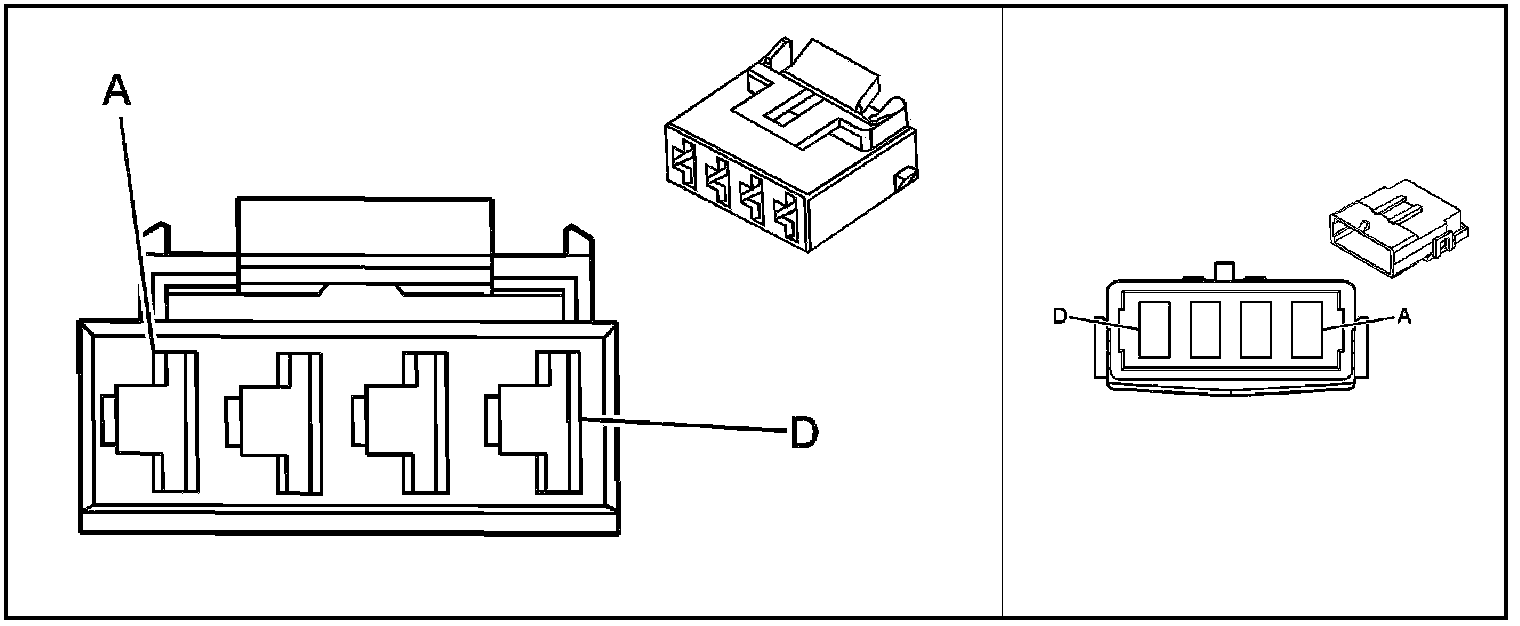

Inline Harness Connector End Views

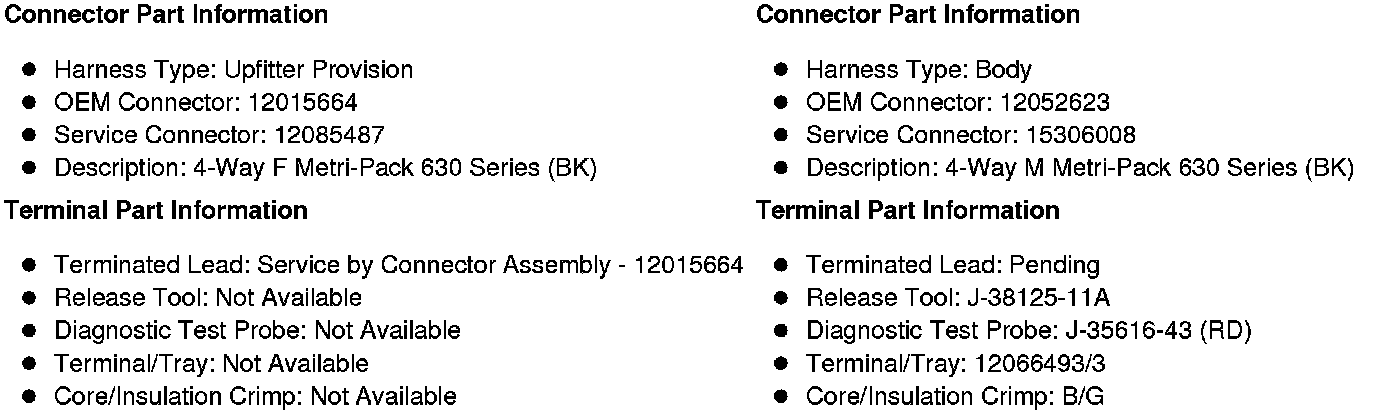

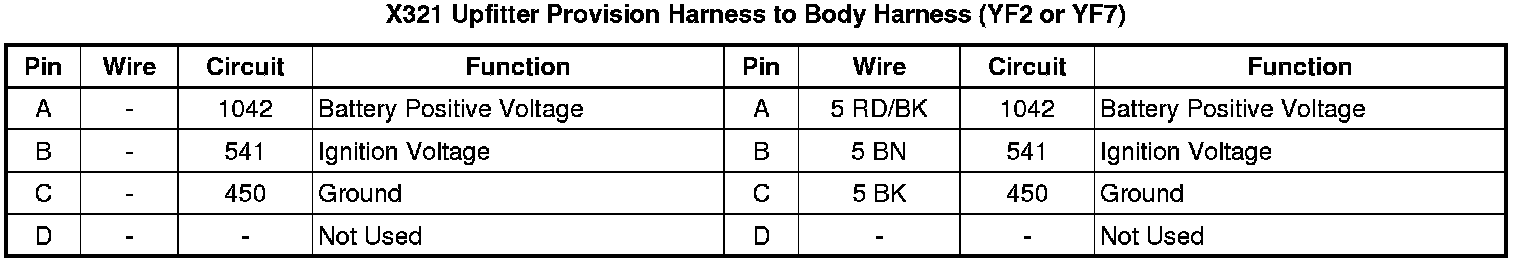

X321 Upfitter Provision Harness to Body Harness (YF2 or YF7)
