Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X200 - X299 >> X278

X278




Inline Harness Connector End Views

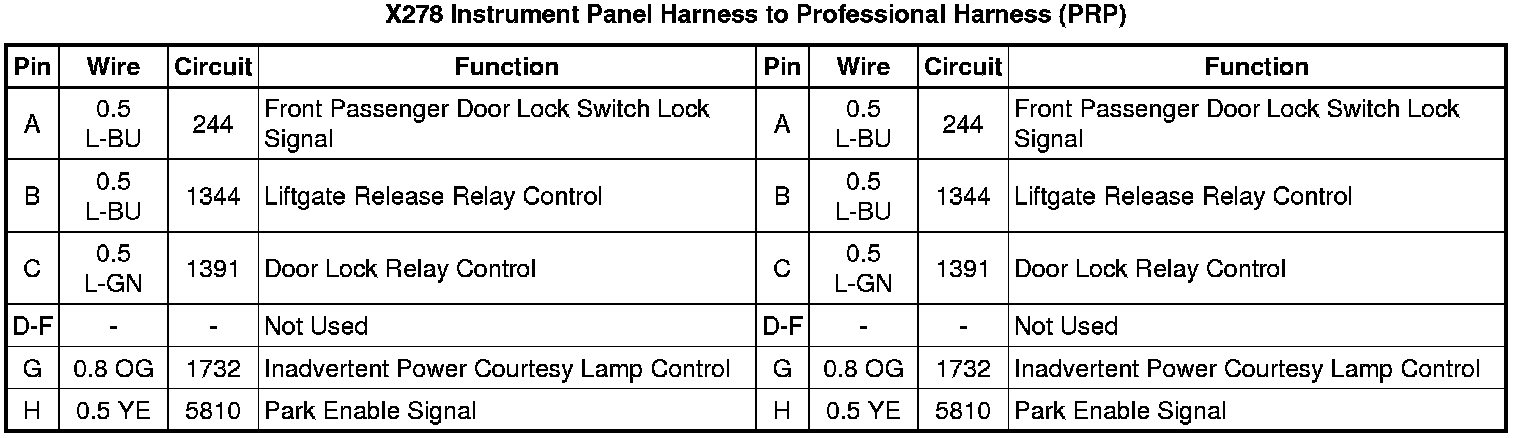

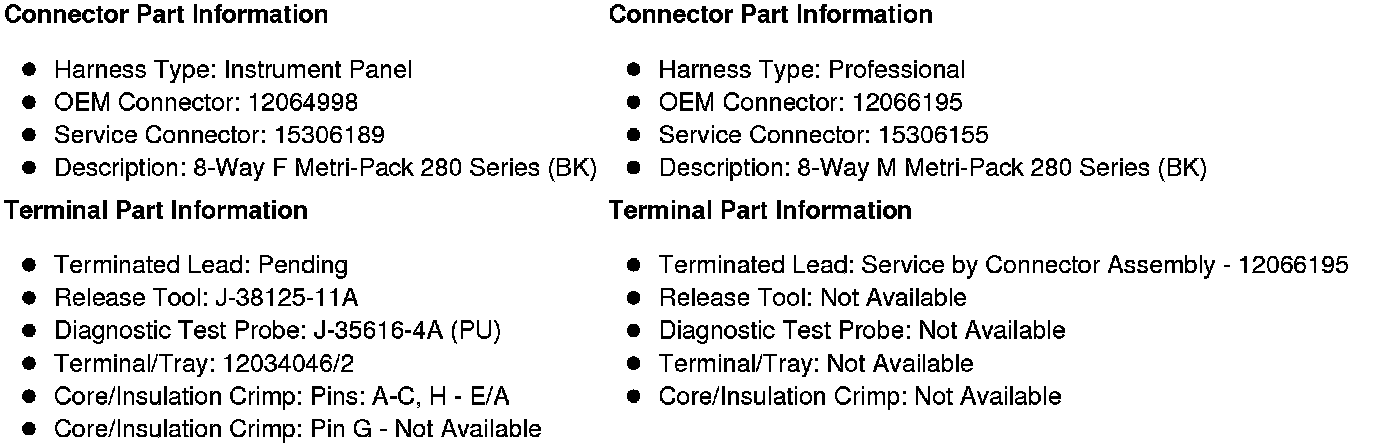

X278 Instrument Panel Harness to Professional Harness (PRP)
