Chevy Truck
>>
2013
>>
Express 3500 V8-6.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Number
>>
X100 - X199
>>
X177
X177
Inline Harness Connector End Views

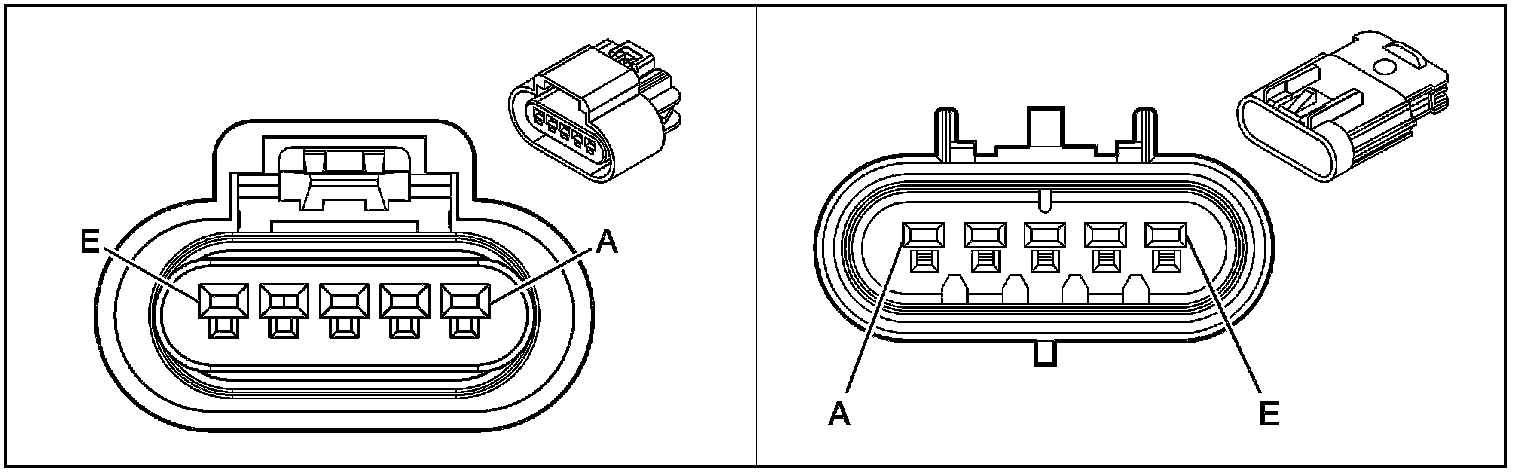

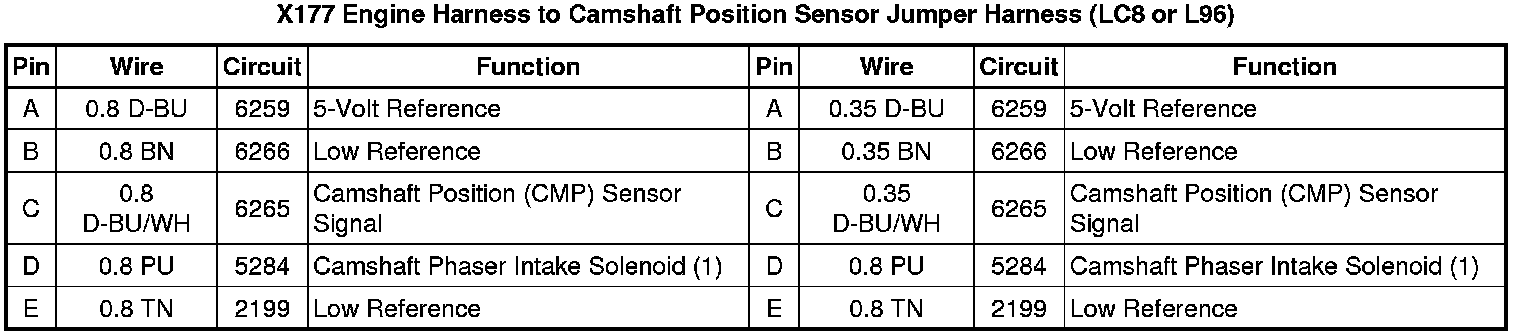

X177 Engine Harness to Camshaft Position Sensor Jumper Harness (LC8 or L96)
