X142
X142

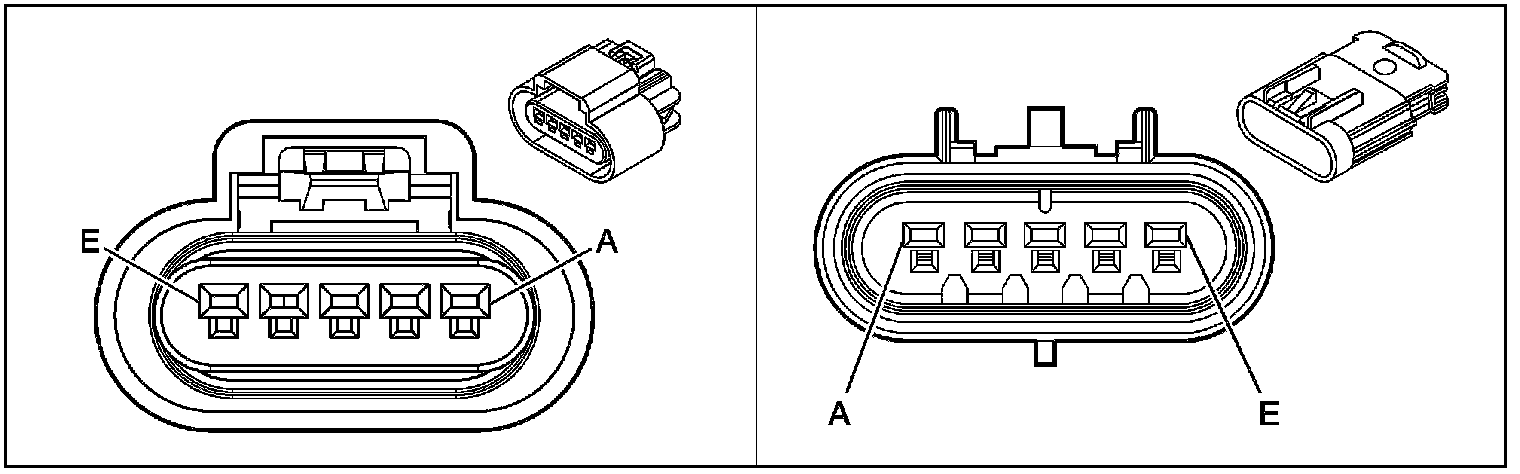

Inline Harness Connector End Views

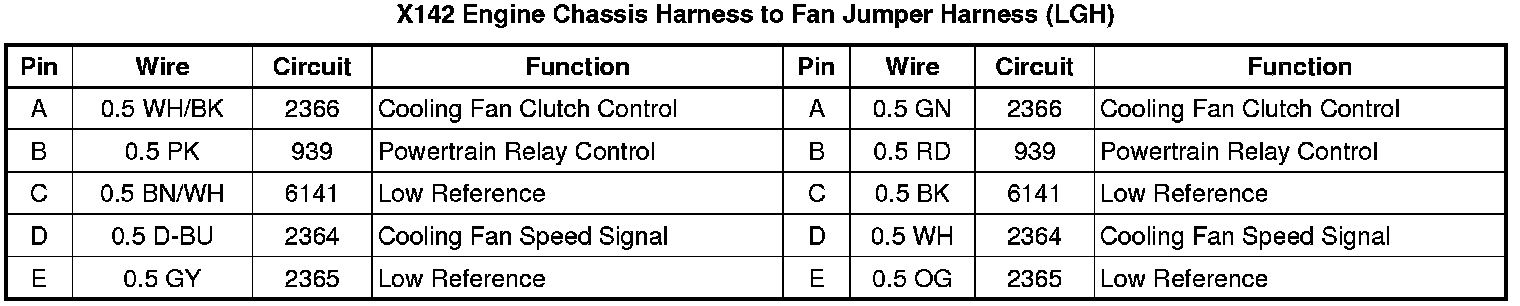

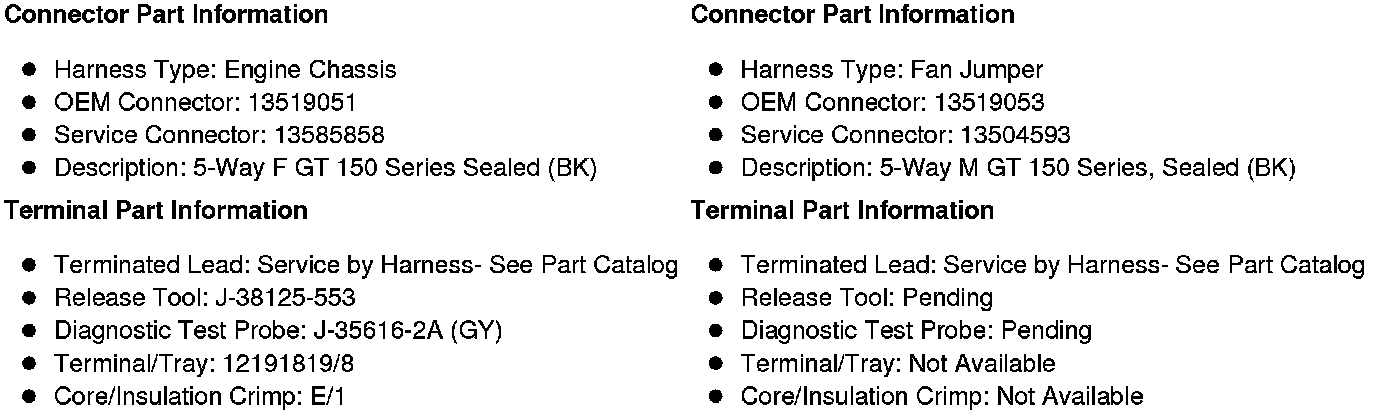

X142 Engine Chassis Harness to Fan Jumper Harness (LGH)
