X141

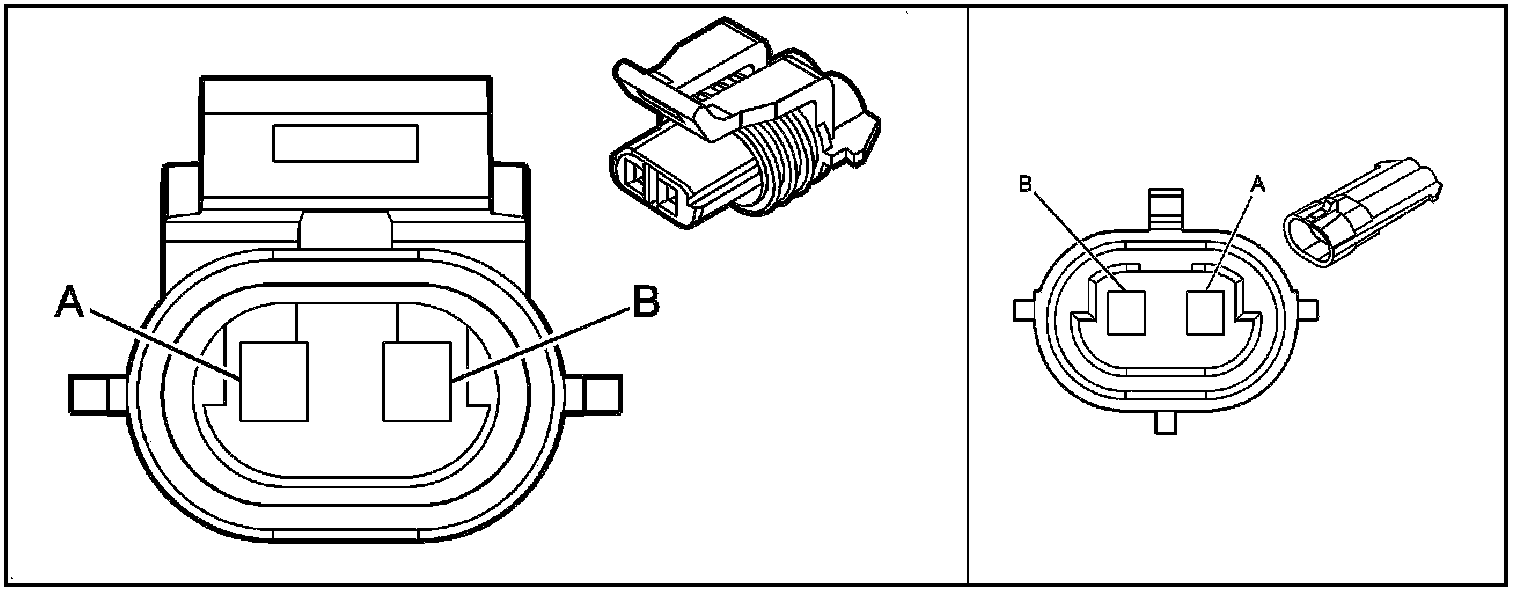

Inline Harness Connector End Views

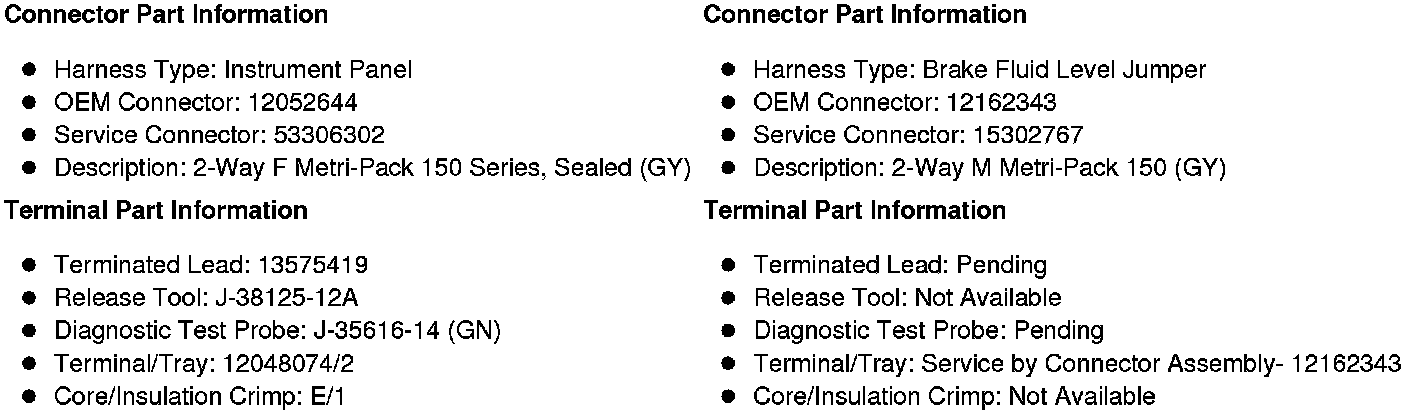

X141 Instrument Panel Harness to Brake Fluid Level Jumper Harness (UJ1)
