X115




Inline Harness Connector End Views

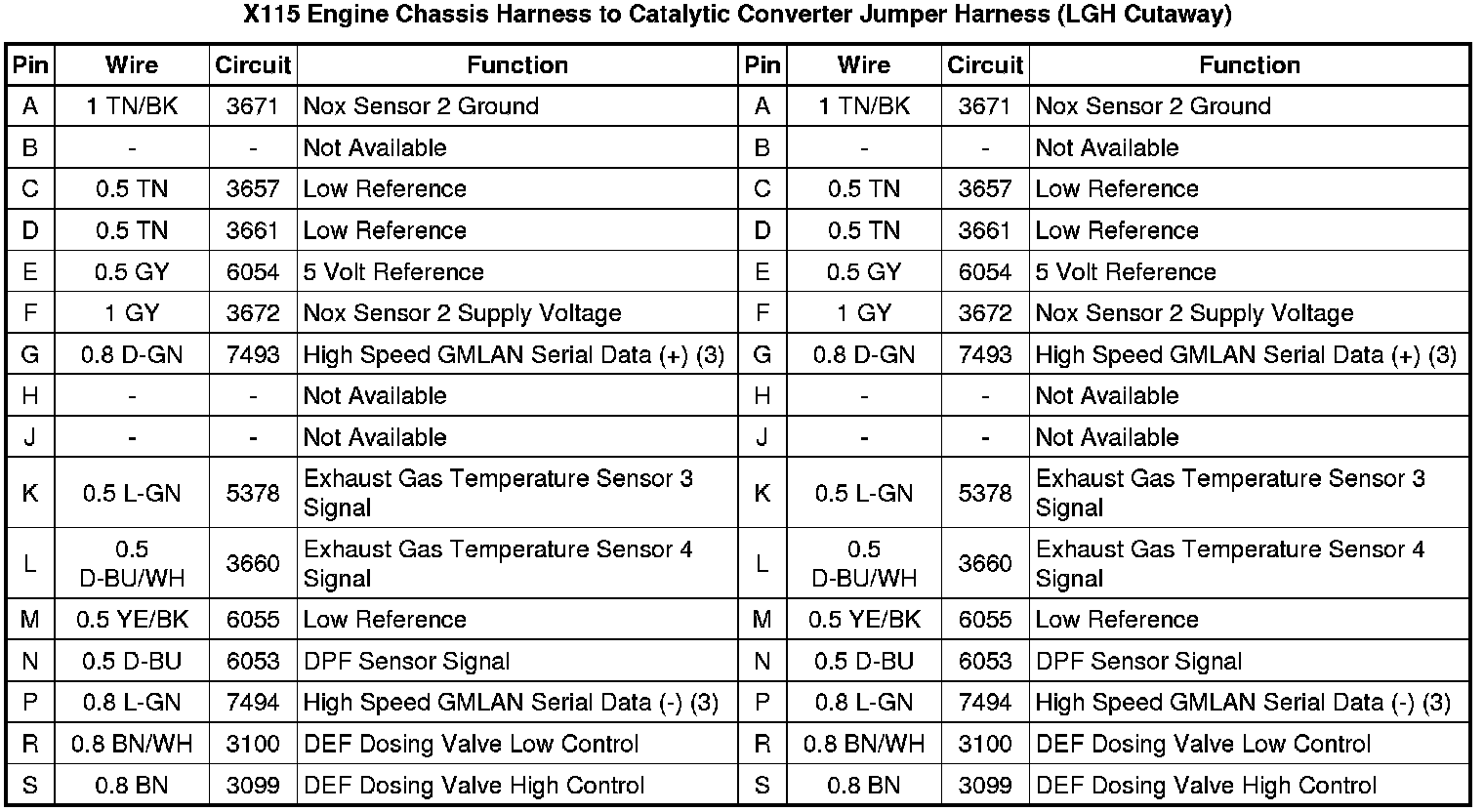

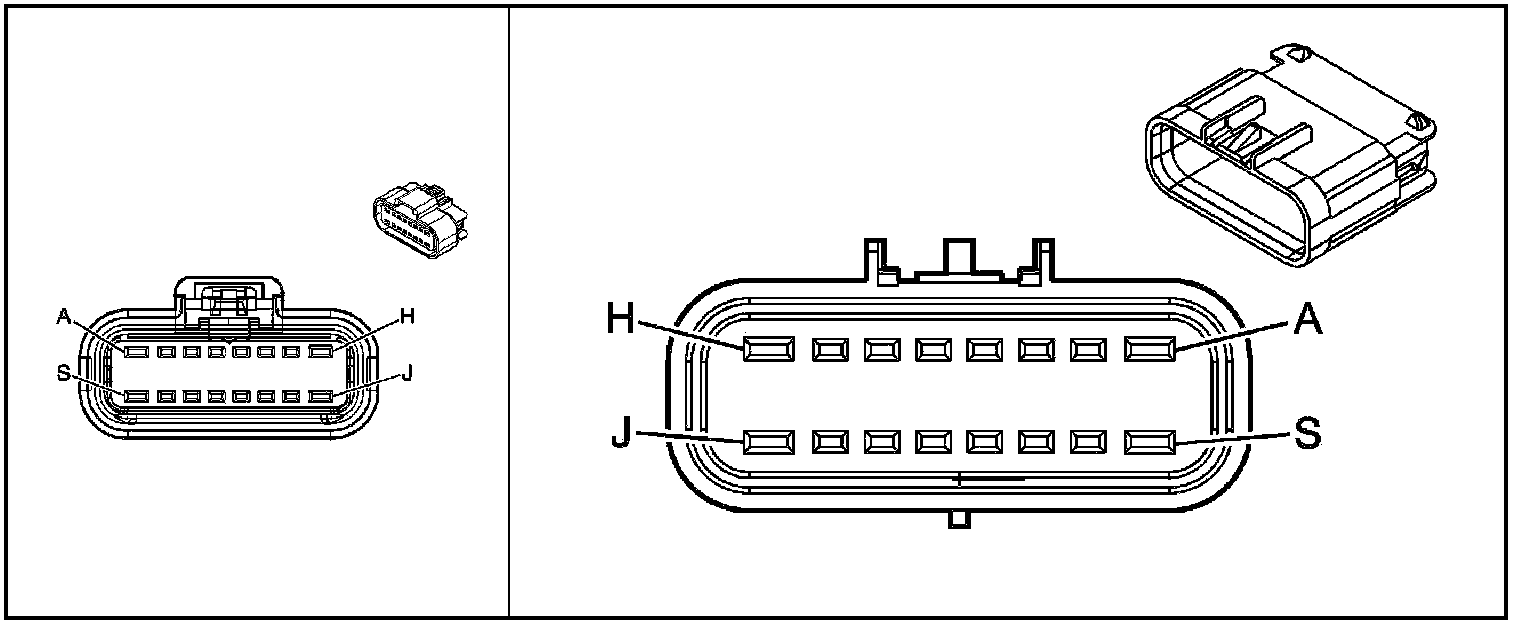

X115 Engine Chassis Harness to Catalytic Converter Jumper Harness (LGH Cutaway)
