Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X101

X101




Inline Harness Connector End Views

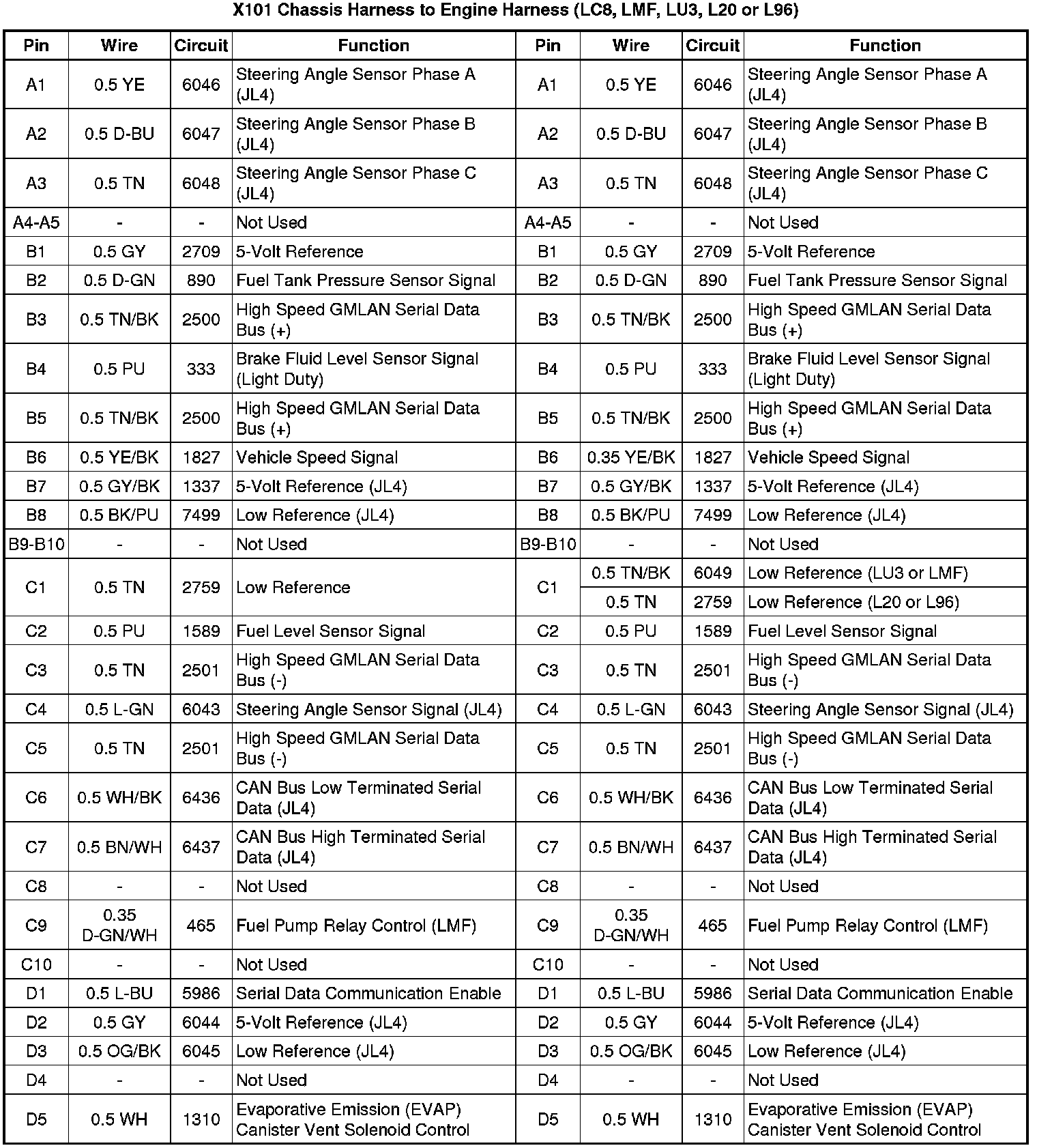

X101 Chassis Harness to Engine Harness (LC8, LMF, LU3, L20 or L96)
