Home
>>
Chevy Truck
>>
2013
>>
Express 3500 V8-6.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Steering Wheel Control Switch - Right (W1Y)
Steering Wheel Control Switch - Right (W1Y)
Component Connector End Views

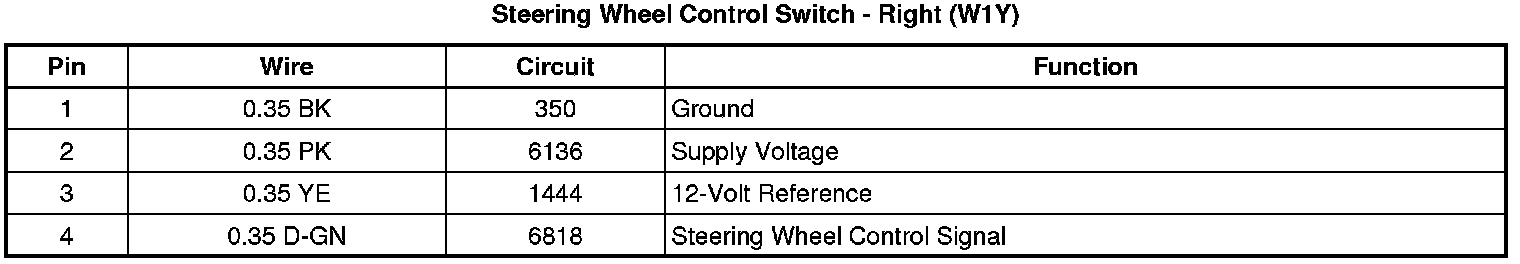

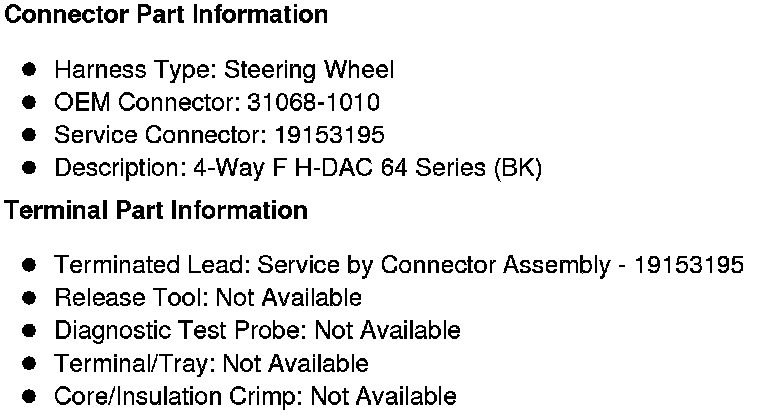

Steering Wheel Control Switch - Right (W1Y)
