Chevy Truck
>>
2013
>>
Express 3500 V8-6.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

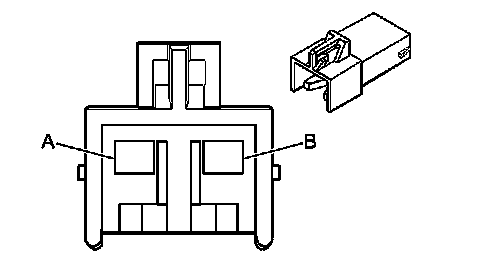

Connector End Views By Name
>>
Seat Belt Pretensioner - Driver (Light Duty)
Seat Belt Pretensioner - Driver (Light Duty)

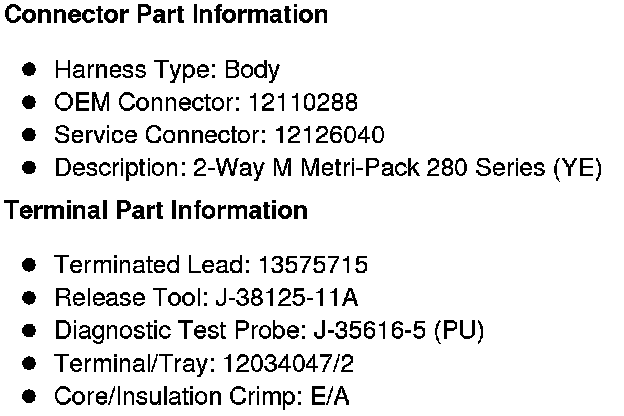

Component Connector End Views

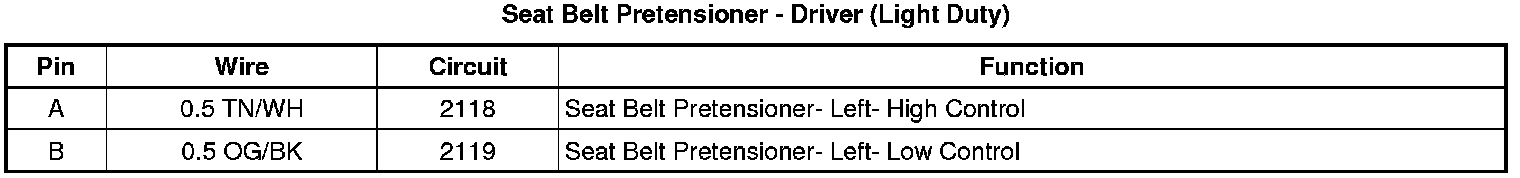

Seat Belt Pretensioner - Driver (Light Duty)
