Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Ignition Coil 8

Ignition Coil 8




Component Connector End Views

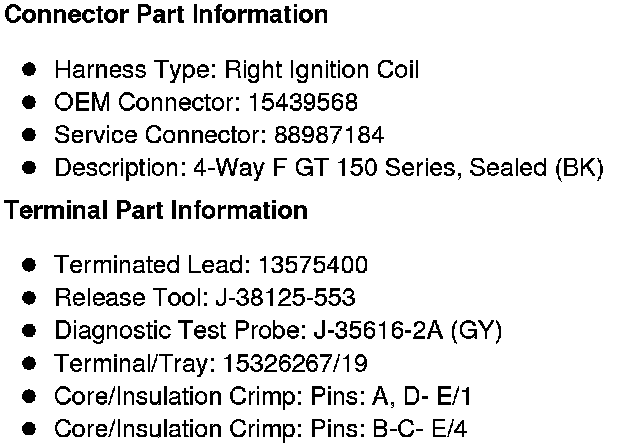

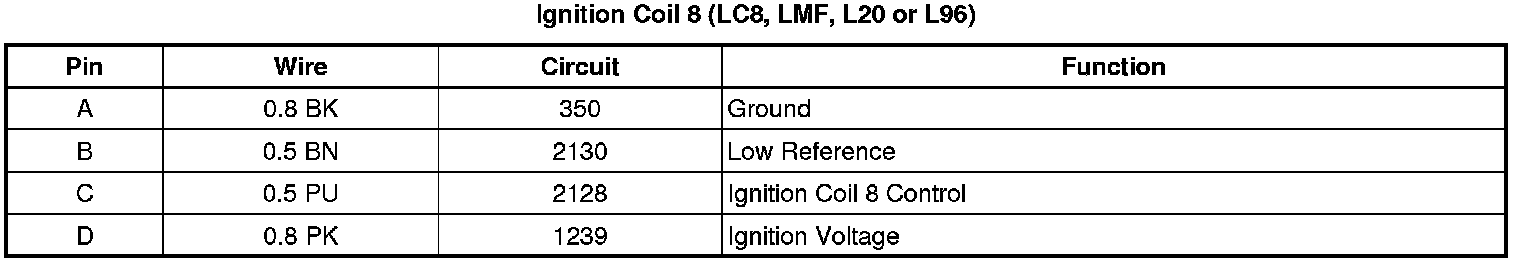

Ignition Coil 8 (LC8, LMF, L20 or L96)
