Fuel Pressure and Temperature Sensor (KO7 with UFM)
Fuel Pressure and Temperature Sensor (KO7 with UFM)

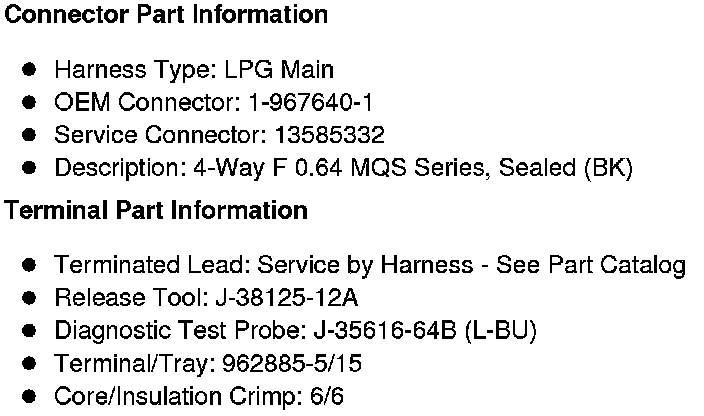

Component Connector End Views

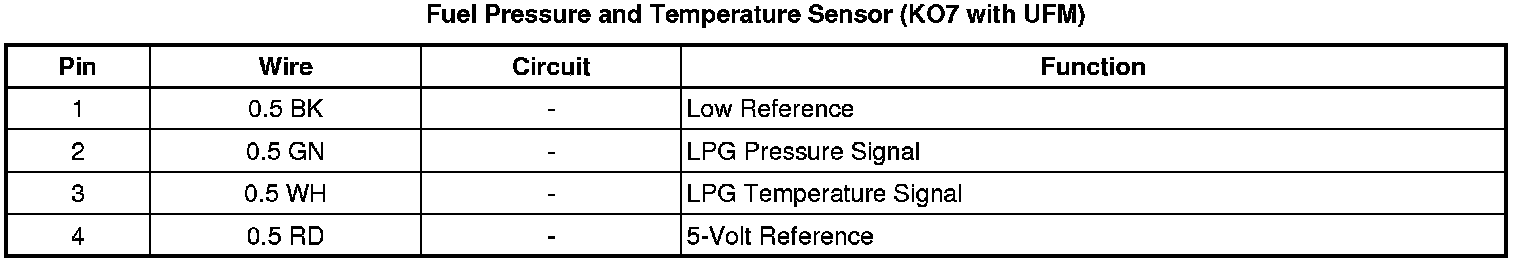

Fuel Pressure
and Temperature Sensor (KO7 with UFM)
