Connector End Views By Name
>>
Driver Information Center (DIC) Switch
Driver Information Center (DIC) Switch
Component Connector End Views

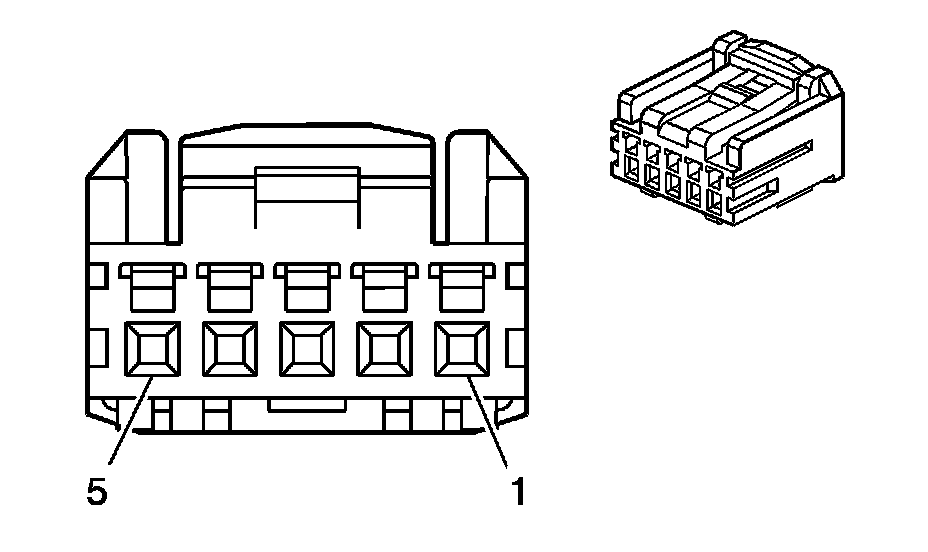

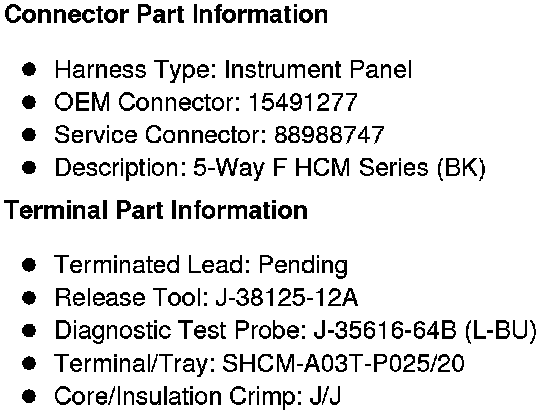

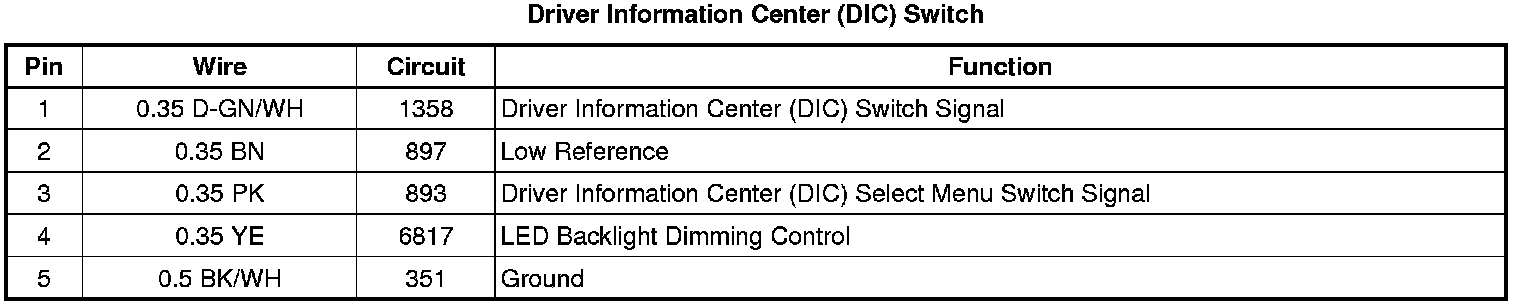

Driver Information Center (DIC) Switch
