Door Lock Actuator - Left Rear (E26 with AU3)
Door Lock Actuator - Left Rear (E26 with AU3)

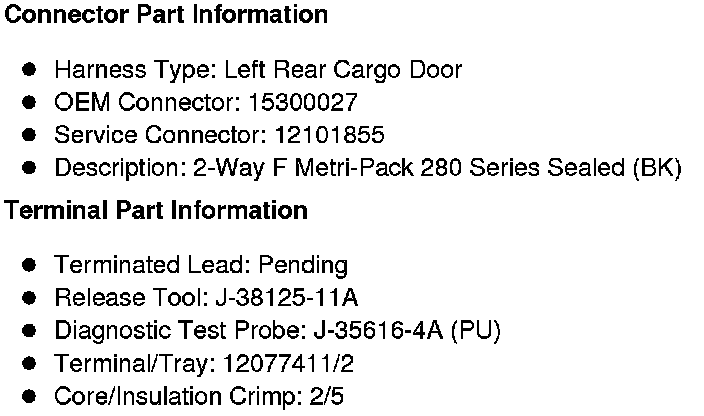

Component Connector End Views

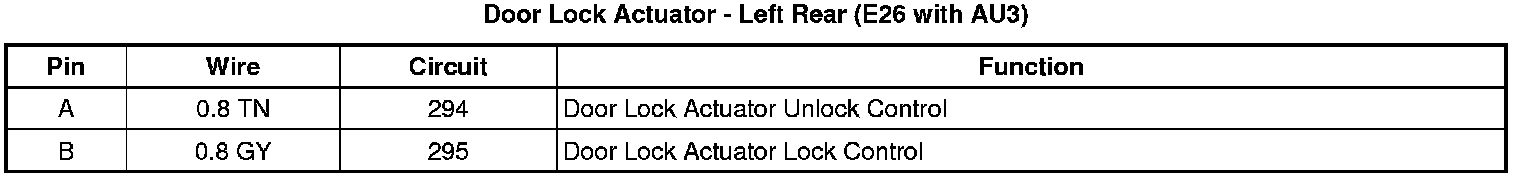

Door Lock Actuator - Left Rear (E26 with AU3)
