Home
>>
Chevy Truck
>>
2013
>>
Express 3500 V8-6.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Dome/Reading Lamps - Middle (Passenger)
Dome/Reading Lamps - Middle (Passenger)

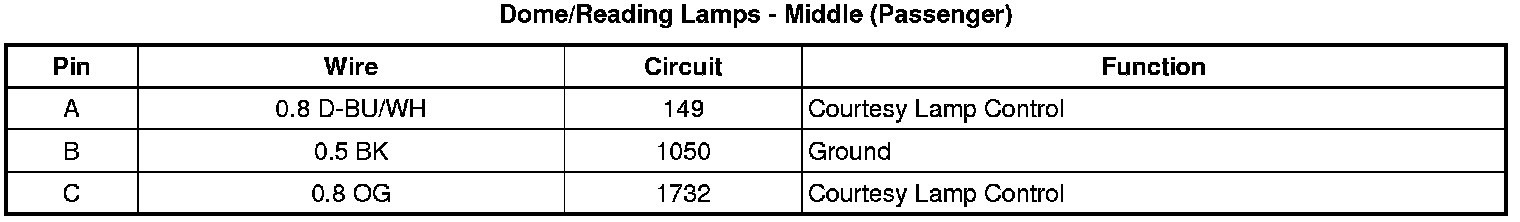

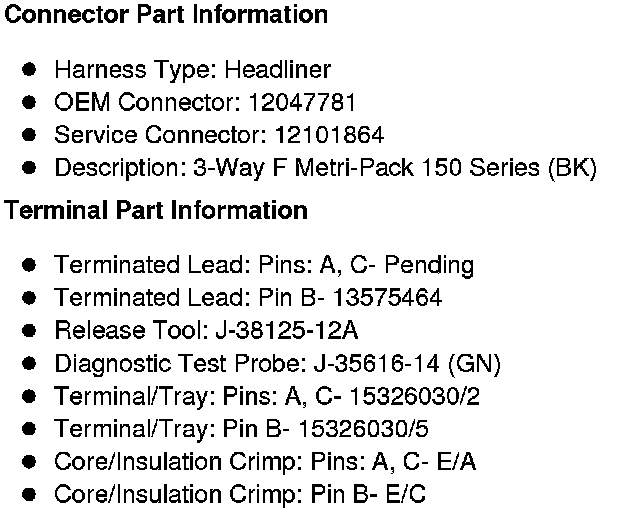

Component Connector End Views
Dome/Reading Lamps - Middle (Passenger)
