Blower Motor - Auxiliary (C36 with C69)
Blower Motor - Auxiliary (C36 with C69)
Component Connector End Views

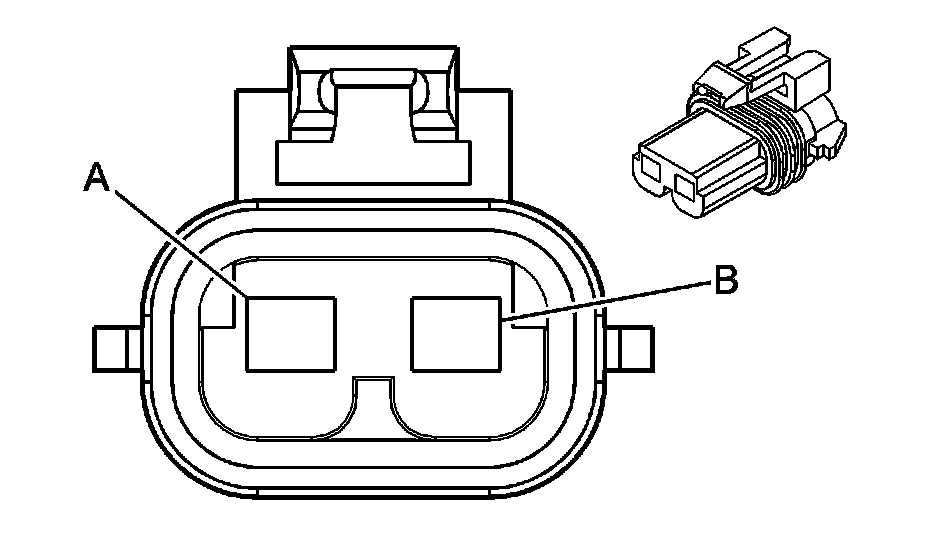

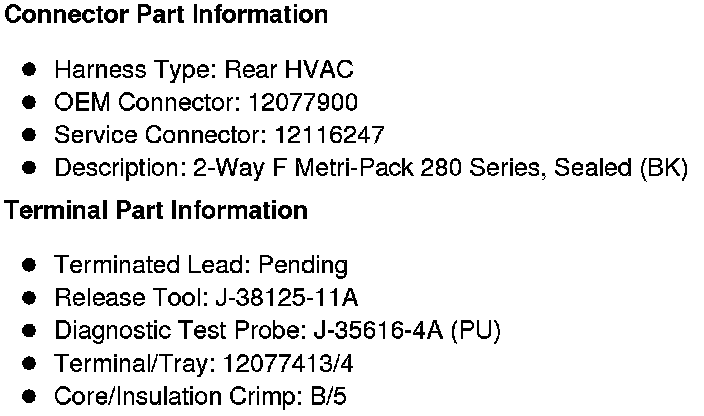

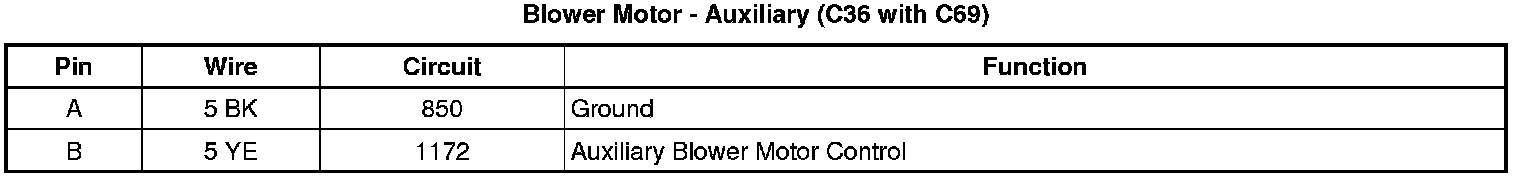

Blower Motor - Auxiliary (C36 with C69)
