Fuse Block - Rear (PRP) - Bottom View
Fuse Block - Rear (PRP) - Bottom View
Electrical Center Identification Views

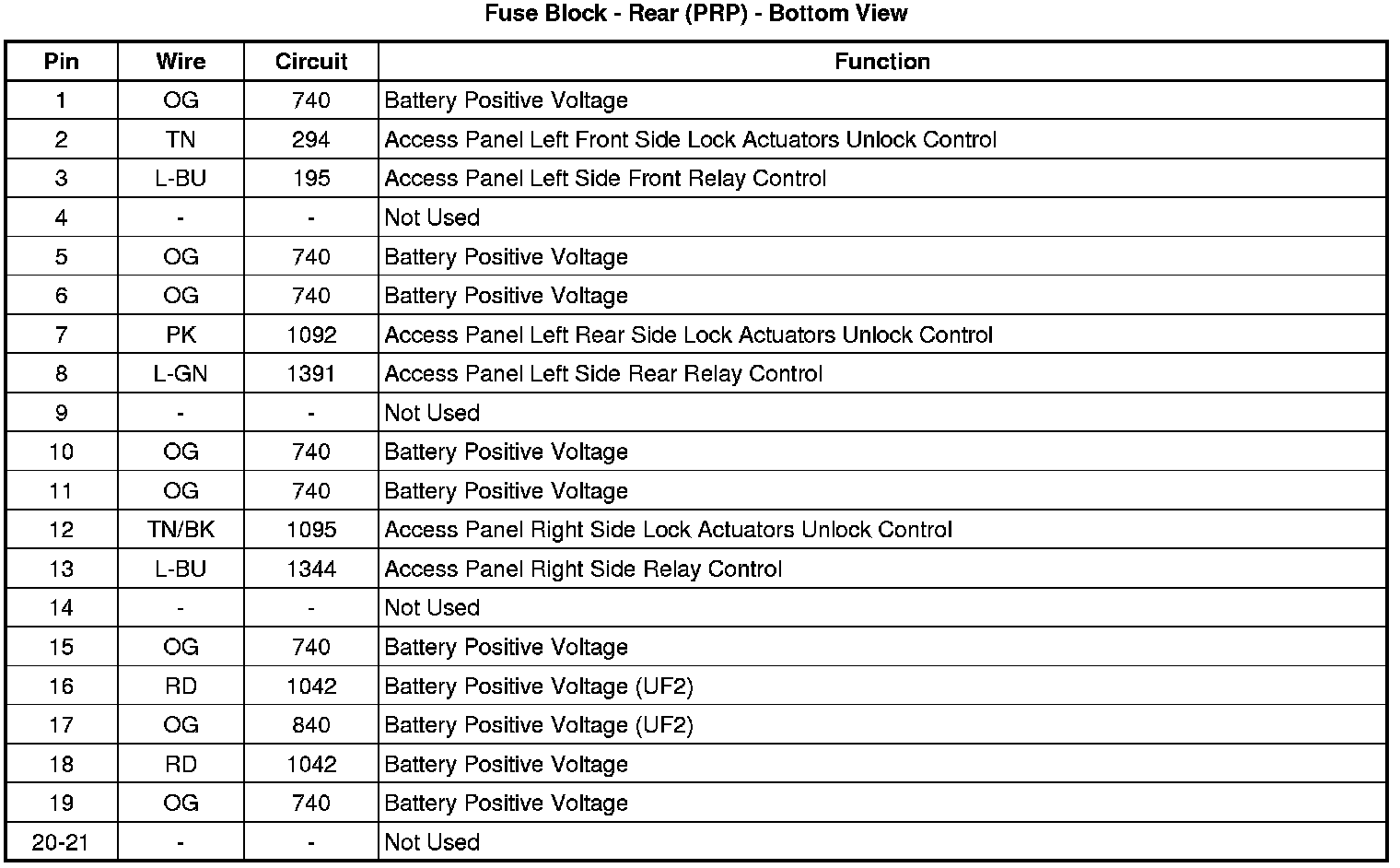

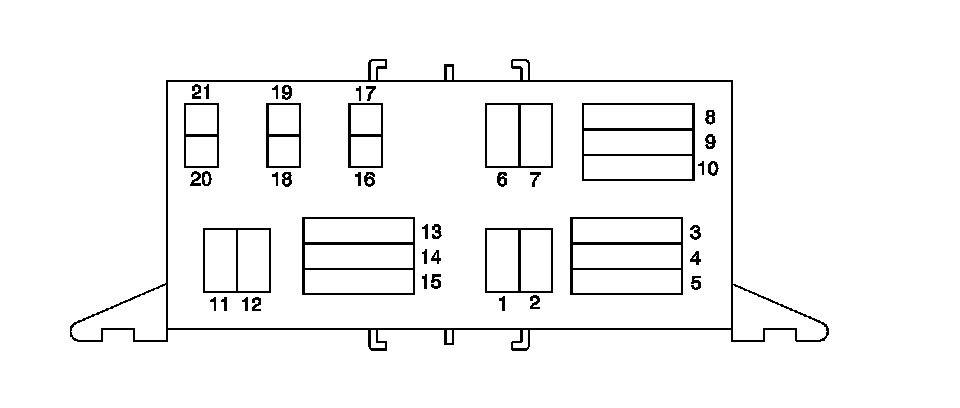

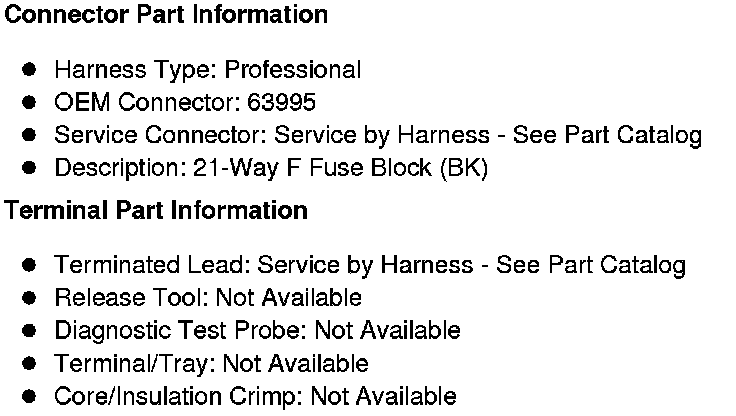

Fuse Block - Rear (PRP) - Bottom View
