Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4L60-E/4L65-E/4L70-E - Automatic Transmission >> Reverse Input Clutch Backing Plate Selection

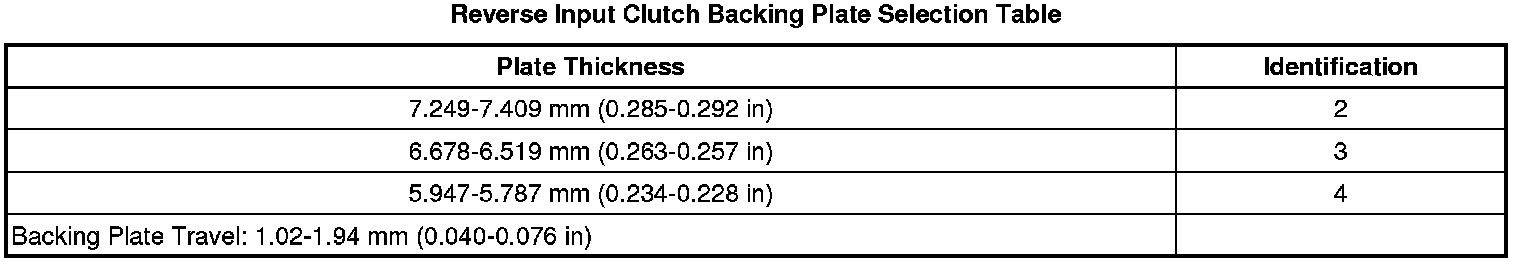

Reverse Input Clutch Backing Plate Selection




Reverse Input Clutch Backing Plate Selection
