Fuel Tank (NE7)




Wheels/Vehicle Underbody Component Views

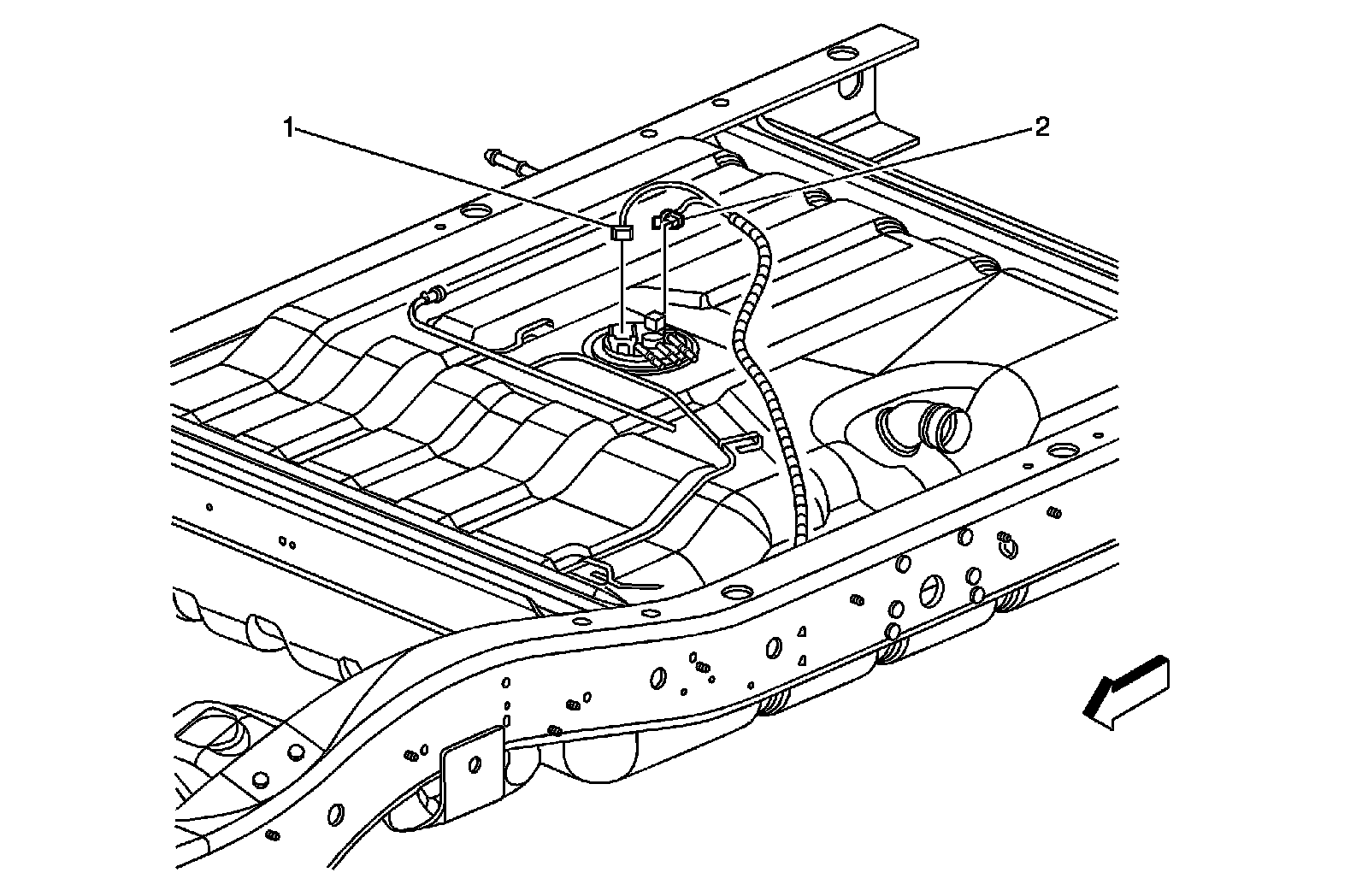

Fuel Tank (NE7)





1 - Fuel Tank Pressure (FTP) Sensor Connector (Gas)

2 - Fuel Pump and Sender Assembly Connector (Gas)/Fuel Level Sensor (Diesel)
