Fuel Gauge Sender: Service and Repair

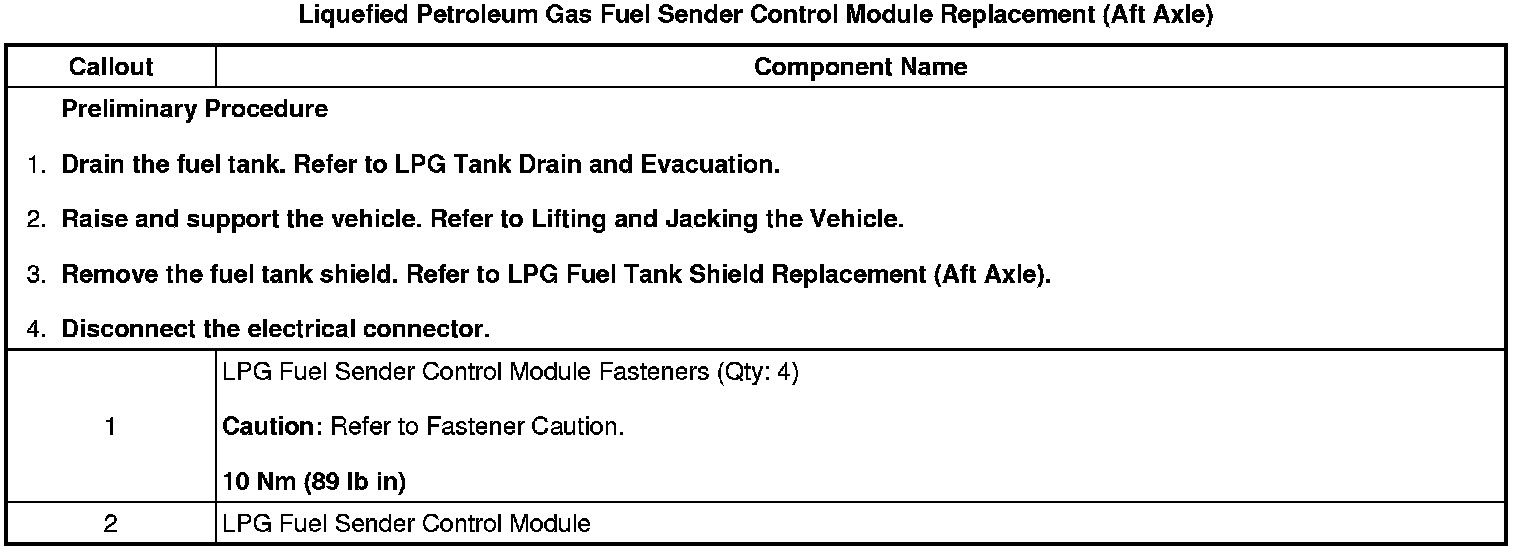

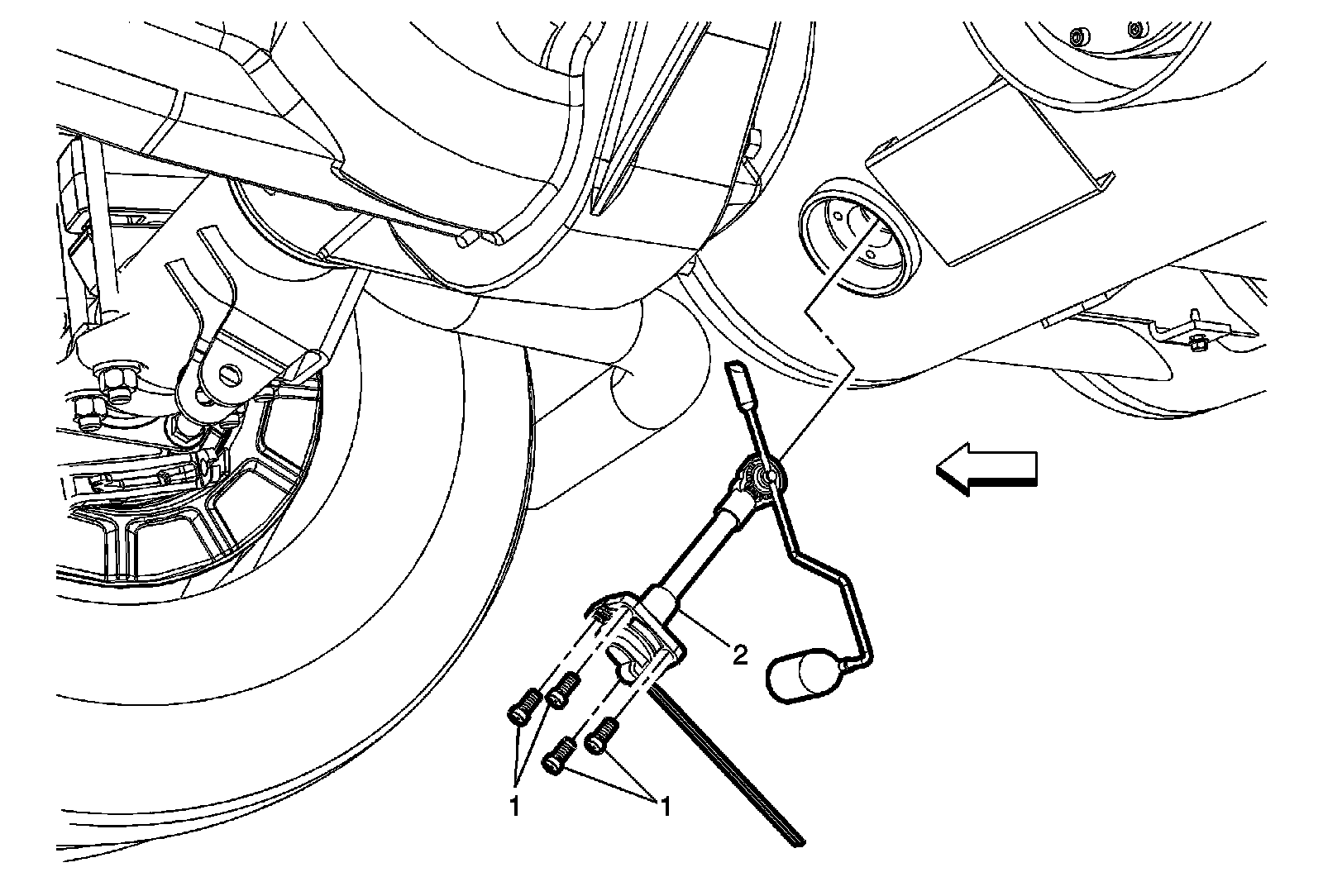

Liquefied Petroleum Gas Fuel Sender Control Module Replacement (Aft Axle)
