Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (Gas except Cutaway)

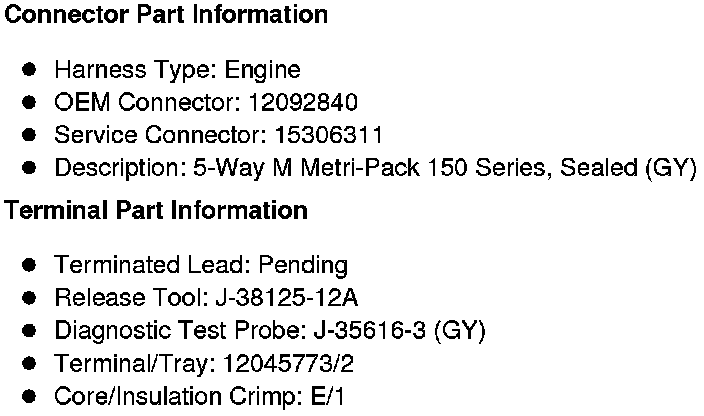

Component Connector End Views

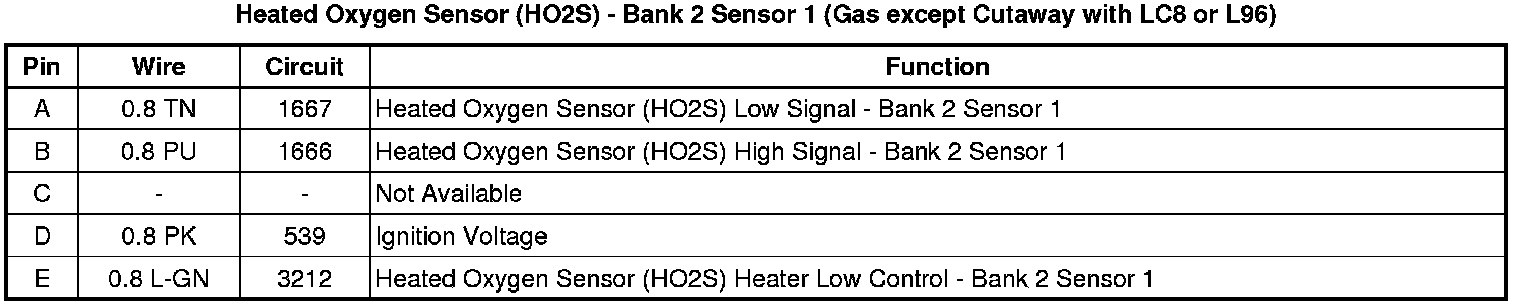

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (Gas except Cutaway with LC8 or L96)
