Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (Cutaway)

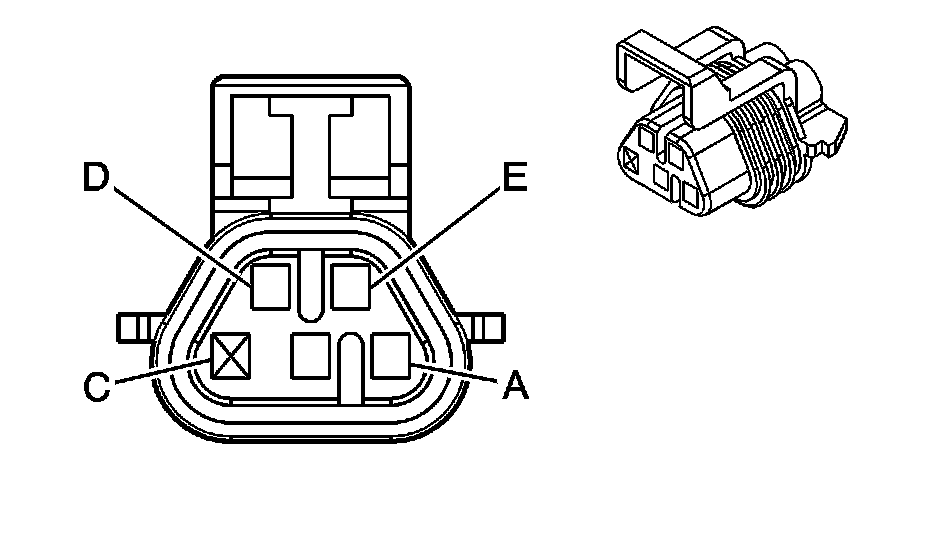

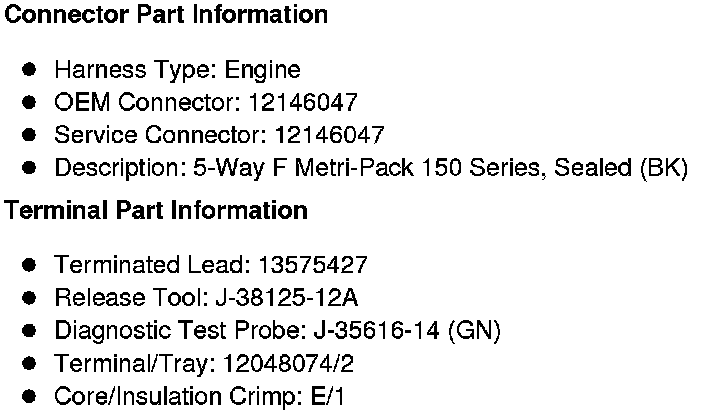

Component Connector End Views

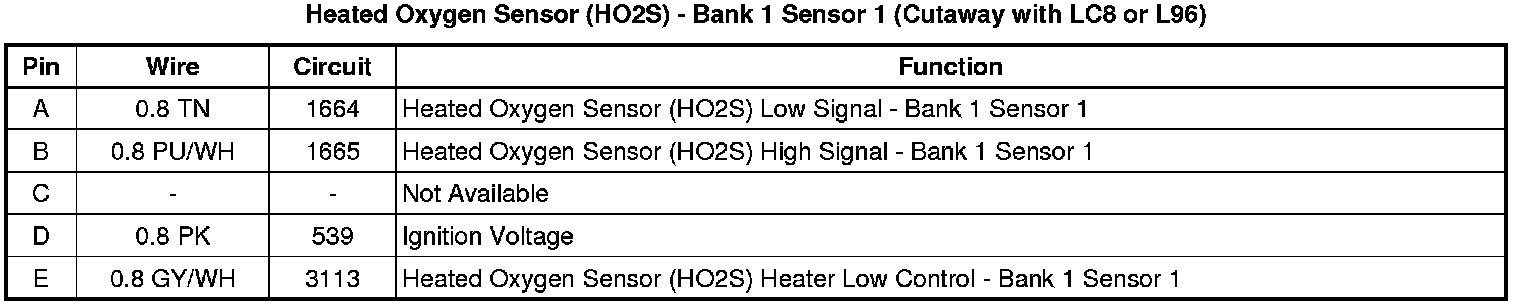

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (Cutaway with LC8 or L96)
