Chevy Truck
>>
2013
>>
Express 3500 V8-6.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Service and Repair
>>
Removal and Replacement
>>

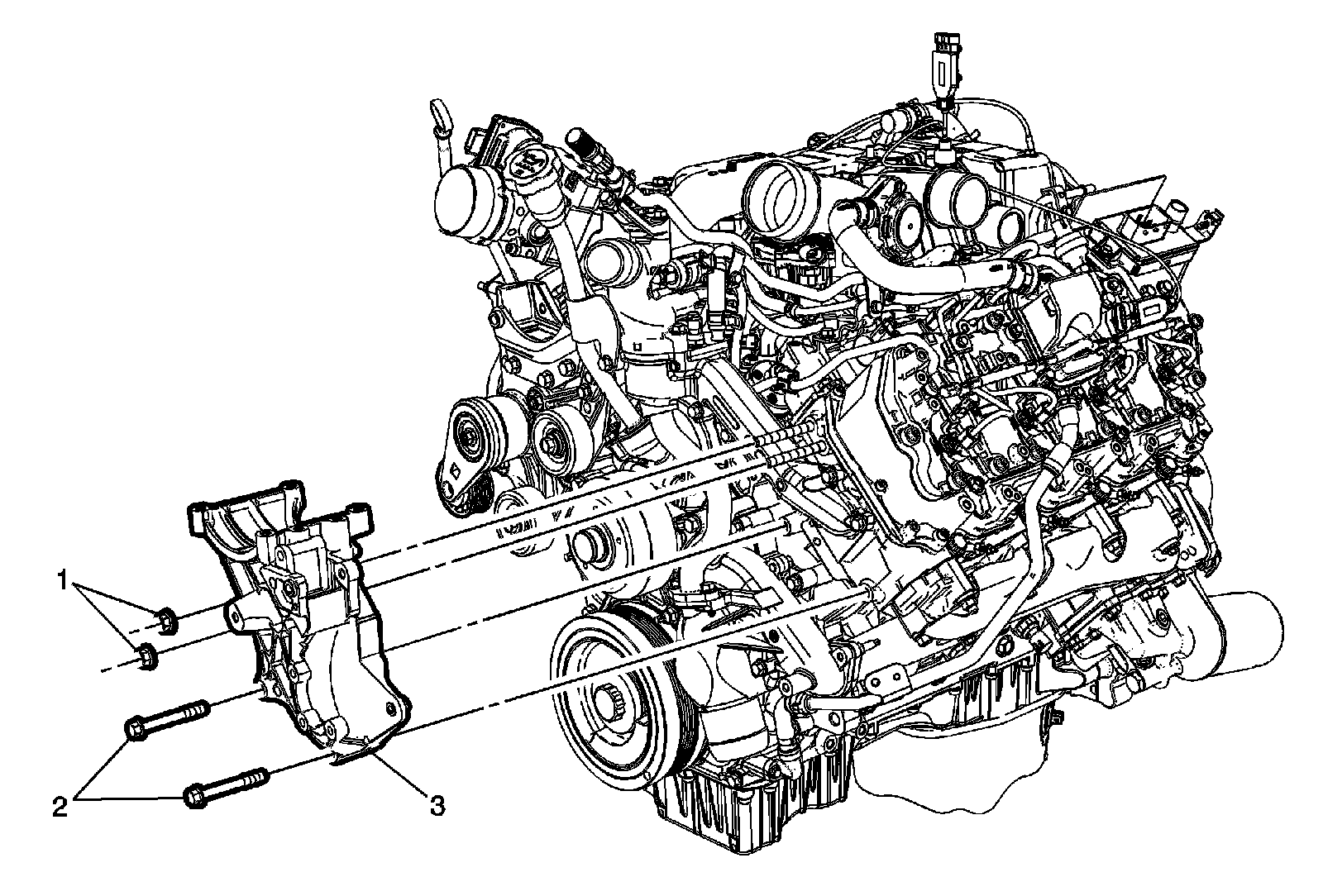

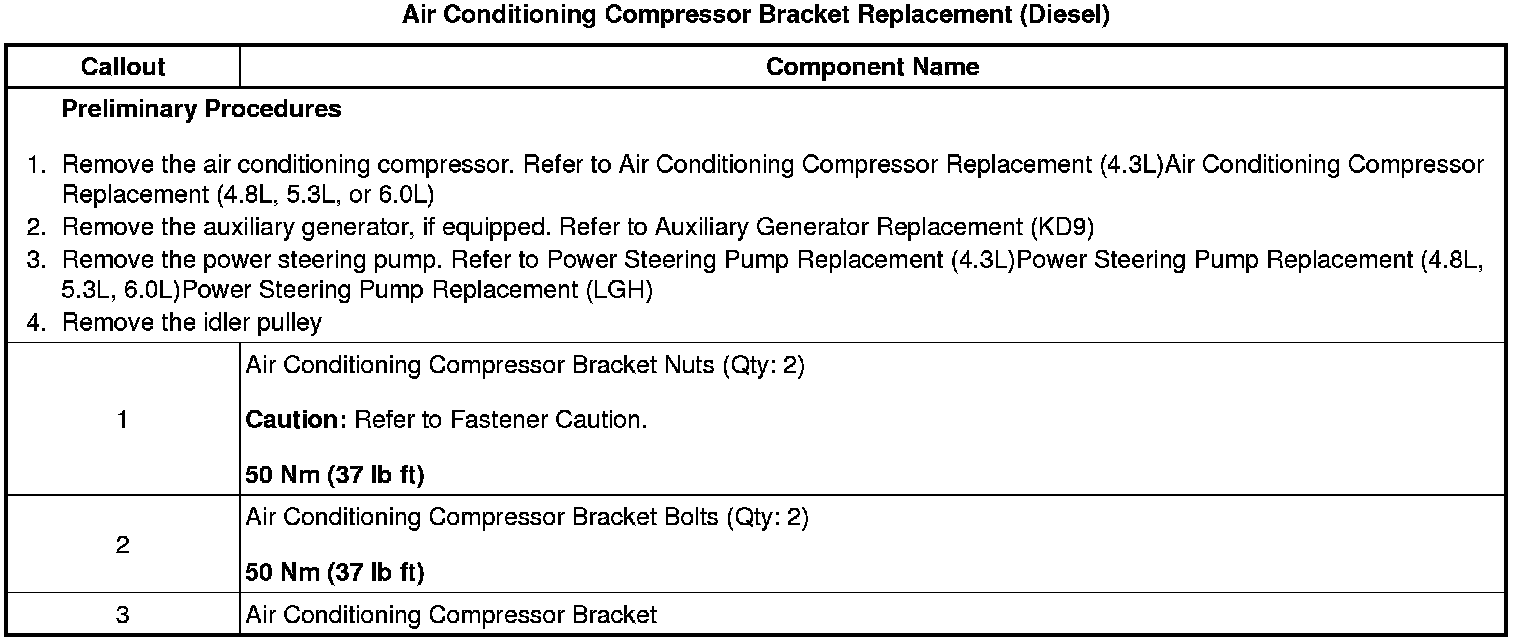

Air Conditioning Compressor Bracket Replacement (Diesel)
Air Conditioning Compressor Bracket Replacement (Diesel)
Air Conditioning Compressor Bracket Replacement (Diesel)
