Upfitter Provision Schematics

Upfitter Provision Schematics

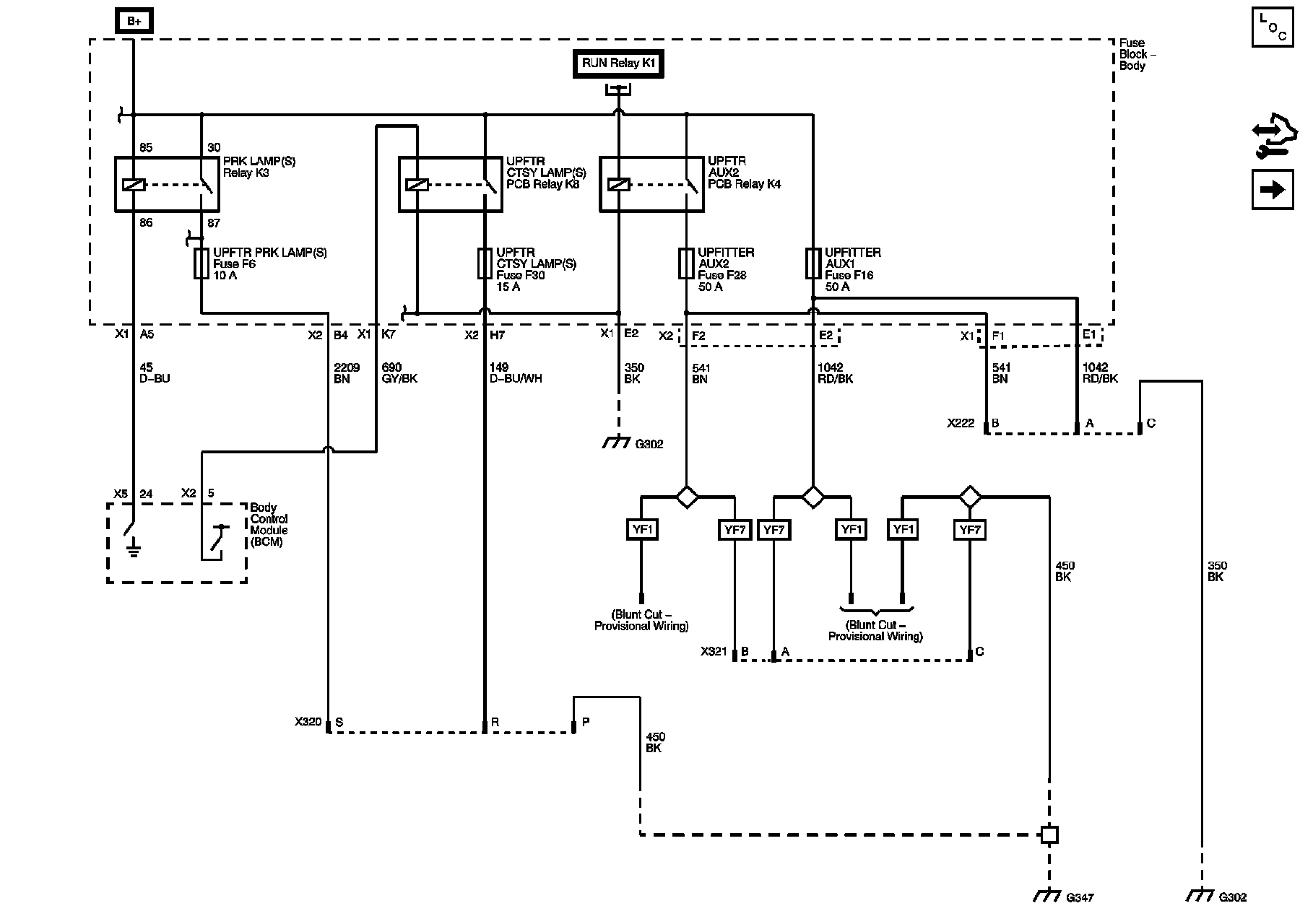

Power, Ground and Relay Controls

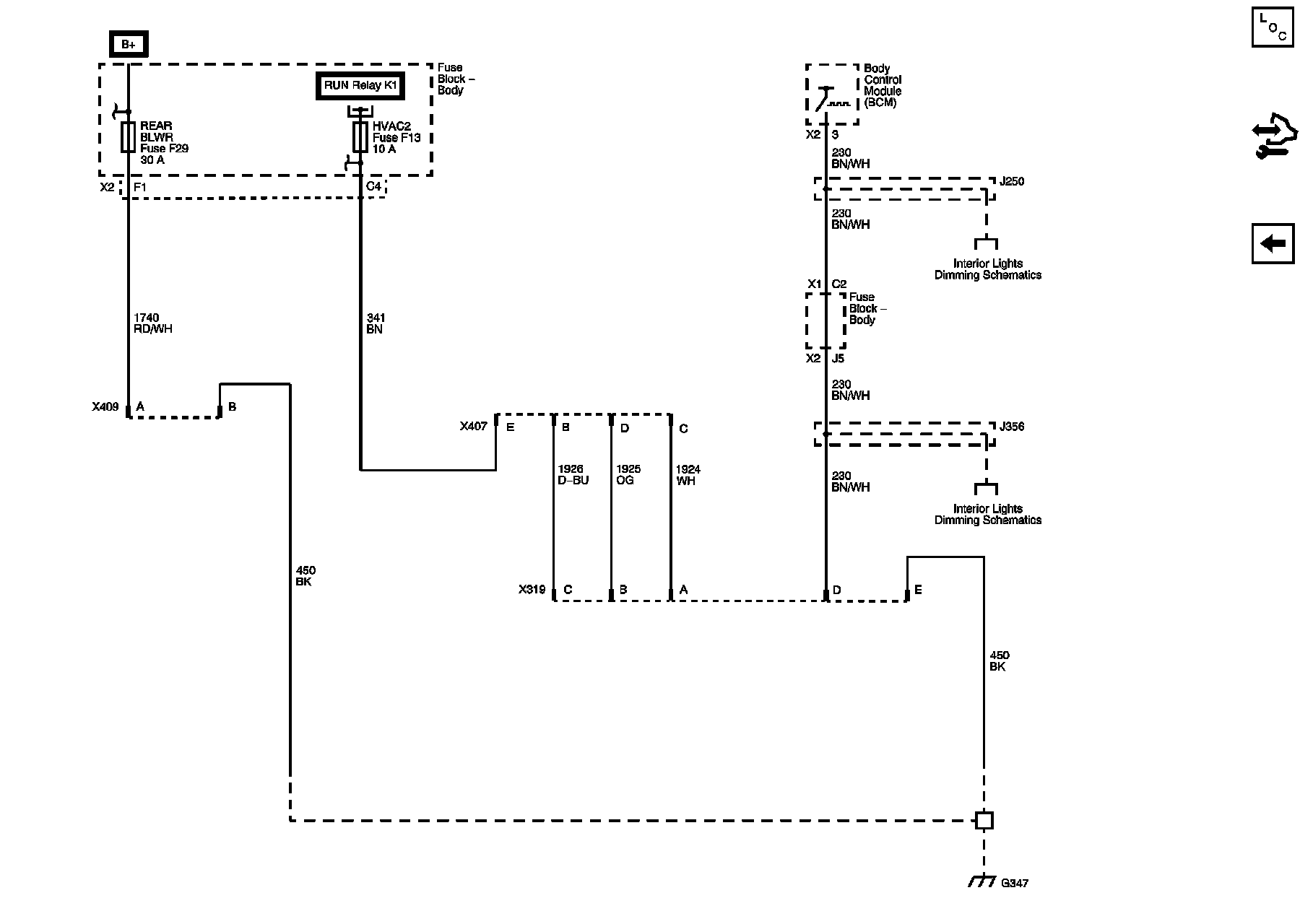

Rear Heat Auxiliary (ENC)
