Interior Lights Schematics




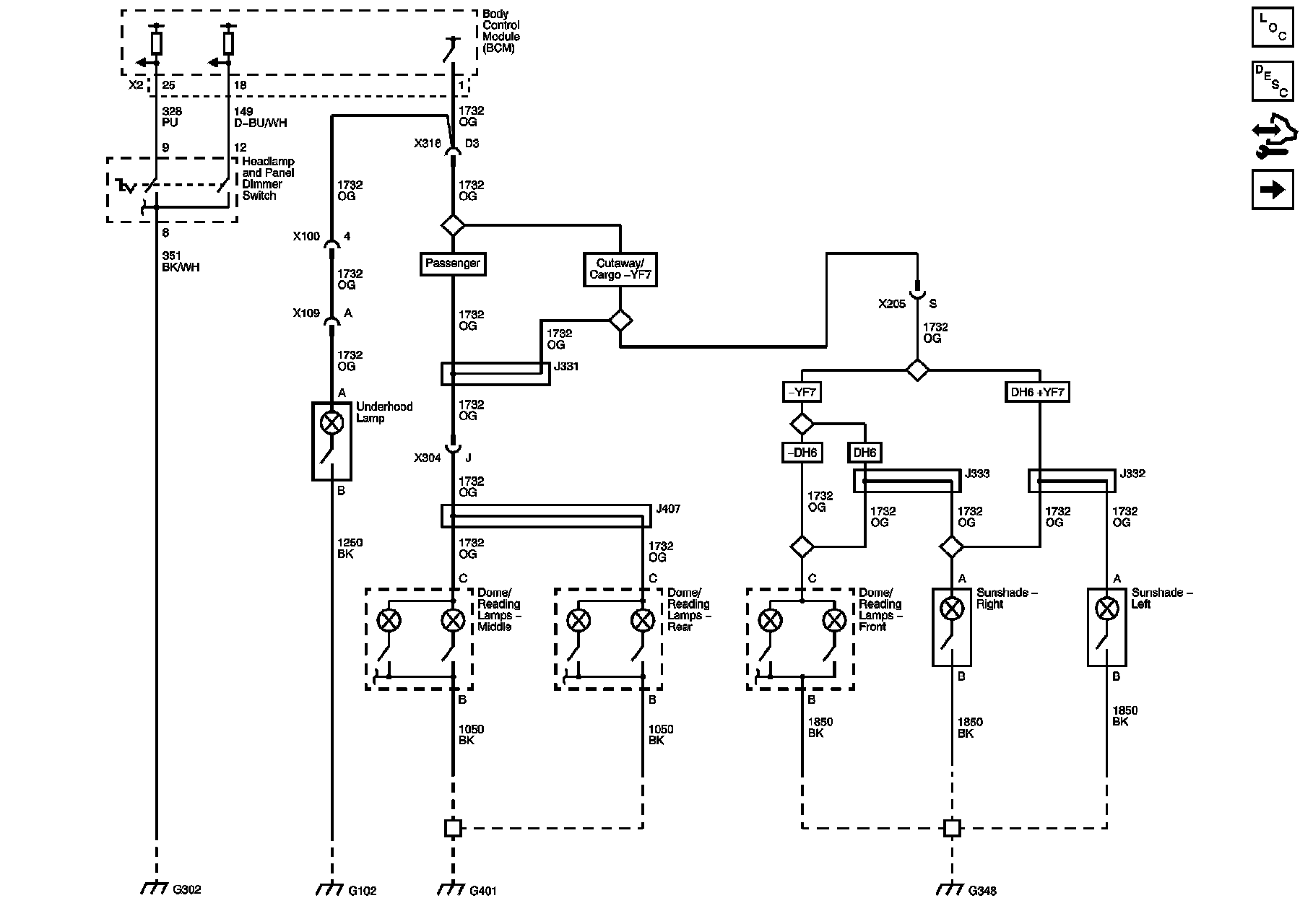

Interior Lights Schematics

Inadvertent Lamp Control





G102, G110 and G120

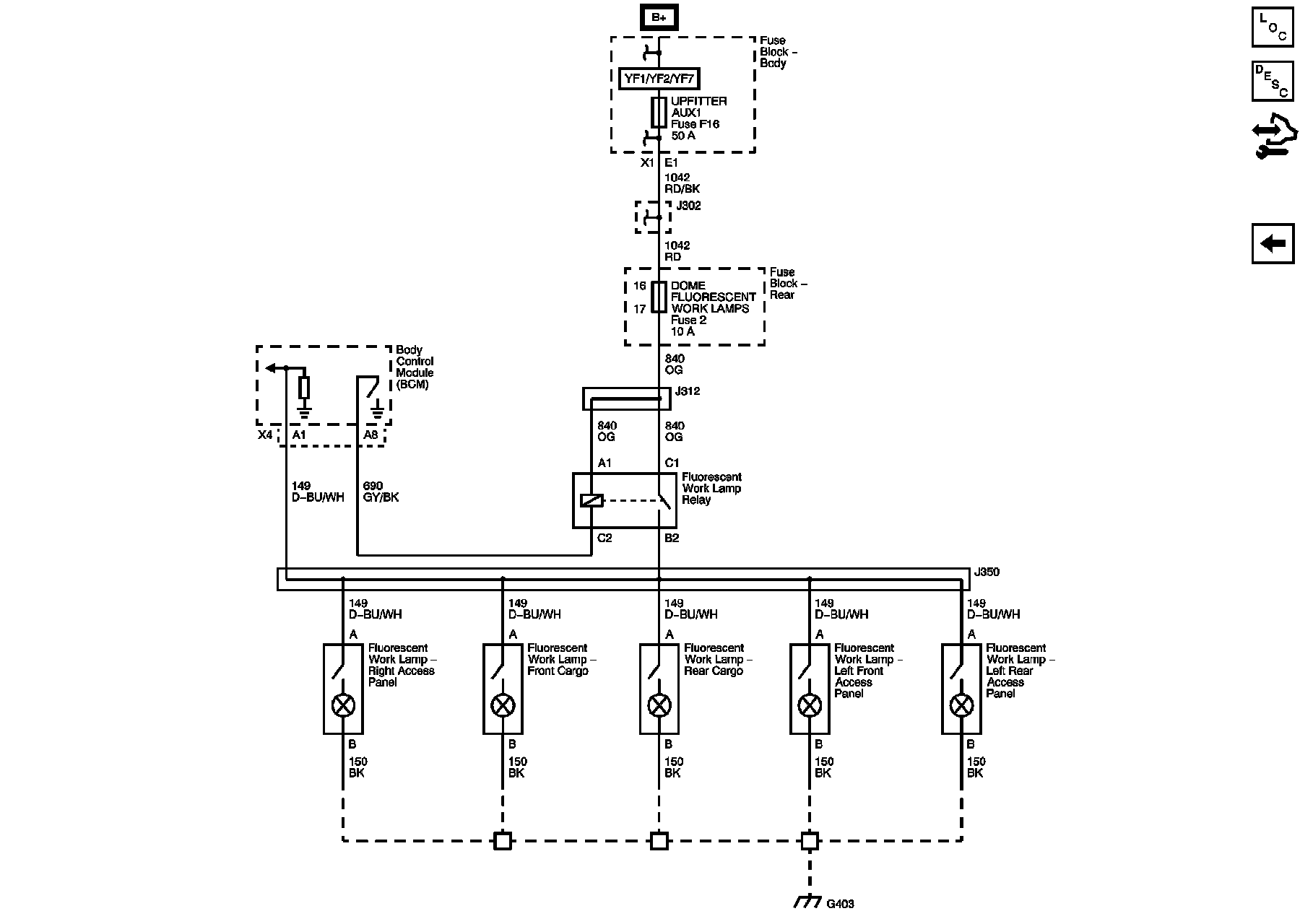

Dome Fluorescent Work Lamps (PRP with UF2)
