Front and Rear Headliner Harness Routing




Harness Routing Views

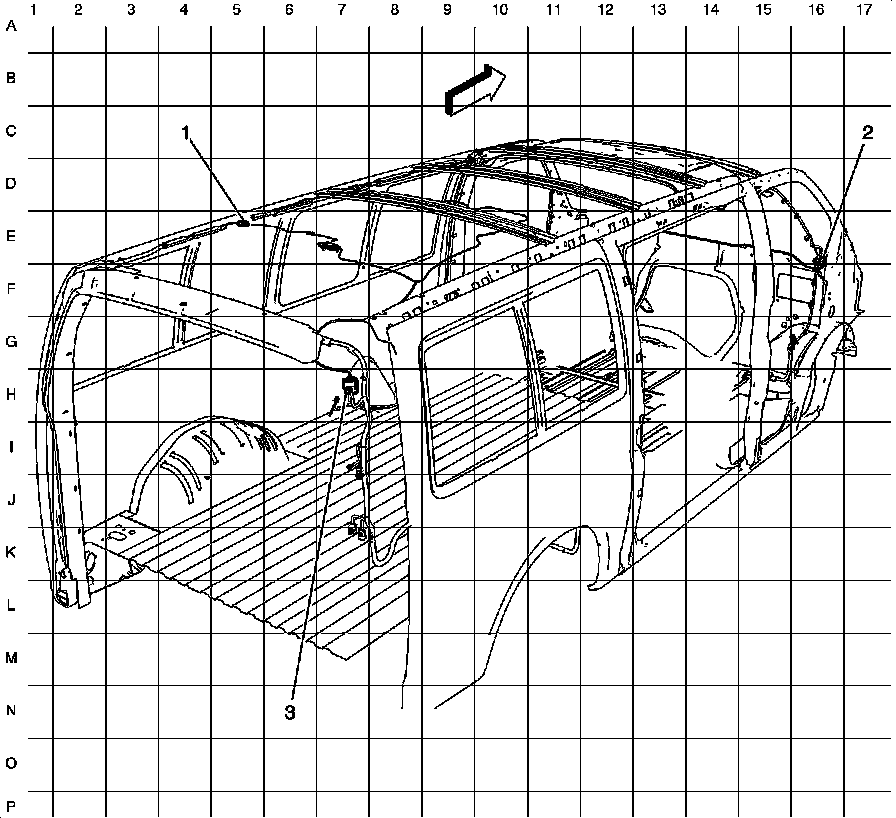

Front and Rear Headliner Harness Routing





1 - X417 (Cargo without YF7)

2 - X205

3 - X420 (Passenger)
