Engine Harness Routing - Left Rear




Harness Routing Views

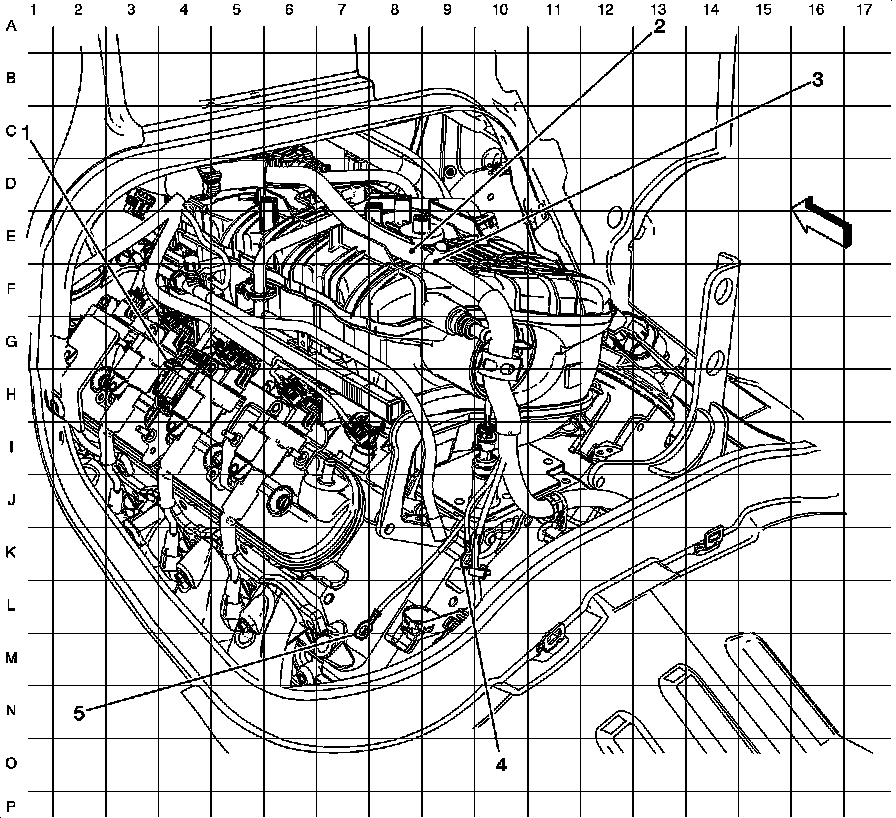

Engine Harness Routing- Left Rear (LC8, L20, or L96)





1 - X126

2 - J101

3 - J102

4 - G103

5 - G102
