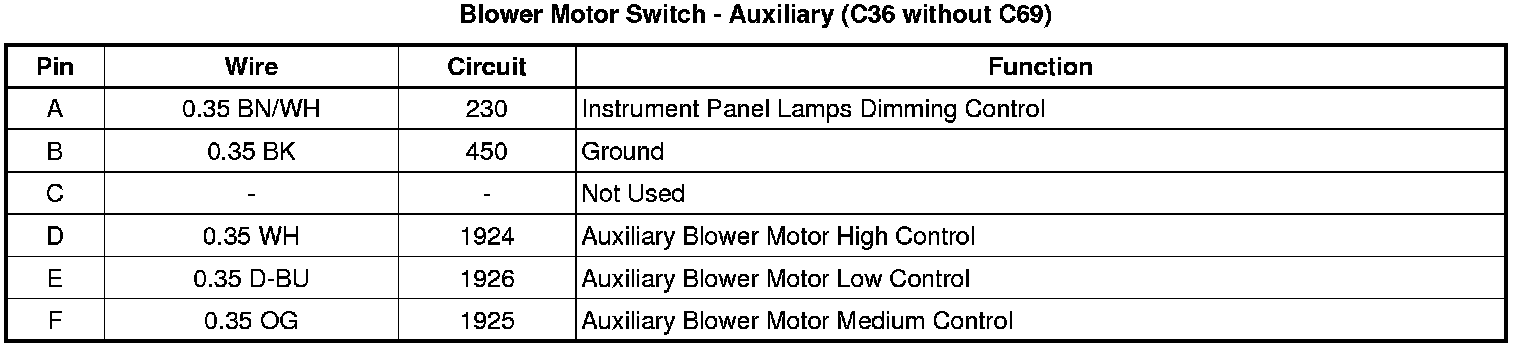

Blower Motor Switch - Auxiliary (C36 without C69)
Blower Motor Switch - Auxiliary (C36 without C69)
Component Connector End Views

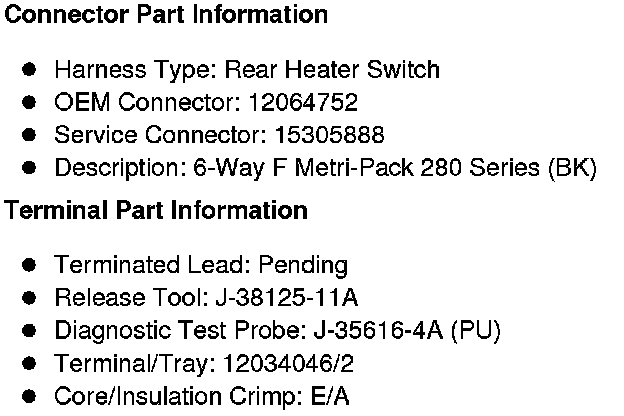

Blower Motor Switch
- Auxiliary (C36 without C69)
