Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

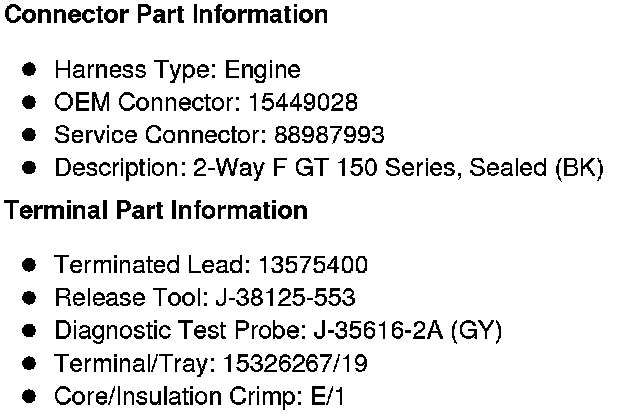

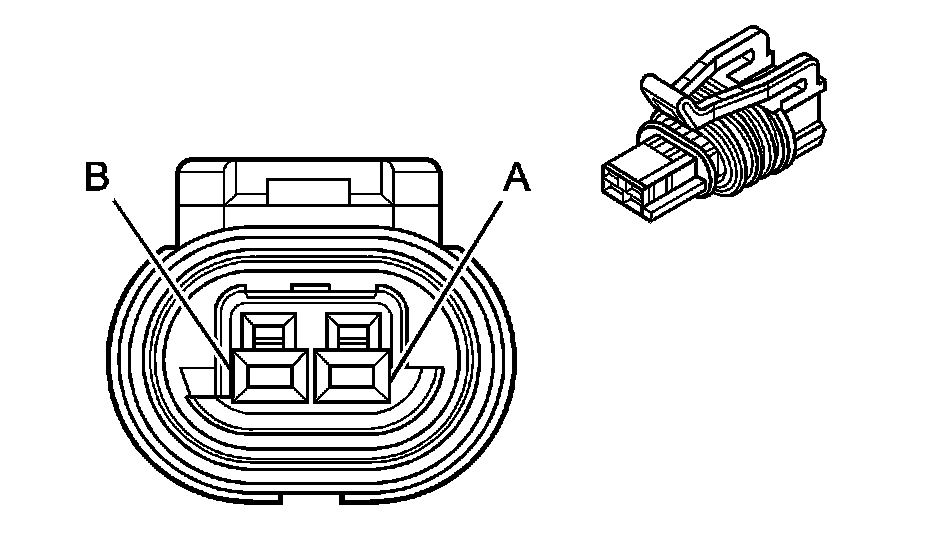

Component Connector End Views

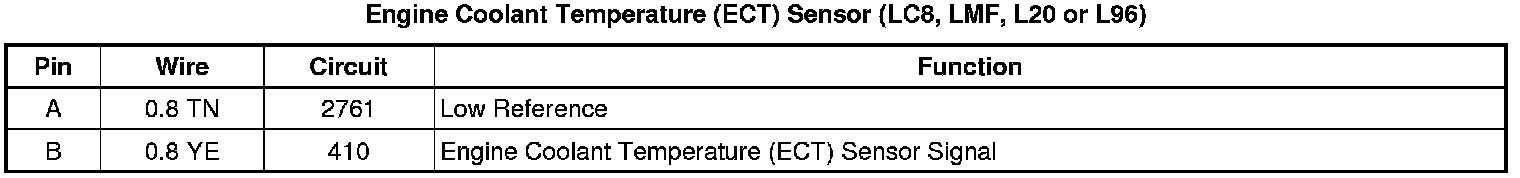

Engine Coolant Temperature (ECT) Sensor (LC8, LMF, L20 or L96)
