Control Module HVAC
Control Module HVAC

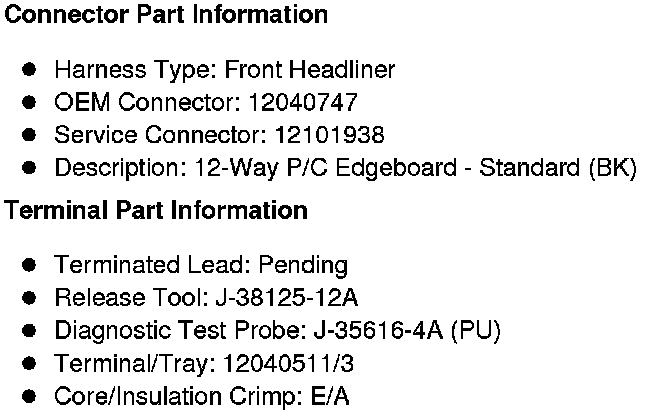

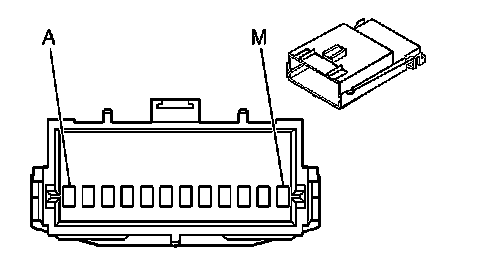

Component Connector End Views

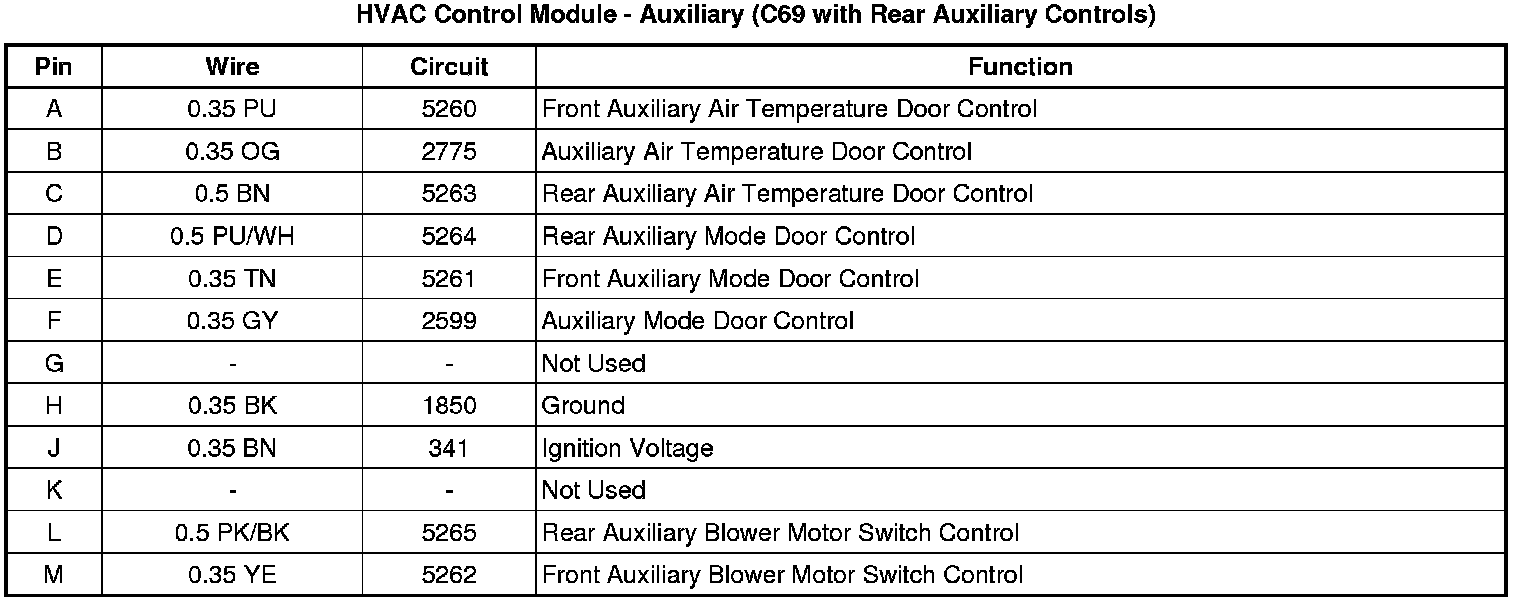

HVAC Control Module - Auxiliary (C69 with Rear Auxiliary Controls)
