Electrical Diagrams

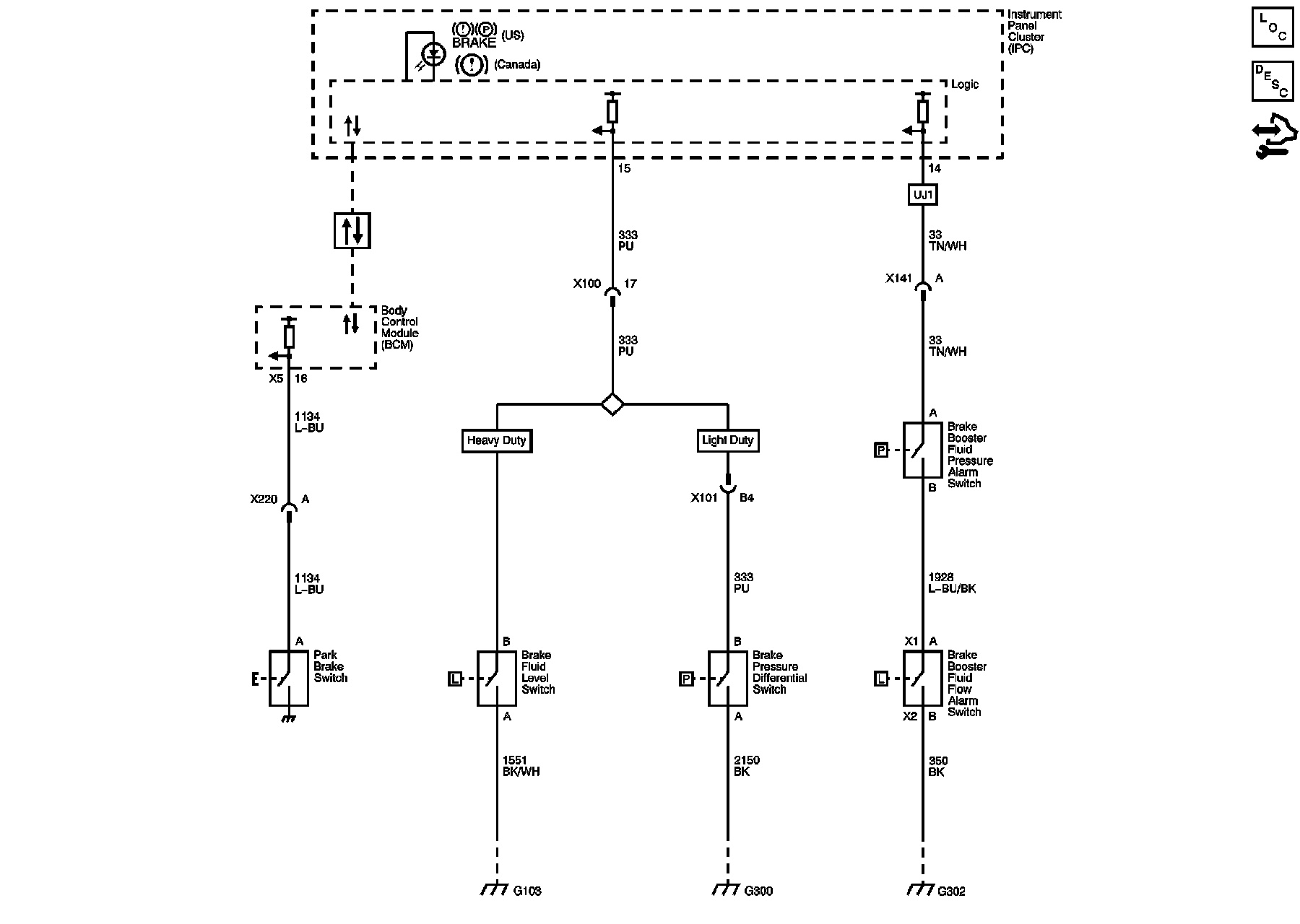

Hydraulic Brake Schematics

Hydraulic Brake





G103, G104, G105 and G106
G300, G301, G304, and G305
