Engine Electrical ECM
DTC P0562 (ECM)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0562
-
System Voltage Low

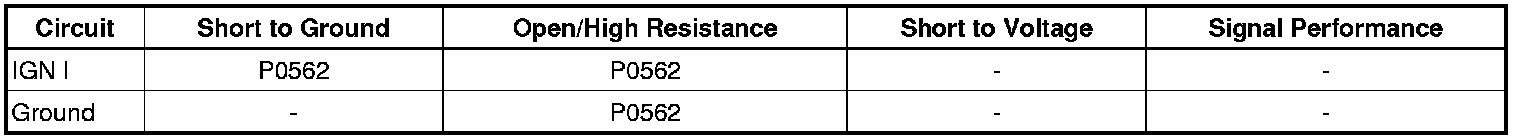

Diagnostic Fault Information
Circuit/System Description
The engine control module (ECM) monitors the system voltage to ensure that the voltage stays within the proper range. Damage to components, and incorrect data may occur when the voltage is out of range.
Conditions for Running the DTC
* The vehicle speed is above 8 km/h (5 mph).
* The system voltage is between 9.5-18 V.
Conditions for Setting the DTC
The ECM detects a system voltage below 10 V.
Action Taken When the DTC Sets
* The instrument panel cluster (IPC) illuminates the charge indicator.
* The driver information center (DIC) displays the SERVICE BATTERY CHARGING SYSTEM warning message.
Conditions for Clearing the DTC
DTC P0562 is a C type DTC.
Diagnostic Aids
* A low voltage DTC in multiple modules indicates a concern in the charging system.
* A low voltage value in multiple modules indicates a concern in the charging system.
* Inspect the ECM ground connection, to verify that it is clean tight.
Reference Information
Schematic Reference
* Engine Controls Schematics [1][2]Electrical Diagrams for the 4.3L engine
* Engine Controls Schematics [1][2]Electrical Diagrams for V8 gas engines
* Engine Controls Schematics [1][2]Electrical Diagrams for the 6.6L engine
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Description and Operation
Charging System Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Engine running measure and record the voltage at the battery terminals. Verify that the battery voltage is 12.6-15.5 V.
• If the battery voltage is not within the specified range, refer to Charging System Test Testing and Inspection.
2. Observe the scan tool ECM Ignition 1 Signal parameter. The reading should be between 12.6 and 15.0 V.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connectors at the ECM.
2. Ignition OFF and scan tool disconnected, open and close the driver door, and wait 1 minute. Test for less than 5 ohms between the ground circuit terminals listed below and ground:
* 4.3L terminal 73 X2.
* V8 gas engines terminal 73 X1.
* 6.6L terminals 2-4 and 6 X2.
• If greater than the specified range, test the ground circuit(s) for an open/high resistance.
3. Verify that a test lamp illuminates between the B+ circuit terminals listed below and ground.
* 4.3L terminals 19 and 73 X1.
* V8 gas engines X1 terminals 19 and 47 X1.
* 6.6L terminal 77 X1 and terminals 1-3-5 X2.
• If the test lamp does not illuminate , test the Ignition circuits for a short to ground or an open/high resistance.
4. If all circuits test normal, replace the ECM.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
Control Module References Control Module References for ECM replacement, programming and setup
