P0128
DTC P0128
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0128
- Engine Coolant Temperature (ECT) Below Thermostat Regulating Temperature

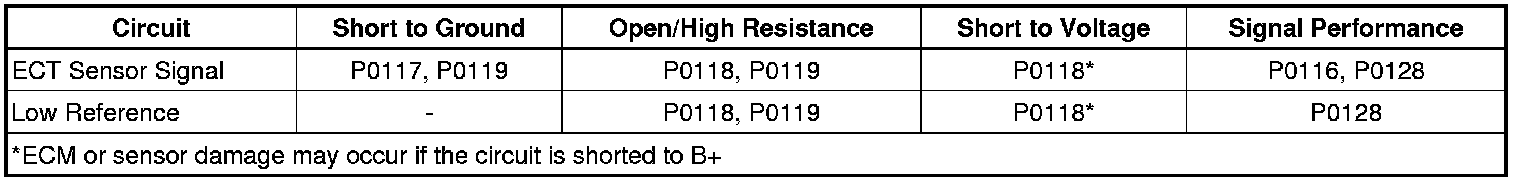

Diagnostic Fault Information

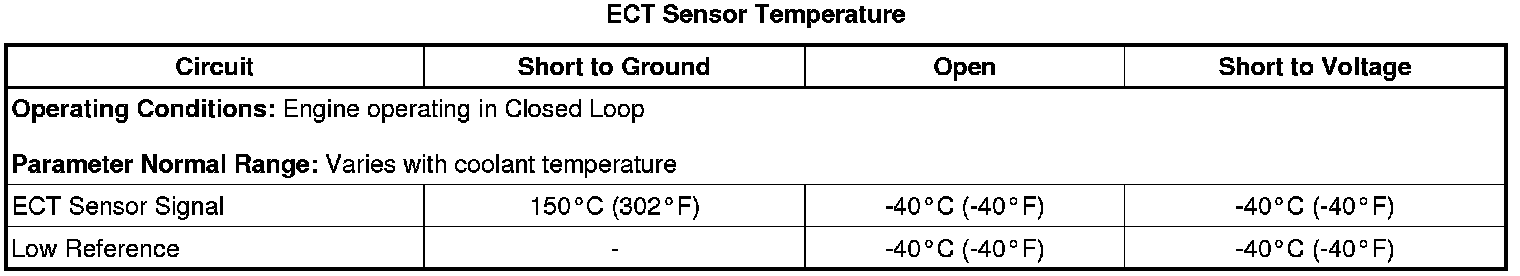

Typical Scan Tool Data
Circuit/System Description
The engine coolant temperature (ECT) sensor is a variable resistor that measures the temperature of the engine coolant. The engine control module (ECM) supplies 5 V to the ECT sensor signal circuit and supplies a ground to the low reference circuit.
The purpose of this diagnostic is to analyze the performance of the thermostat by using the ECT sensor to determine if the engine coolant will increase at the correct rate, and also to meet the calibrated target temperatures under various operating conditions.
The ECM uses the start-up ECT and the start-up intake air temperature (IAT) to begin the diagnostic calculation. The air flow into the engine is accumulated, and vehicle speed, distance, and engine run time are also factored in to determine if the ECT does increase normally and reach the calibrated target temperatures.
Conditions for Running the DTC
* DTCs P0068, P0101, P0102, P0103, P0106, P0107, P0108, P0111, P0112, P0113, P0116, P0117, P0118, P0121, P0122, P0123, P0223, P0502, P0503, P1516, P2101, P2135 are not set.
* The start-up IAT is warmer than -7°C (+19°F).
* The start-up ECT is colder than 70°C (158°F), when the IAT is above 10°C (50°F).
OR
* The start-up ECT is colder than 50°C (122°F), when the IAT is below 10°C (50°F).
* The engine OFF time is greater than 30 min.
* The engine run time is between 90 s and 22 min.
* The vehicle has traveled greater than 2.4 kilometers (1.5 miles) at greater than 8 km/h (5 mph).
* The accumulated airflow is between 20-75 g/s, with the minimum average airflow greater than 10 g/s.
* The fuel ethanol percentage is less than 87%.
* This DTC runs once per ignition cycle when the above conditions are met.
Conditions for Setting the DTC
* The ECM detects that the minimum ECT of 75°C (167°F) has not been met, when the IAT is greater than 10°C (50°F).
OR
* The ECM detects that the minimum ECT of 55°C (131°F) has not been met, when the IAT is less than 10°C (50°F).
Action Taken When the DTC Sets
DTC P0128 is a Type B DTC.
Conditions for Clearing the MIL/DTC
DTC P0128 is a Type B DTC.
Diagnostic Aids
* DTC P0128 occurring with insufficient vehicle interior heating is an indication of improper thermostat operation.
* DTC P0128 occurring causes the Engine Coolant Temperature Gage to default to cold.
* Inspect the ECT sensor terminals and the ECT harness connector for corrosion. This condition results in a greater voltage on the ECT sensor signal circuit, which is interpreted by the ECM as a colder ECT.
* This diagnostic runs in a specific range. Measure and record the resistance of the ECT sensor at various ambient temperatures between -7 to +80°C (+19 to +176°F), then compare those measurements to the Temperature Versus Resistance Temperature Versus Resistance table.
* A slight to moderate resistance in the ECT sensor signal circuit or low reference circuit will affect this diagnostic. This condition results in a greater voltage on the ECT sensor signal circuit, which is interpreted by the ECM as a colder ECT.
Reference Information
Schematic Reference
Engine Controls Schematics [1][2]Electrical Diagrams
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Ignition OFF, inspect the cooling system surge tank for the proper coolant level. Refer to Cooling System Leak Testing Component Tests and General Diagnostics and Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (Vac N Fill) Cooling System Draining and Filling (Vac N Fill)Cooling System Draining and Filling (Static Fill Diesel) Cooling System Draining and Filling (Static Fill Diesel).
Note: A critical analysis of the operation of the thermostat is necessary to properly diagnose this DTC.
2. Verify the proper heat range and the operation of the thermostat. Refer to Thermostat Diagnosis Thermostat Diagnosis.
3. Ignition ON, observe the scan tool IAT Sensor and ECT Sensor parameters. The ECT, IAT, and ambient temperatures should be within 6°C (11°F) of each other.
4. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the B34 engine coolant temperature sensor.
2. Ignition OFF and all vehicle systems OFF. It may take up to 2 minutes for all vehicle systems to power down. Test for less than 5 ohms between the low reference circuit terminal A and ground.
• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the K20 engine control module.
3. Ignition ON, verify the scan tool ECT Sensor parameter is less than -40°C (-40°F).
• If warmer than the specified range, test the signal circuit terminal B for a short to ground. If the circuit tests normal, replace the K20 engine control module.
4. Install a 3 A fused jumper wire between the signal circuit terminal B and the low reference circuit terminal A. Verify the scan tool ECT Sensor parameter is warmer than 149°C (300°F).
• If colder than the specified range, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K20 engine control module.
5. If all circuits test normal, test or replace the B34 engine coolant temperature sensor.
Component Testing
Measure and record the resistance of the ECT sensor at various ambient temperatures, then compare those measurements to the Temperature Versus Resistance Temperature Versus Resistance table.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Engine Coolant Temperature Sensor Replacement Engine Coolant Temperature Sensor Replacement
* Control Module References Control Module References for ECM replacement, setup, and programming
