Antilock Brake System (With JL9)

DTC C0110 (With JL9)

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC C0110 04

-
Pump Motor Circuit Open Circuit

DTC C0110 61

-
Pump Motor Circuit Actuator Stuck

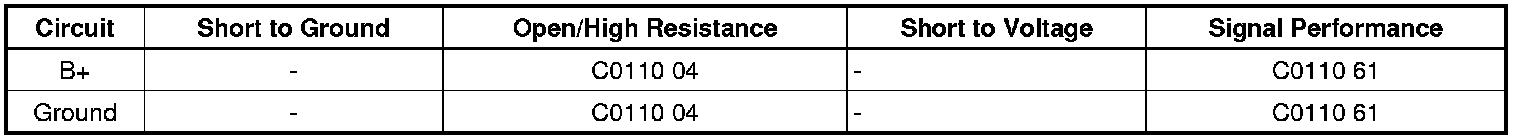

Diagnostic Fault Information






Circuit/System Description

The pump motor is an integral part of the brake pressure modulator valve (BPMV), while the pump motor relay is integral to the electronic brake control module (EBCM). The pump motor relay is not engaged during normal system operation. When antilock brake system (ABS) or traction control system (TCS) operation is required the EBCM activates the pump motor relay and ground circuit is provided to the pump motor.

Conditions for Running the DTC

* Ignition ON.

* Initialization is complete.

Conditions for Setting the DTC

* The EBCM detects a short to battery positive, or open ground circuit, and a continuously on or off motor.

* The pump motor continues to rotate briefly after activation creating a feedback voltage. The EBCM sets the code if the measured feedback voltage indicates a binding or stalled pump motor.

Action Taken When the DTC Sets

* The EBCM disables the ABS/TCS/VSES for the duration of the ignition cycle.

* The ABS indicator illuminates.

* The Traction Control and VSES indicators illuminate.

* The Traction Control and Stabilitrak displayed on the DIC.

Conditions for Clearing the DTC

* The condition for the DTC is no longer present.

* The EBCM clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Reference Information

Schematic Reference

Antilock Brake System Schematics [1][2]Antilock Brakes / Traction Control Systems

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

ABS Description and Operation Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit Verification

Ignition ON, perform the Pump Motor Test with a scan tool and listen/feel the Pump Motor turn ON and OFF.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the EBCM.

2. Test for less than 5 ohms between the ground circuits listed below and ground.

* Terminal 11

* Terminal 28

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Ignition ON, verify that a test lamp illuminates between the B+ circuits listed below and ground.

* Terminal 1

* Terminal 18

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the B+ circuit fuse is open, replace the BPMV.

4. If all circuits test normal, replace the BPMV and verify DTC does not reset. If the DTC resets, replace the EBCM.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Brake Pressure Modulator Valve Replacement (Without JL4) Brake Pressure Modulator Valve Replacement (Without JL4)Brake Pressure Modulator Valve Replacement (With JL4) Brake Pressure Modulator Valve Replacement (With JL4)

* Control Module References Control Module References for EBCM replacement, programming and setup
