B3715

DTC B3715

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3715 00

-
Front Wiper Relay Drive Circuit

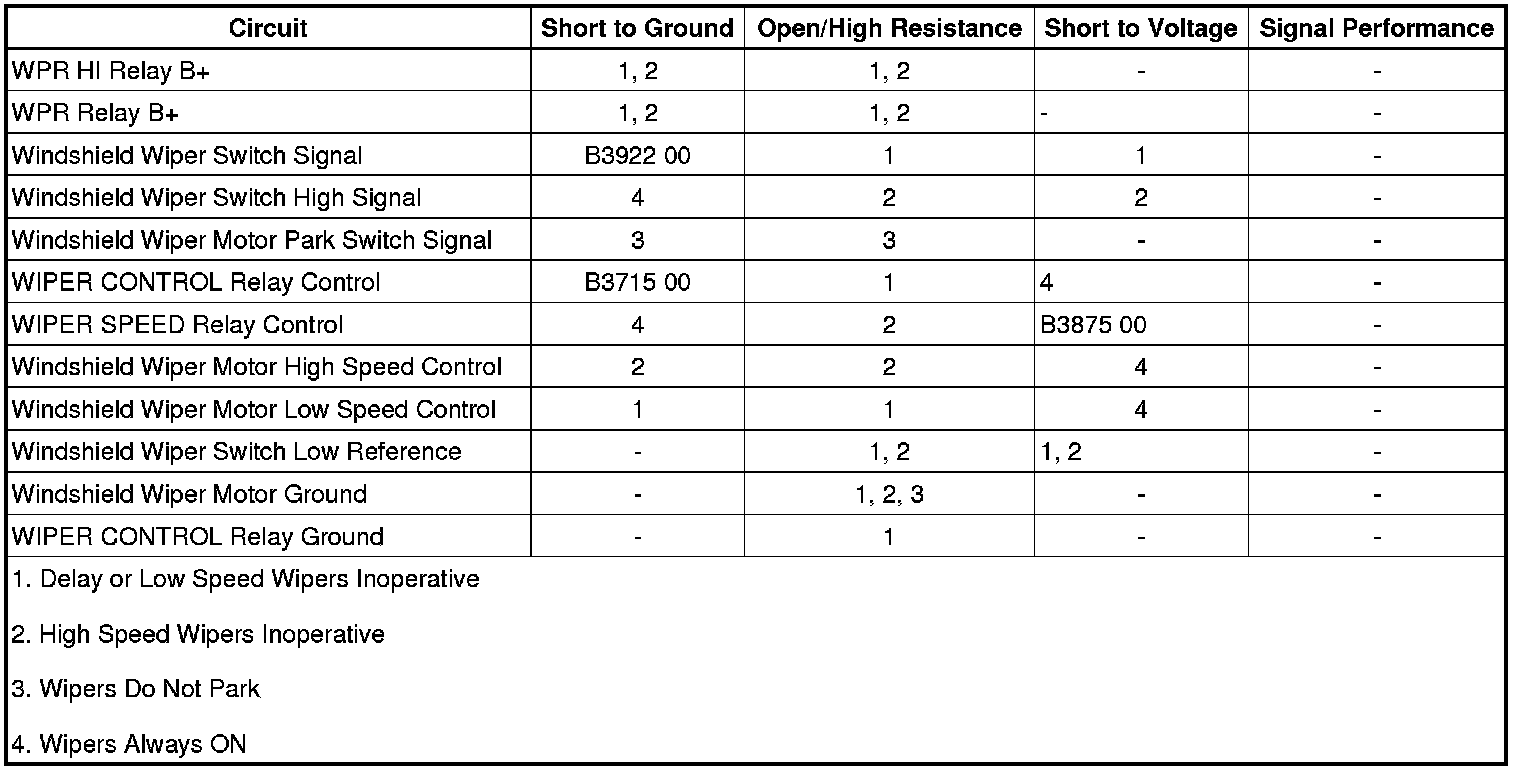

Diagnostic Fault Information






Circuit/System Description

The body control module (BCM) monitors the control circuit of the wiper relay. The voltage level should be low while the wiper relay is de-energized and near system voltage when the relay is energized. After the BCM receives a low, intermittent, or mist signal from the wiper/washer switch, it responds by applying battery voltage through the wiper relay control circuit to the coil side of the relay, energizing the WIPER Relay.

Conditions for Running the DTC

The BCM output is actively being requested.

Conditions for Setting the DTC

The BCM detects a short to ground in the wiper relay control circuit.

Action Taken When the DTC Sets

The BCM will not activate the output.

Conditions for Clearing the DTC

* The current DTC will become history when the request for the output is removed or when the condition for setting the fault is corrected.

* The history DTC will clear after 50 consecutive ignition cycles without a fault present.

Reference Information

Schematic Reference

Wiper/Washer Schematics Electrical Diagrams

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

Wiper/Washer System Description and Operation (Wiper and Washers) Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the X5 harness connector at the BCM.

2. Ignition ON, verify that the low speed wipers are not on.

• If the low speed wipers are on, test the WPR relay control circuit terminal 20 for a short to voltage. If the circuit tests normal, replace the underhood fuse block.

3. Install a 10 A fused jumper wire between the WPR relay control circuit terminal 20 and B+. Verify the low speed wipers are on.

• If the low speed wipers are not on, test the WPR relay control circuit for an open/high resistance or short to ground. If the circuit tests normal replace the underhood fuse block.

4. If all circuits test normal, replace the BCM.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Underhood Electrical Center or Junction Block Replacement Underhood Electrical Center or Junction Block Replacement

* Control Module References Control Module References for BCM replacement, programming and setup
