DTC B2615 (with YF7)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B2615 00
-
Passenger Compartment Dimming 2 Circuit

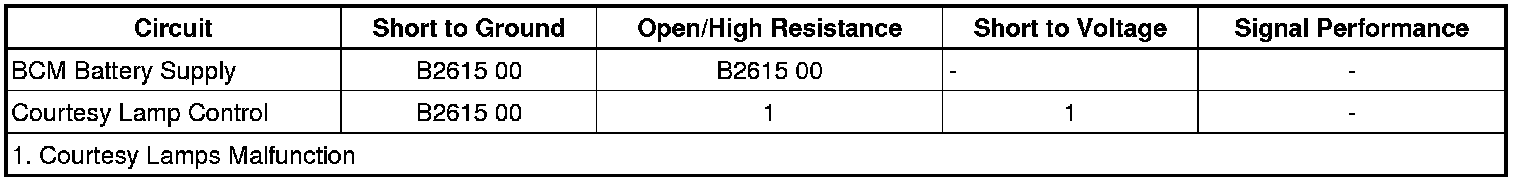

Diagnostic Fault Information
Circuit/System Description
Battery voltage for the courtesy lamps is supplied at all times, from the BCM 3 Fuse located in the underhood fuse block, to the body control module (BCM). When the BCM receives a signal to command the courtesy lamps ON, it applies voltage through the courtesy lamps relay control circuit in order to energize the relay. With the relay energized, battery voltage is applied through switch side of the relay and the courtesy lamp supply voltage circuits to the courtesy lamps listed below.
* Front dome lamp
* Rear dome lamp
Conditions for Running the DTC
* Ignition ON.
* Courtesy lamps ON.
Conditions for Setting the DTC
The BCM detects a short to ground on the courtesy lamp PCB relay control circuit.
Action Taken When the DTC Sets
The BCM will deactivate the courtesy lamps.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
Interior Lights Dimming Schematics Interior Lights Dimming Schematics
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Description and Operation
Interior Lighting Systems Description and Operation Interior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
Ignition ON, command the Courtesy Lamps ON and OFF with the scan tool. The interior courtesy lamps should turn ON and OFF when changing between commanded states.
Circuit/System Testing
Note:
Each incandescent dimming lighting component may need to be disconnected to isolate a short to voltage or short to ground. Use the schematic to identify the following:
* Incandescent dimming lighting components the vehicle is equipped with.
* Component locations on the incandescent dimming control circuit
* Each component's control and ground circuit terminals
1. Ignition OFF, disconnect the harness connector at any component with inoperative incandescent dimming lighting.
2. Ignition OFF, scan tool disconnected, interior lamps OFF, doors CLOSED, test for less than 5 ohms between the ground circuit and ground.
• If greater than the specified value, test the ground circuit for an open/high resistance.
3. Connect a test lamp between the control circuit and ground.
4. Command the Incandescent Dimming Control ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.
• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the BCM.
• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the BCM.
5. If all circuits test normal, test or replace the component with the inoperative incandescent dimming lighting.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Body Wiring Harness Junction Block Replacement Body Wiring Harness Junction Block Replacement
* Control Module References Control Module References for BCM replacement, setup, and programming
