B2610

DTC B2610

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2610 00

-
Passenger Compartment Dimming 1 Circuit

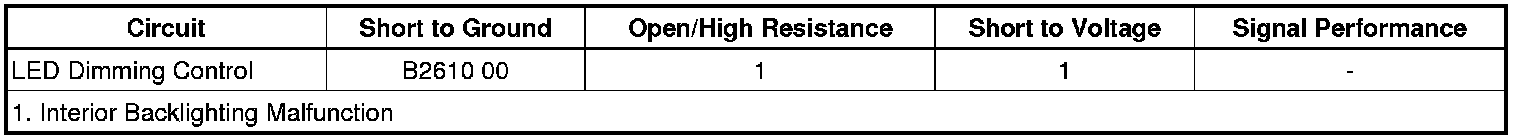

Diagnostic Fault Information






Circuit/System Description

The body control module (BCM) supplies a voltage reference through the instrument panel (I/P) dimming voltage reference circuit to the interior lamp dimmer switch, which is part of the headlamp switch. When the dimmer switch is placed in a desired brightness position, reference voltage is applied through the dimmer switch rheostat and the I/P lamps dimmer switch signal circuit to the BCM. The BCM interprets this voltage signal, then applies a pulse width modulated (PWM) voltage through the LED dimming control circuit illuminating the components listed below:

* Radio

* Inflatable Restraint I/P Module Disable Switch

* Driver Information Center (DIC) Switch

* Steering Wheel Control Switches

Conditions for Running the DTC

* Ignition ON.

* The headlamps or park lamps are ON.

Conditions for Setting the DTC

The BCM detects a short to ground on the LED dimming control circuit.

Action Taken When the DTC Sets

The BCM does not attempt to illuminate the LED lamps.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Interior Lights Dimming Schematics Interior Lights Dimming Schematics

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

Interior Lighting Systems Description and Operation Interior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

Ignition ON, cover the ambient light sensor, adjust the interior lamp dimming switch from dim to full bright. The LED lamps should dim and then become full bright.

Circuit/System Testing

Note:
Each incandescent dimming lighting component may need to be disconnected to isolate a short to voltage or short to ground. Use the schematic to identify the following:

* Incandescent dimming lighting components the vehicle is equipped with.

* Component locations on the incandescent dimming control circuit

* Each component's control and ground circuit terminals

1. Ignition OFF, disconnect the harness connector at any component with inoperative incandescent dimming lighting.

2. Ignition OFF, scan tool disconnected, interior lamps OFF, doors CLOSED, test for less than 5 ohms between the ground circuit and ground.

• If greater than the specified value, test the ground circuit for an open/high resistance.

3. Connect a test lamp between the control circuit and ground.

4. Command the Incandescent Dimming Control ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the BCM.

• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the BCM.

5. If all circuits test normal, test or replace the component with the inoperative incandescent dimming lighting.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

Control Module References Control Module References for BCM or radio replacement, setup, and programming
